Technical Specifications
Overview

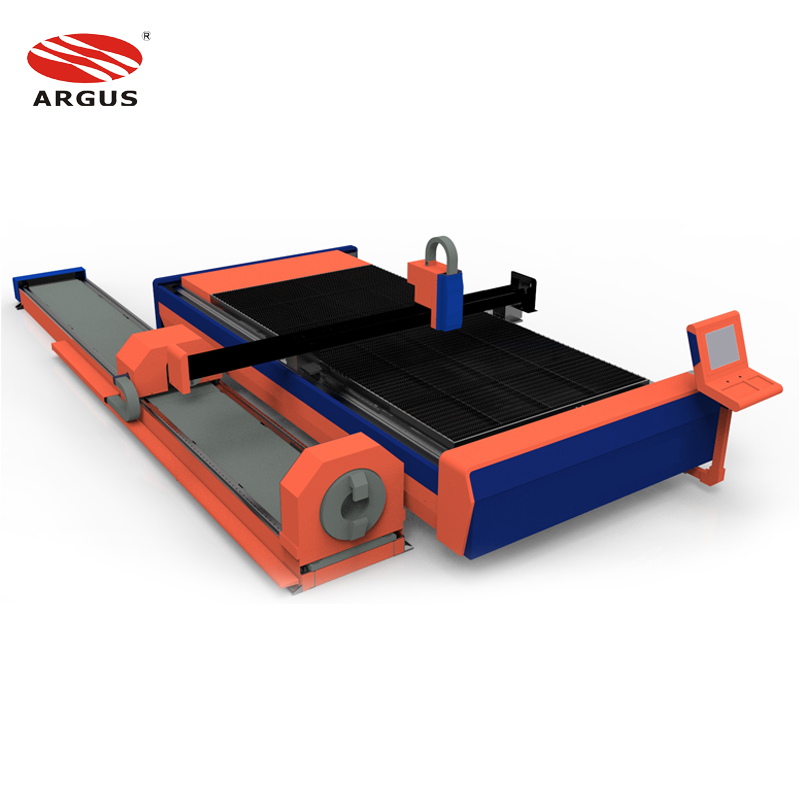

High-Performance Fiber Laser Cutting System
This gantry-style fiber laser cutting machine is engineered for precision processing of metal sheets and tubes. Featuring a dual-side driven structure and robust steel frame, it ensures high dynamic performance, reliability, and efficient cutting across a wide range of materials including stainless steel, aluminum, and copper. The system integrates advanced optical lens technology and dual-pressure gas control to deliver smooth, accurate results for industrial applications.
Performance Metrics
Key Performance Indicators
60 m/min
Max Positioning Speed
0.05 mm/mm
Positioning Accuracy
0.03 mm/mm
Repeatability
Technical Specifications
Laser Power Options
- 500W
- 800W
- 1000W
- 2000W (Standard)
- Up to 3000W (Optional)
- Laser Source Type
- IPG FiberCoherent FiberRaycus Fiber
- Motion Range (X, Y)
- 3000 x 1500 mm
- Control System
- Cypcut, Smart Nest
- Supported File Formats
- PLTDXFBMPAIDSTDWG
Component Breakdown
Key Hardware Components
| Component | Brand/Origin |
|---|---|
| Motor (X, Y, Z) | YASKAWA |
| Linear Guide Rail | HIWIN |
| Reducer | APEX |
| Laser Head | AU3TECH |
| Water Chiller | HANLI |
Features & Capabilities
Gas Control System
High Pressure AirNitrogenOxygen
- Safety Standard
- Yes
