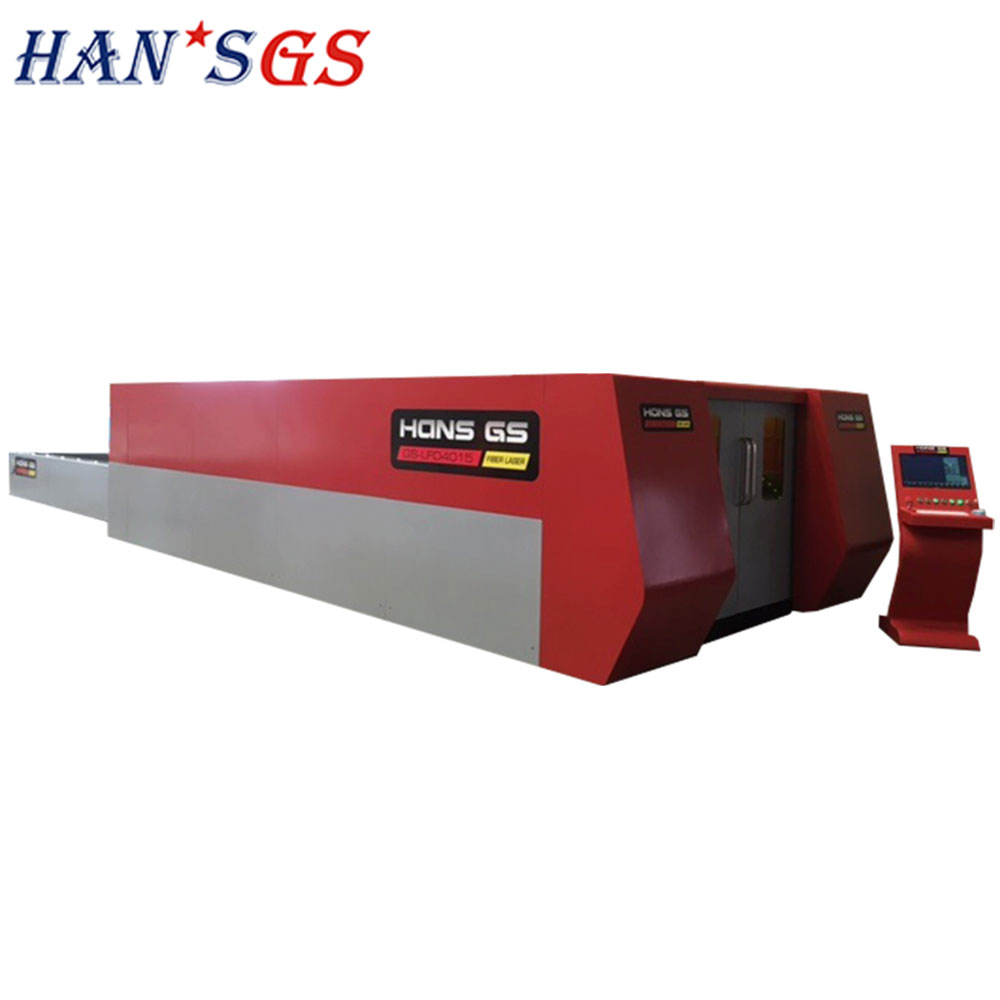

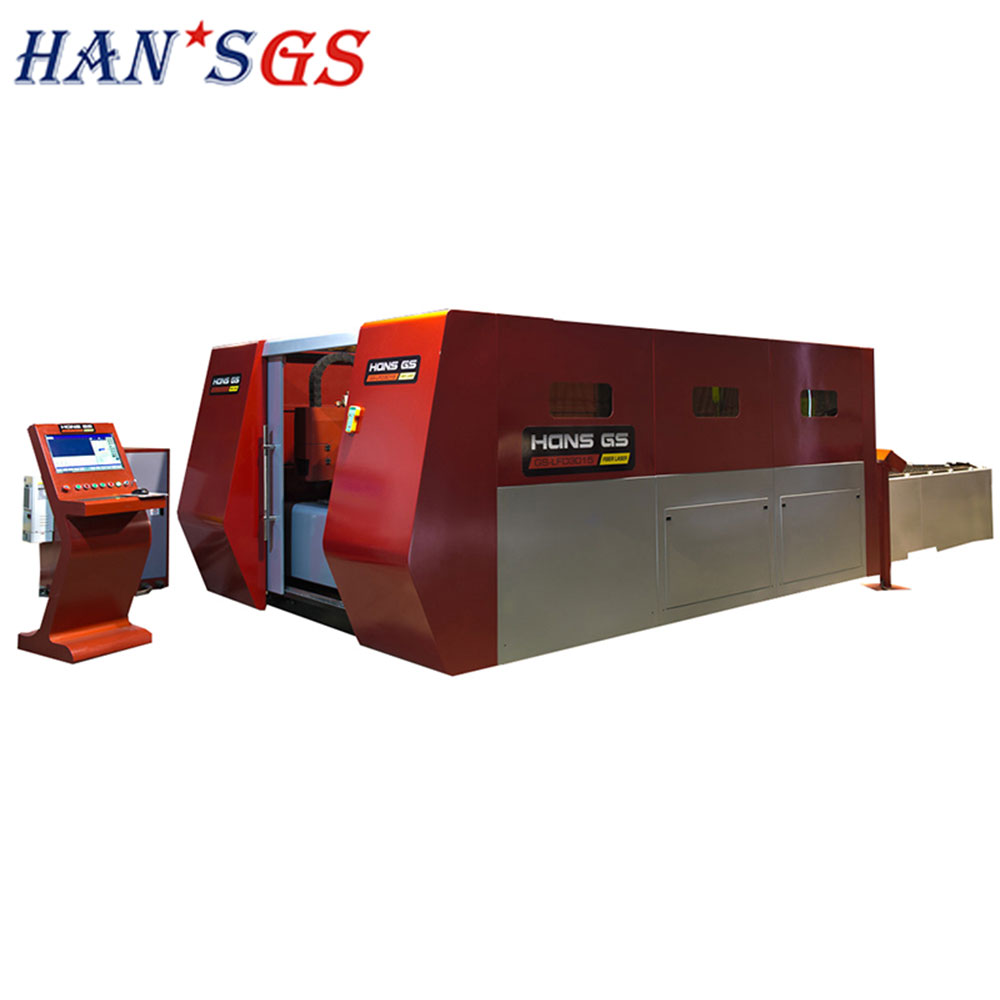

1000W-3000W Fiber Laser Cutting Machine with Exchange Table
This fiber laser cutting machine can cut any design graphic on a board with high speed and precision. It is ten times faster than wire cutting, which greatly improves processing efficiency and saves material.
Technical Specifications
Overview
High-Efficiency Fiber Laser Cutting Solution
This fiber laser cutting machine is designed for high-speed, high-precision processing of metal boards and shaped materials. Featuring an exchange table system, it significantly reduces loading times to maximize production efficiency. The fully enclosed design ensures operator safety while the advanced fiber laser source provides superior stability for demanding industrial applications.
Performance Metrics
Key Performance Metrics
3,000 W
Max Power
4,000 mm
Cutting Length
1,500 mm
Cutting Width
Technical Specifications
- Model Identifier
- GS-LFDS4015
- Laser Source Output
- 1000W - 3000W
- Effective Cutting Area
- 4000mm x 1500mm
Core Features
Safety & Protection

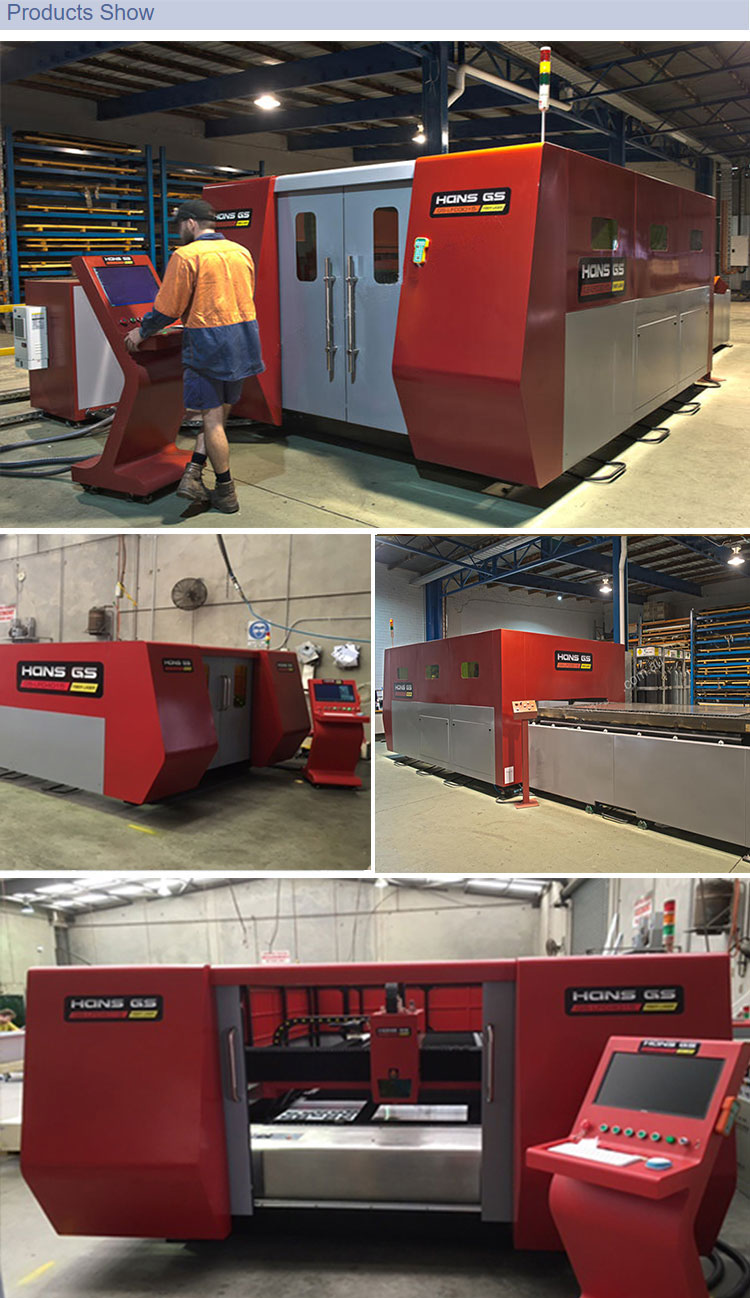

- Fully enclosed design for radiation protection
- Invisible laser radiation shielding
- Machine tool movement protection
Efficiency Enhancements
- Switching exchange table for rapid loading
- Drawer-style receiving tray for debris collection
- Longmen double drive structure
- High damping bed for stability
Material Compatibility
- Supported Materials
- Flat Metal SheetsRound PipeSquare SteelFlat IronSquare TubeShaped Materials
Operational Advantages
Processing Advantages
- Ten times faster than wire cutting
- No follow-up processing required
- Visual discharge and close fit for material saving
- High-speed acceleration and rigidity
