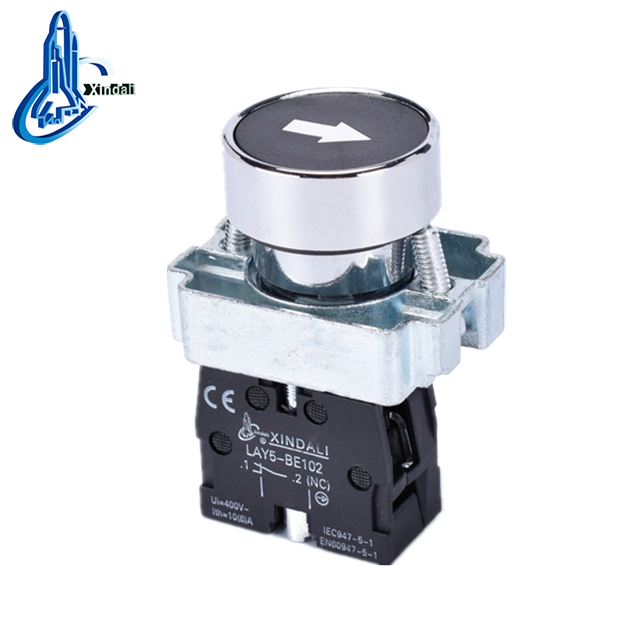

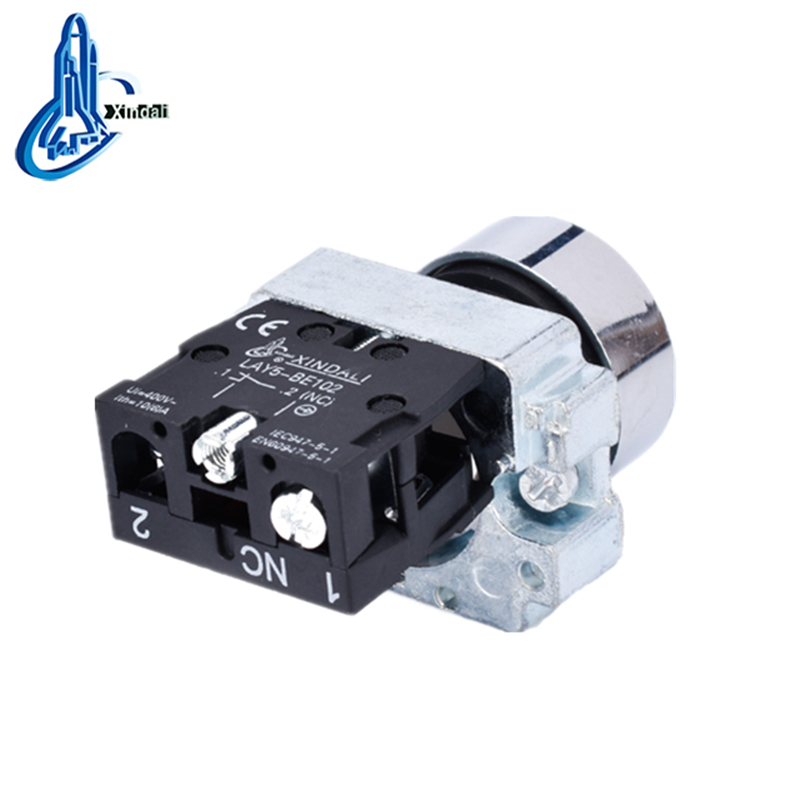

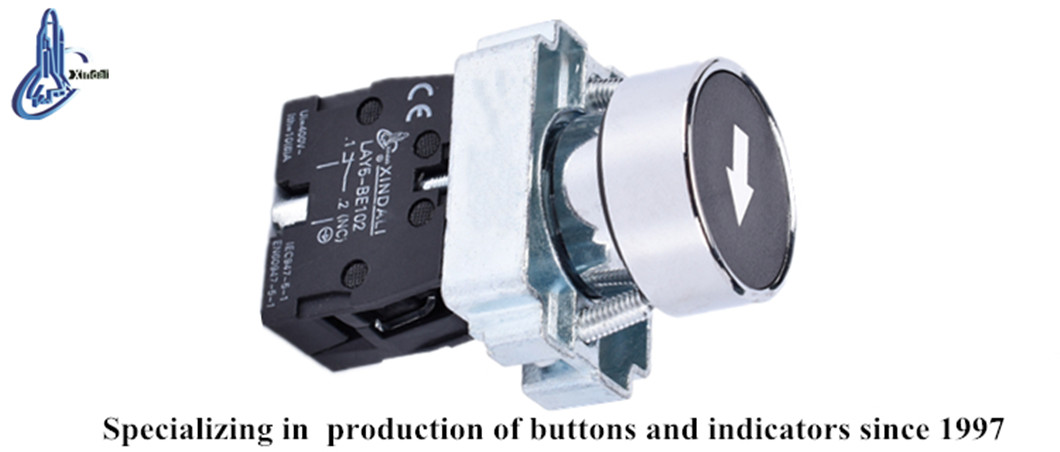

Metal Electric Push Button Switch with Arrow Symbol
This metal electric switch features a push button with an arrow symbol. It is designed for controlling circuits in AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial Push Button Switch
This metal electric push button switch is engineered for demanding industrial control circuits, supporting AC voltages up to 660V and DC voltages below 400V. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, it features silver alloy contacts designed to resist electrical erosion. With international compliance including CE, RoHS, and IEC standards, this switch provides reliable signal control and interlocking functionality for machinery and power stations.
Technical Specifications
Electrical Ratings
600 V
Rated Insulation Voltage
10 A
Heating Current
50 MΩ
Insulation Resistance
Durability & Life Cycle
| Metric | Pushbutton | Selector Switch |
|---|---|---|
| Mechanical Life | 1,000,000 cycles | 500,000 cycles |
| Electrical Life | 5,000,000 cycles | 250,000 cycles |
Compliance & Standards
- Certifications
- CERoHSULISO 9001IEC 60947-5-1
Product Design
Construction Materials
- Zinc alloy main body
- High-grade anti-flame plastic
- Special silver alloy contacts
