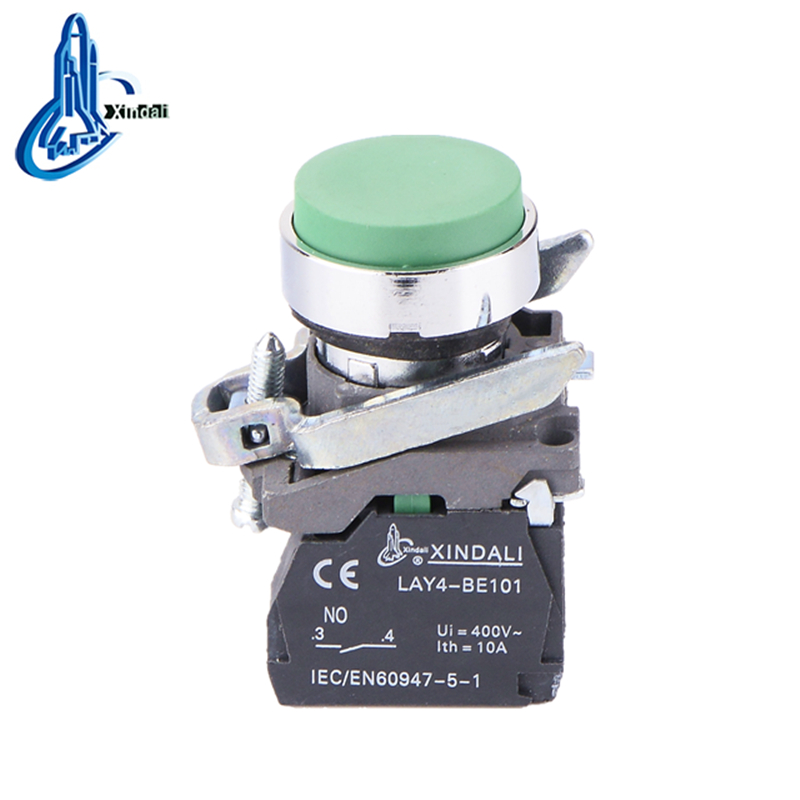

Metal Convex Head Push Button Switch
This metal push button switch features a convex head for easy actuation. It incorporates both normally open (NO) and normally closed (NC) contacts for versatile circuit control.
Technical Specifications
Overview
Industrial Metal Push Button
This high-performance metal convex head push button switch is engineered for demanding industrial control circuits, including elevator panels and heavy-duty machinery. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, it features silver alloy contacts to ensure superior resistance to electrical erosion. The switch is fully compliant with international safety standards, offering reliable signal control and interlocking capabilities for AC and DC voltage systems.
Electrical Ratings
Rated Insulation Voltage
600 V
AC Voltage
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Performance
Mechanical Life
| Type | Cycles |
|---|---|
| Pushbutton | 1,000,000 |
| Selector Switch | 500,000 |
Electrical Life
| Type | Cycles |
|---|---|
| Pushbutton | 500,000 |
| Selector Switch | 250,000 |
Physical & Material

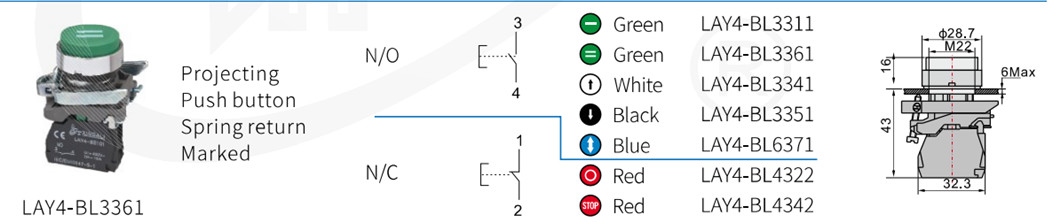

Mounting Dimensions
- Mounting Hole: M22
- Diameter: 28.7mm
- Total Height: 43mm
- Max Panel Thickness: 6mm
- Construction Materials
- Zinc AlloyAnti-flame PlasticSilver Alloy Contacts
Compliance
Certifications & Standards
CEISO9001RoHSULIEC60947-5-1GB/T14048.1
