Manual Concrete Block Making Machine
This manual concrete block machine is designed for producing various types of concrete blocks, bricks, and pavers. It is suitable for small to medium-scale production, offering versatility in block sizes and shapes.
Technical Specifications
Overview

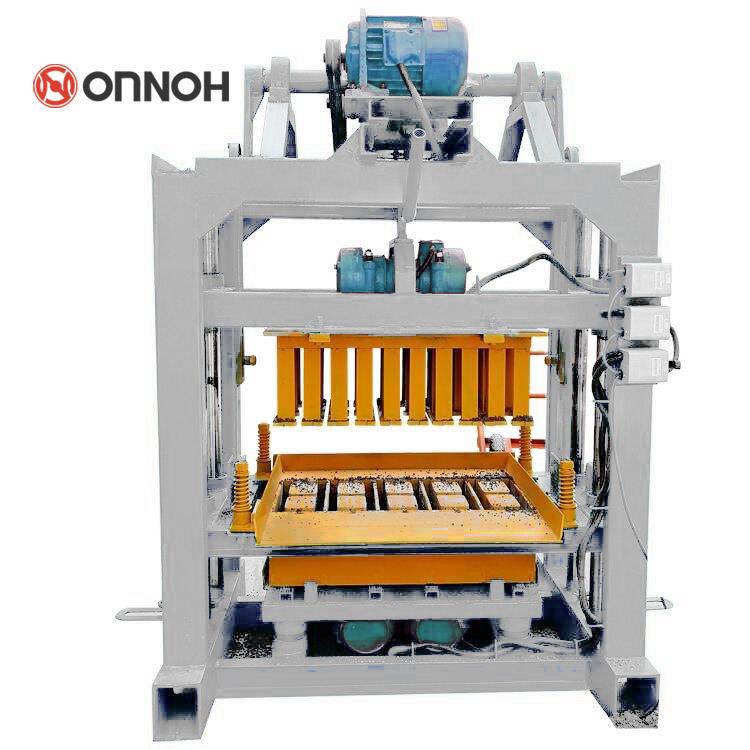

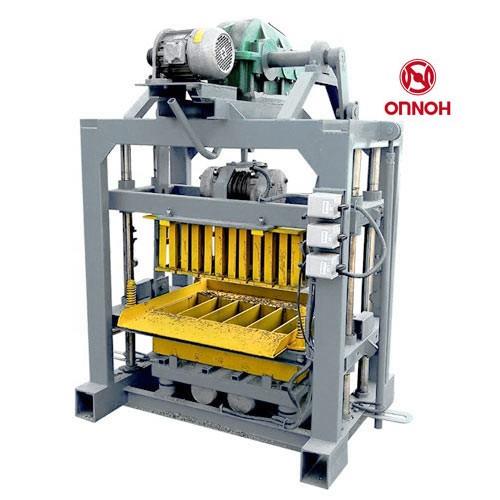

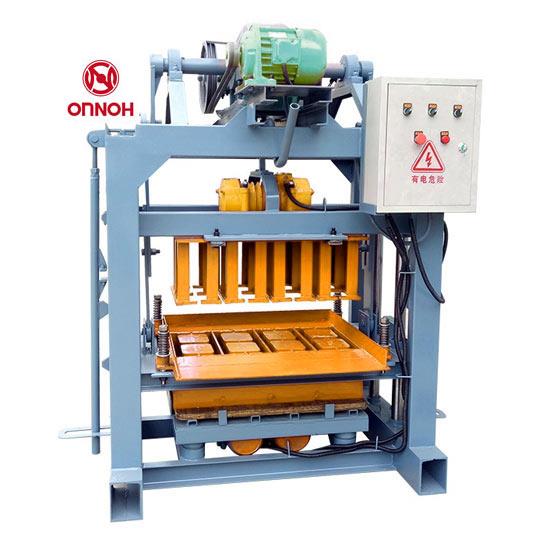

Manual Concrete Block Making Machine
This manual block making machine is a best-selling, reliable solution designed for small-scale brick production. It features a robust, thickened square steel frame and wear-resistant inner sleeves to ensure durability and precise guide column positioning. The machine is equipped with a high-quality reducer and an electric vibration system to ensure uniform compaction, making it an ideal choice for construction sites with limited infrastructure.
Technical Specifications
- Host Machine Dimensions
- 1350 x 1460 x 1800 mm
- Weight
- 1.8 T
- Rated Voltage
- 380 V
- Pallet Size
- 850 x 450 x 30 mm
Performance Metrics
Key Performance Indicators
30 KN
Vibration Force
2,800 r/min
Vibration Frequency
16.3 KW
Total Capacity
- Molding Time
- 30-40 seconds
- Vibration Form
- Platform and mold vibration

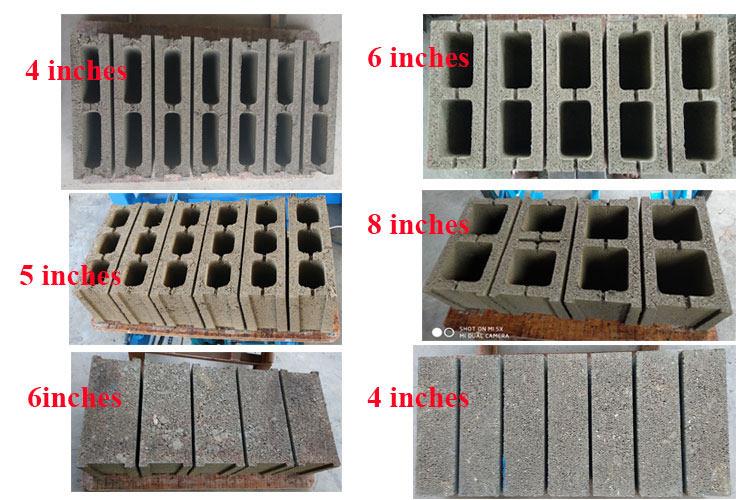

Production Capacity
Output Capacity by Block Type
| Block Type | Size (mm) | Pcs/Mold | Pcs/Hour |
|---|---|---|---|
| Hollow block | 400*150*200 | 5 | 450 |
| Hollow block | 400*200*200 | 4 | 360 |
| Hollow block | 400*240*190 | 3 | 270 |

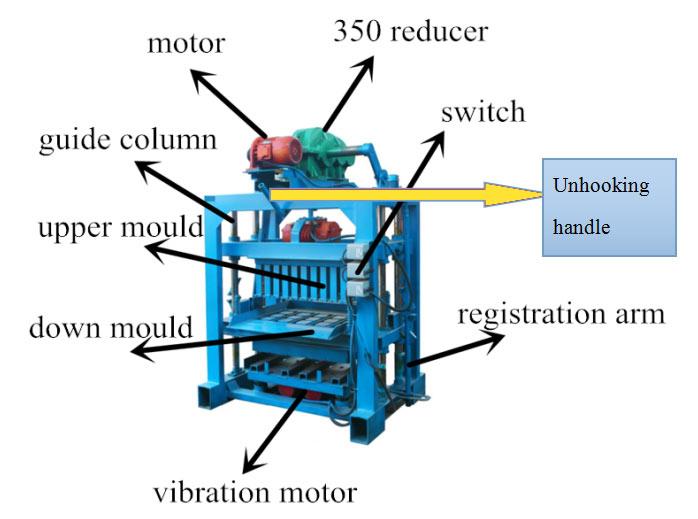

Features
Key Machine Features
- Thickened square steel frame
- Wear-resistant inner sleeves
- Four guide columns for precise alignment
- High-quality reducer
- Electric vibration motor for compaction
- Manual lever operation
