Luffing Tower Crane
The luffing tower crane is designed for projects with limited space, offering variable working radius and lifting capacity. By changing the elevation angle of the boom, it minimizes interference, making it suitable for crowded urban areas.
Technical Specifications
Overview
Versatile Luffing Tower Crane
This luffing tower crane is a reliable and safe lifting solution designed for complex construction projects, particularly in congested urban environments. With flexible jib configurations ranging from 25m to 40m and precise luffing control, it adapts easily to various job site requirements. The crane is built to international safety standards, featuring durable hot-dip galvanized components and advanced control systems for optimal performance.
Performance
Lifting Capacity
3 t
Max Capacity (25m radius)
1.5 t
Max Capacity (40m radius)

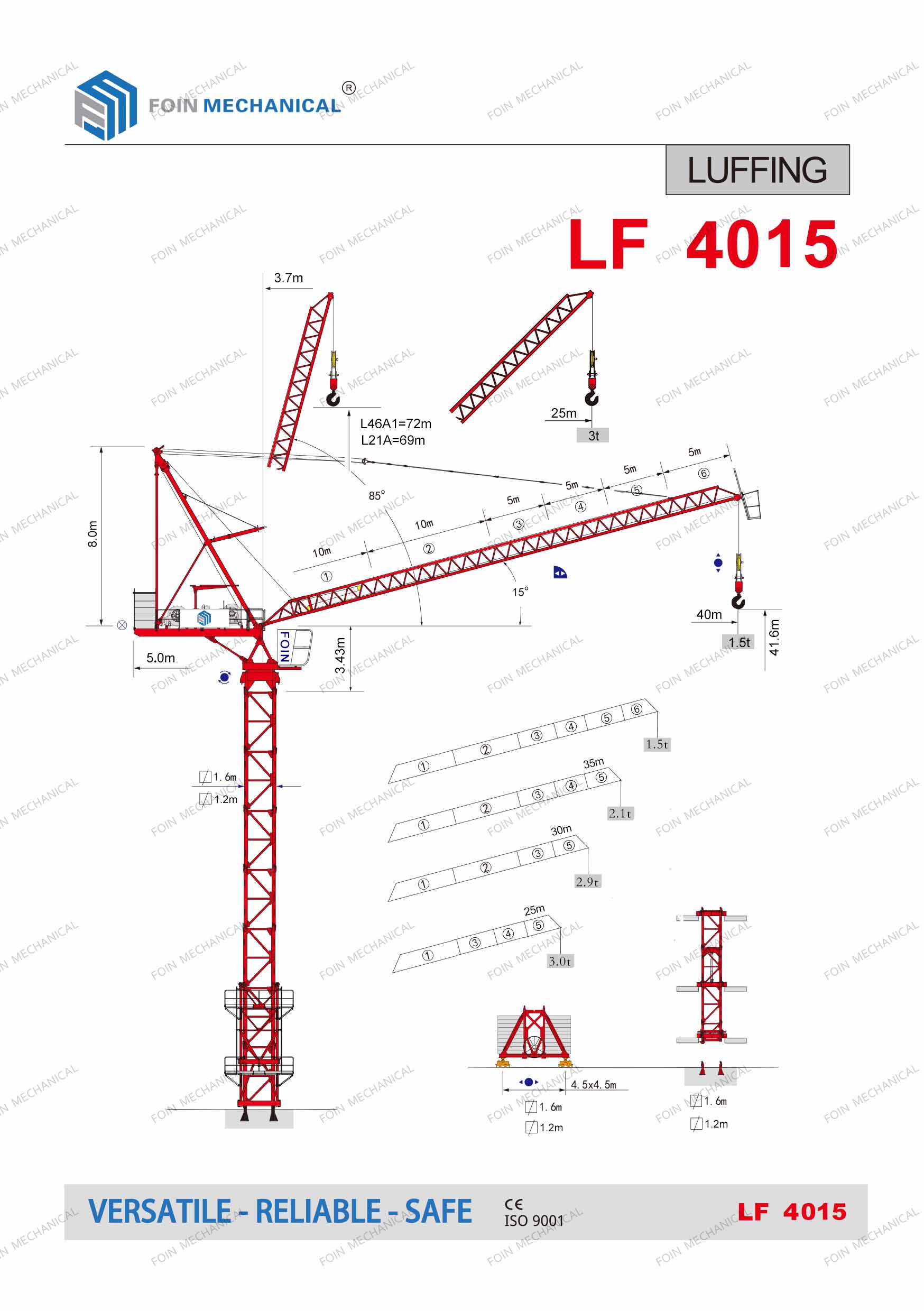

Load Diagram Overview
| Jib Length | Max Load (t) |
|---|---|
| 25m | 3.0 |
| 30m | 3.0 |
| 35m | 2.1 |
| 40m | 1.5 |
- Available Jib Lengths
- 25m30m35m40m
- Maximum Height
- 41.6 m
Technical Specifications
Control System Options
- AI control
- VFD control
- Ordinary speed control
Power Supply Compatibility
- 220V/60Hz
- 380V/55Hz
- 400V/50Hz
- 440V/60Hz
- Finishing & Protection
- UV-resistantWeather-resistant polyurethaneHot-dip galvanized ladders/platforms
- Paint Thickness
- 140 μm
Operational Details

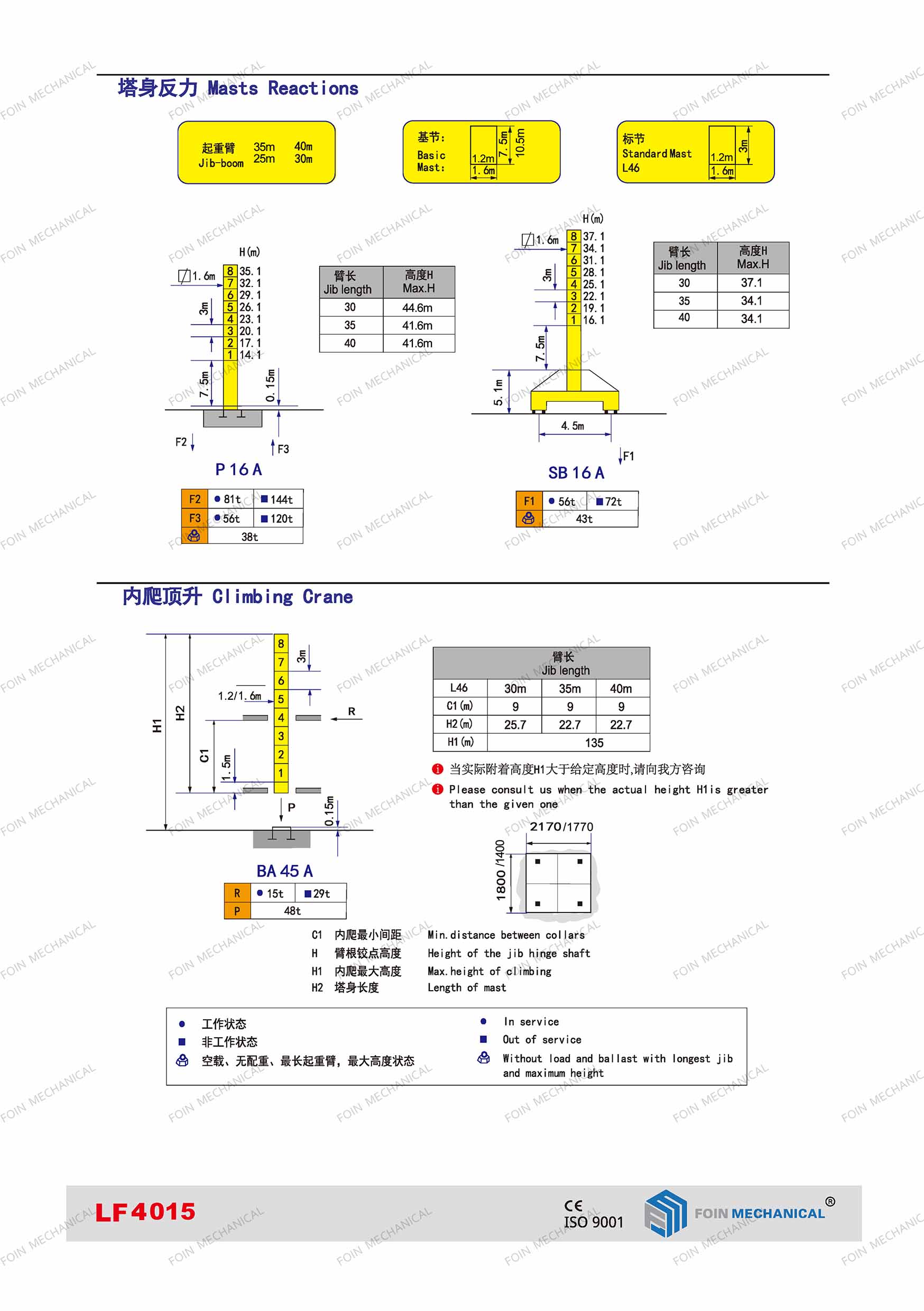

Installation Schemes
- Stationary
- Chassis weight
- Traveling Chassis
- Internal climbing
Compliance & Service
Certifications
CEISOGOSTCU-TR
- Warranty Service
- 16 months
- Minimum Order Quantity
- 1 set
- Delivery Time
- 10–35 days
