Luffing-Jib Tower Crane
This tower crane features an integrated electrical system with error-proof aviation plugs and an intelligent control system. Its modular structure has a high component module rate, and it includes a quick-assembling hoisting jib and counter jib.
Technical Specifications
Overview

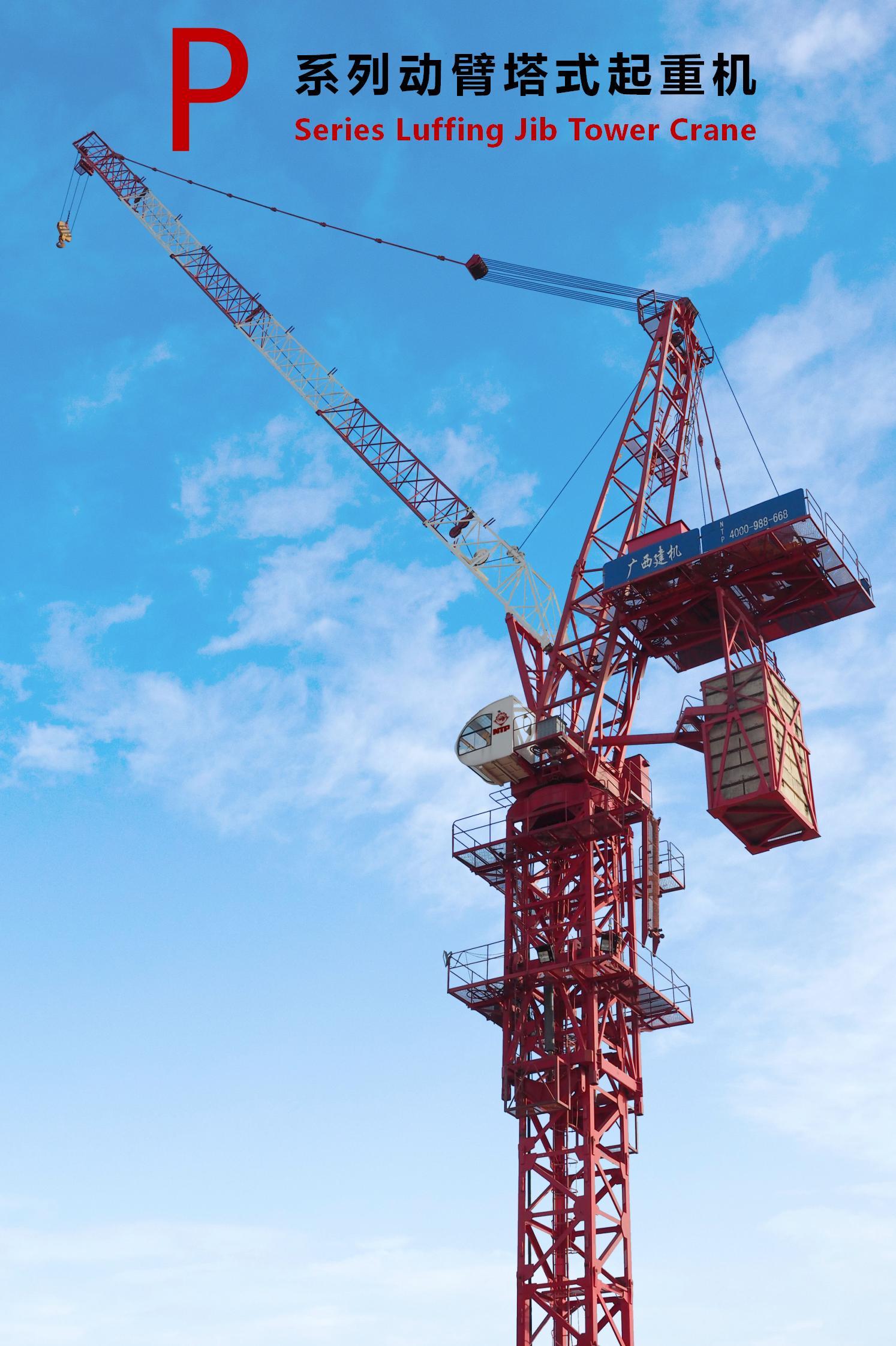

High-Performance Luffing-Jib Tower Crane
This luffing-jib tower crane is engineered for efficient lifting and precise material handling in congested urban construction environments. It features a highly integrated electrical system for plug-and-play installation and intelligent control mechanisms that allow for millimeter-level low-speed positioning. With a modular design that ensures high interchangeability of components, this crane offers both operational safety and versatile adaptability for various high-rise and heavy lifting projects.
Key Features
Design Advantages
- Highly-integrated electrical system harness with error-proof aviation plugs
- Integrated control and monitoring system in the cab
- Modular structure with 80% component interchangeability
- Quick-assembling structure for hoisting and counter jibs
- High standard design with 1.5x static and 1.3x dynamic load coefficients
- Intelligent Control System
- Zero-speed brakeVariable load controlVariable speed controlAnti-shaking protectionAnti-overload protectionAnti-topping protection
Technical Specifications
Model Specifications
| Model | Tower Section (m) | Max Radius (m) | Max Load (t) | Rated Moment (kN·m) |
|---|---|---|---|---|
| P5015-8A | 1.6x1.6x3.0 | 50 | 8 | 1,250 |
| P5023-8A | 1.6x1.6x3.0 | 50 | 8 | 1,500 |
| P5023-10A | 1.6x1.6x3.0 | 50 | 10 | 1,500 |
| P5522-12A | 2.0x2.0x3.0 | 55 | 12 | 1,750 |
Operational Metrics
80 %
Component Commonality
1.5 x
Static Load Coefficient
1.3 x
Dynamic Load Coefficient
