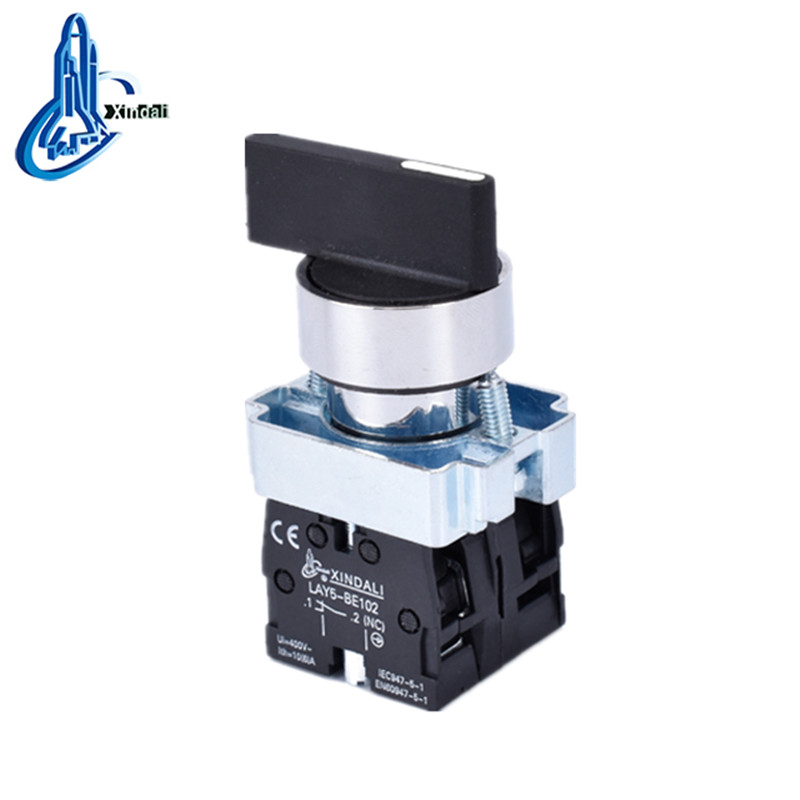

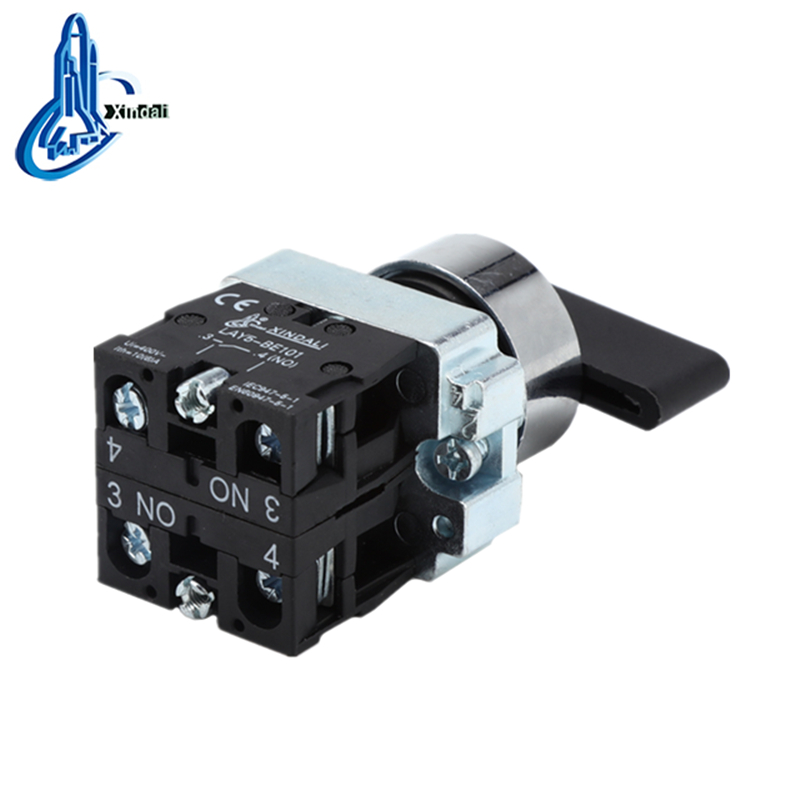

Long Handle 3-Position Pushbutton Switch
This pushbutton switch features a long handle and three positions for versatile control. It is designed for use in electrical systems requiring reliable switching.
Technical Specifications
Product Overview
Industrial 3-Position Selector Switch
This robust 3-position selector switch features a long handle design for enhanced leverage and precise manual control. Engineered for demanding industrial environments, it utilizes a high-grade anti-flam plastic and zinc alloy construction with silver alloy contacts for superior electrical erosion resistance. It is fully compliant with international safety standards including IEC60947-5-1 and CE, making it a reliable solution for control panels, machinery, and power distribution systems.
Technical Specifications
Operational Metrics Table
| Parameter | Value |
|---|---|
| Lamp Brightness | 60cd/m2 |
| Continuous Working Life | 100,000h |
| Switch Positions | 3 |
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- PF Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Durability & Lifecycle
Mechanical Life
500,000 cycles
Selector Switch Cycles
Electrical Life
250,000 cycles
Selector Switch Cycles

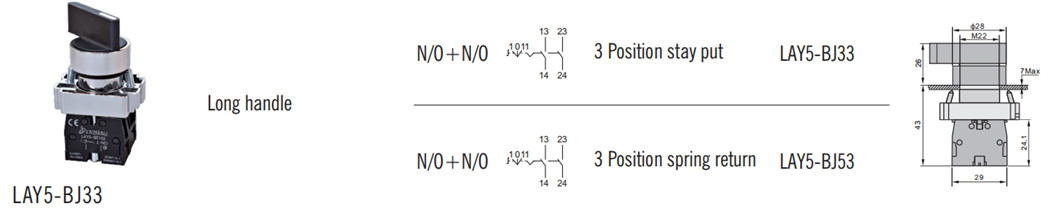

Physical Dimensions
- Mounting Hole Diameter
- 22 mm
- Maximum Panel Thickness
- 7 mm
Compliance & Certification
- Certifications
- CEISO 9001RoHSULIEC60947-5-1
