Technical Specifications
Overview

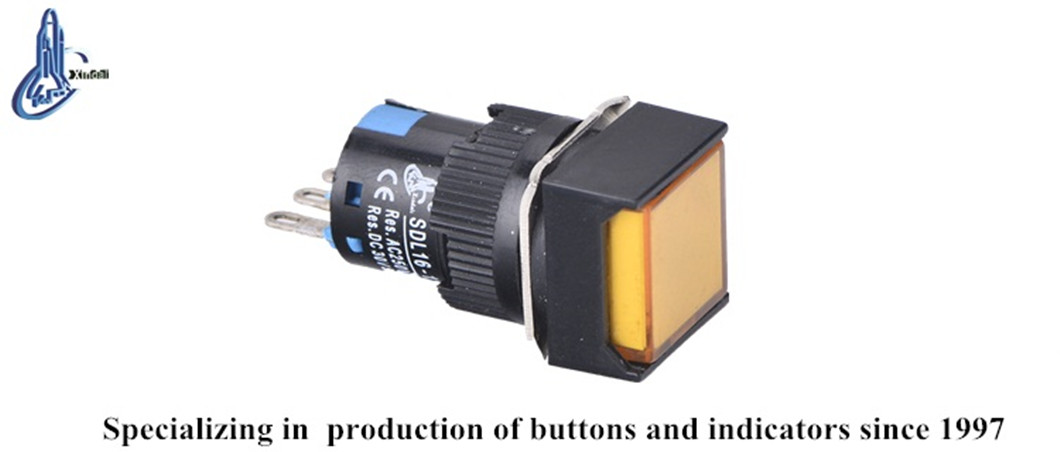

Industrial LED Push Button Switch
This industrial smart switch series is engineered for high-performance control and signaling applications in demanding electrical environments. Featuring a robust zinc alloy and high-grade anti-flame plastic construction, these switches provide excellent durability and anti-electrical erosion properties. The series is fully certified for safe operation and is designed to integrate seamlessly into distribution cabinets, power stations, and communication networks.
Technical Parameters
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Mechanical Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Certifications and Standards
Applied Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001ROHSUL
Operating Conditions
Conditions
| Parameter | Value |
|---|---|
| Temperature | -25°C to +50°C |
| Relative Humidity | ≤85% |
| Altitude | ≤2,000m |
| Pollution Grade | 3 |
| Protection Grade | IP40/IP55 |
