Technical Specifications
Product Overview

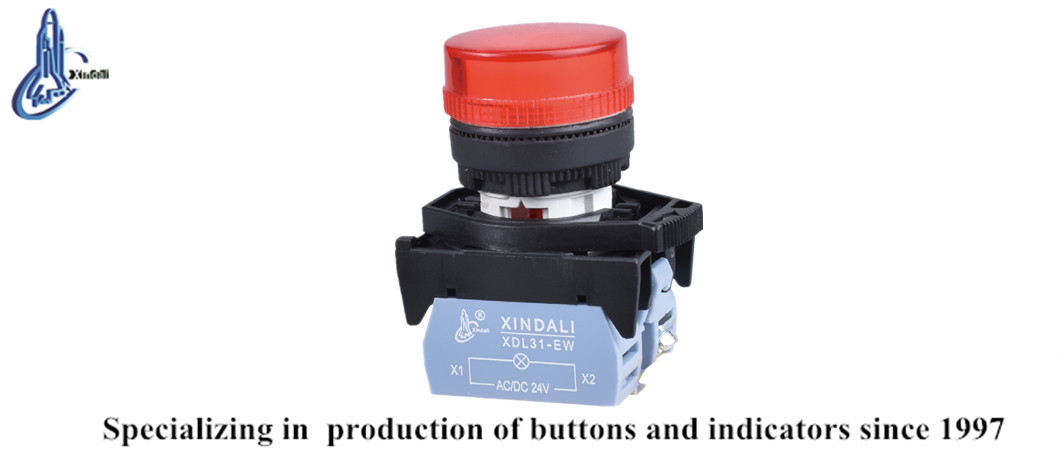

Professional LED Indicator Push Button
This LED indicator push button switch is engineered for high-performance control and signal indication in industrial environments. It features durable construction using high-grade anti-flam plastic and zinc alloy, ensuring reliability in demanding electrical applications. Designed for versatile use, it supports various voltages and complies with international safety and quality standards.

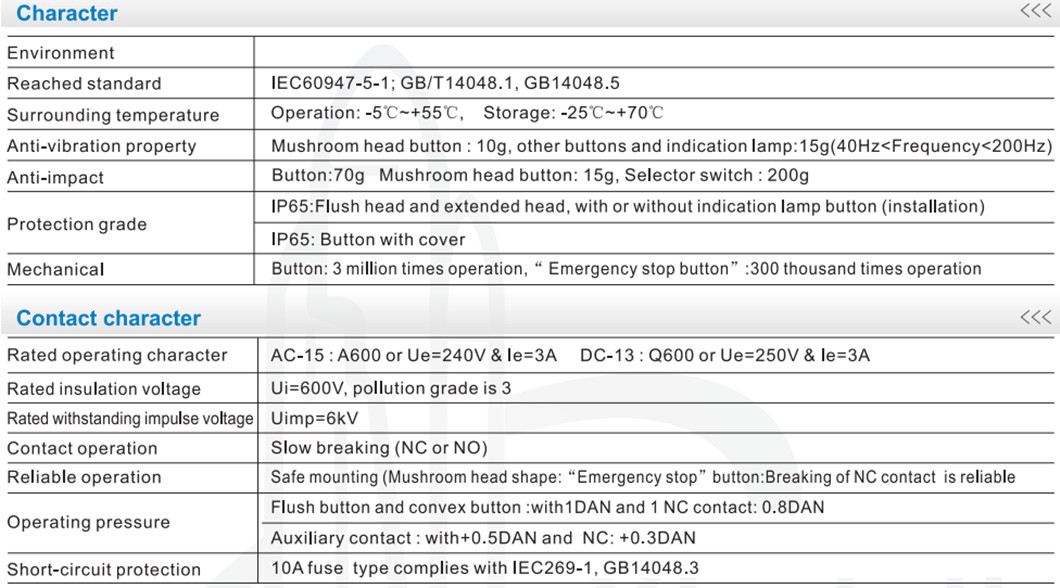

Technical Specifications
- Rated Voltage
- AC up to 660V, DC below 400V
- Rated Insulation Voltage
- 600 V
- Pollution Grade
- 3
- Fastening Torque
- 0.8Nm (Max: 1.2Nm)
Environmental Performance
Protection Ratings
IP40IP54IP65IP66IP67IP68
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Mechanical Durability
Mechanical Life Cycles
3,000,000 ops
Push Button
300,000 ops
Emergency Button
Certifications
- Compliance Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1

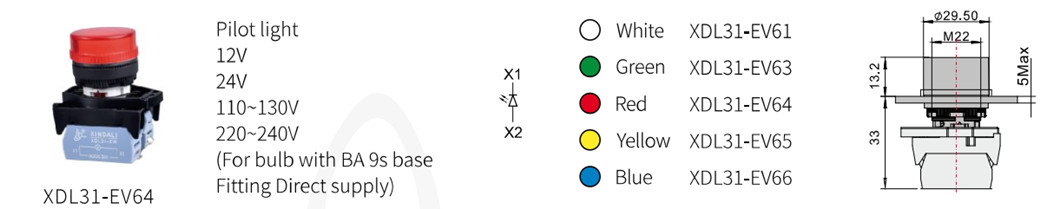

Ordering Information
Available Colors
- White (XDL31-EV61)
- Green (XDL31-EV63)
- Red (XDL31-EV64)
- Yellow (XDL31-EV65)
- Blue (XDL31-EV66)
