LED Indicator Push Button Switch
This push button switch features an integrated LED indicator light for clear signal indication. It is designed for use in electrical control panels and industrial applications.
Technical Specifications
Product Overview

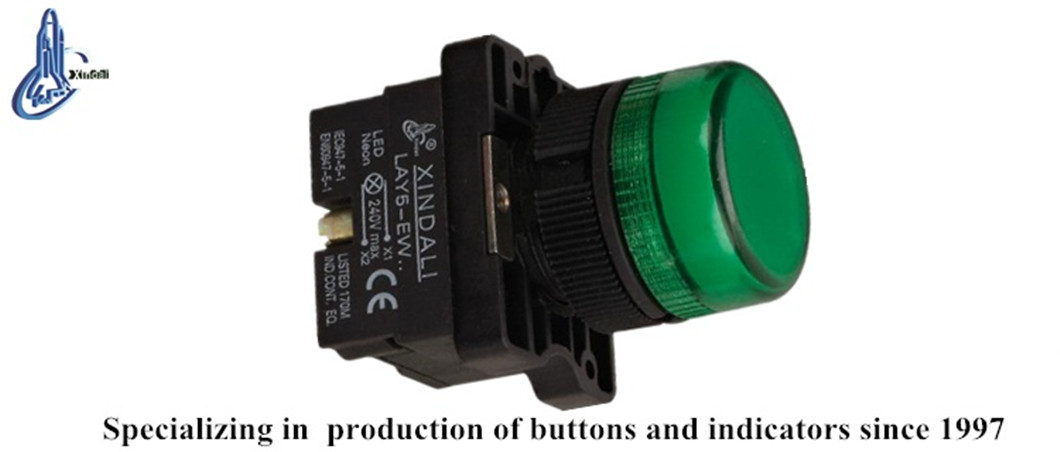

Industrial LED Indicator Push Button
The LAY5-EV63 series is a versatile push button switch featuring an integrated LED indicator, designed for reliable performance in industrial control panels. Constructed with high-grade anti-flam plastic and durable alloy components, it ensures safety and longevity in demanding environments. This switch is ideal for signal, warning, and emergency control applications, supporting both AC and DC circuits with robust electrical characteristics.
Available Colors
WhiteGreenRedYellowBlue
- Certifications
- CEISO 9001ROHSUL
Electrical Specifications
Electrical Performance
| Parameter | Value |
|---|---|
| Rated Insulation Voltage | 600V AC |
| Conventional Heating Current | 10A |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | AC 2.5KV/min |
Mechanical Specifications
Mechanical Life
1,000,000 cycles
Push Button Mechanical Life
5,000,000 cycles
Push Button Electrical Life

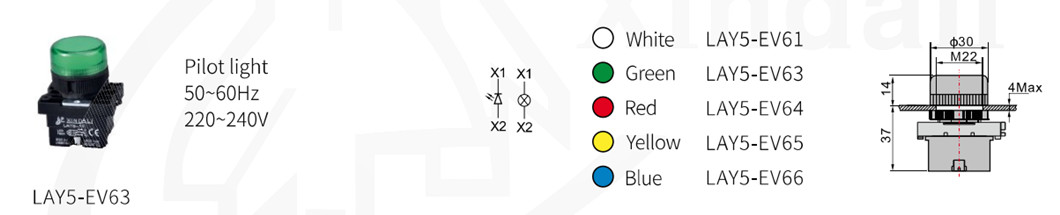

Dimensions and Mounting
Physical Dimensions
- Mounting Diameter: φ30mm
- Threading: M22
- Total Height: 37mm
- Above Panel Height: 14mm
- Max Panel Thickness: 4mm
