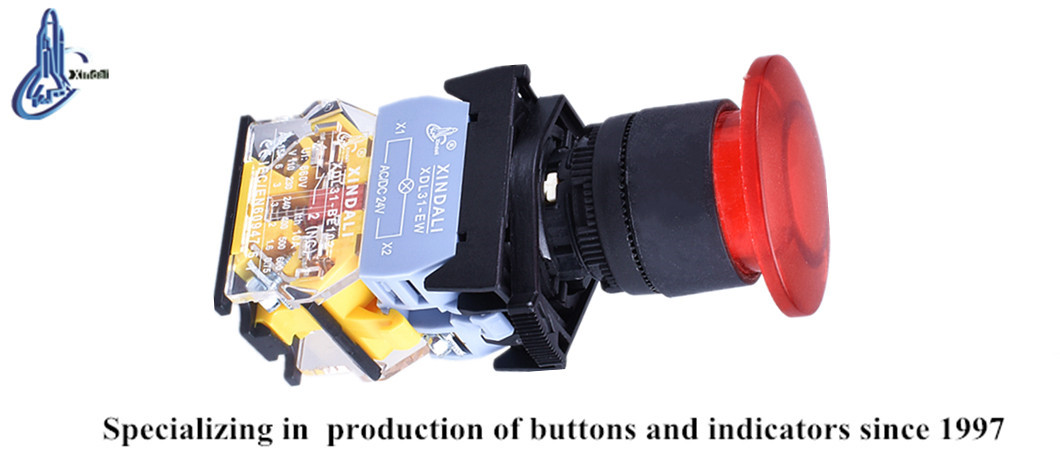

LED Indicator Mushroom Head Pushbutton Switch
This mushroom head pushbutton switch features a red LED indicator light. It is designed for controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview

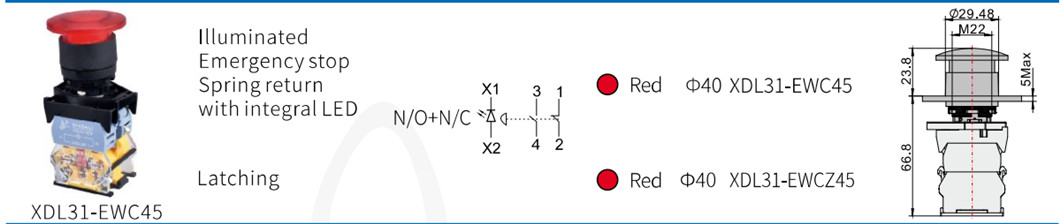

Industrial Mushroom Head Pushbutton Switch
This LED indicator mushroom head pushbutton switch is engineered for high-performance control circuits in industrial environments. It supports AC voltages up to 660V and DC voltages below 400V, featuring a durable zinc alloy and high-grade anti-flam plastic construction. With integrated bright LED illumination, it provides clear visual status signaling, making it ideal for safety, emergency, and warning applications.
Technical Specifications
Mechanical Life
3,000,000 cycles
Standard Pushbutton
300,000 cycles
Emergency Stop
- Rated Insulation Voltage
- 600 V
- Operating Temperature Range
- -5°C to +55°C
- Protection Grade
- IP40IP54IP65IP66IP67IP68
Compliance & Standards
Certifications
CEISO 9001RoHSUL
International Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
Operating Parameters
- Fastening Torque
- 0.8 Nm
- Relative Humidity
- 35% - 85% RH
