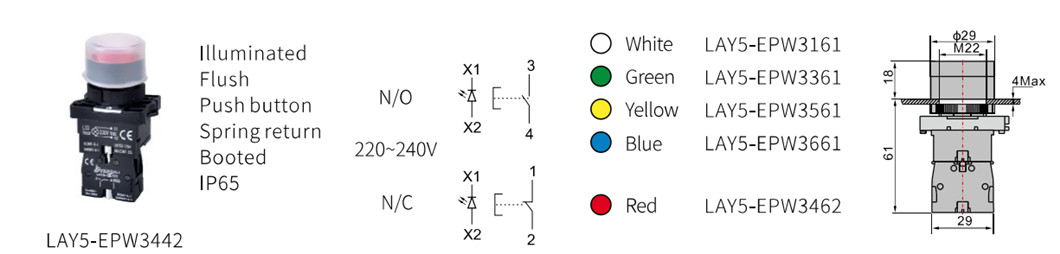

LED Indicator Light with Button and Rubber Cap
This electric LED indicator light features a button with a rubber cap switch. It is designed for controlling signals and interlocking purposes in various applications.
Technical Specifications
Product Overview
Industrial LED Indicator & Control Switch

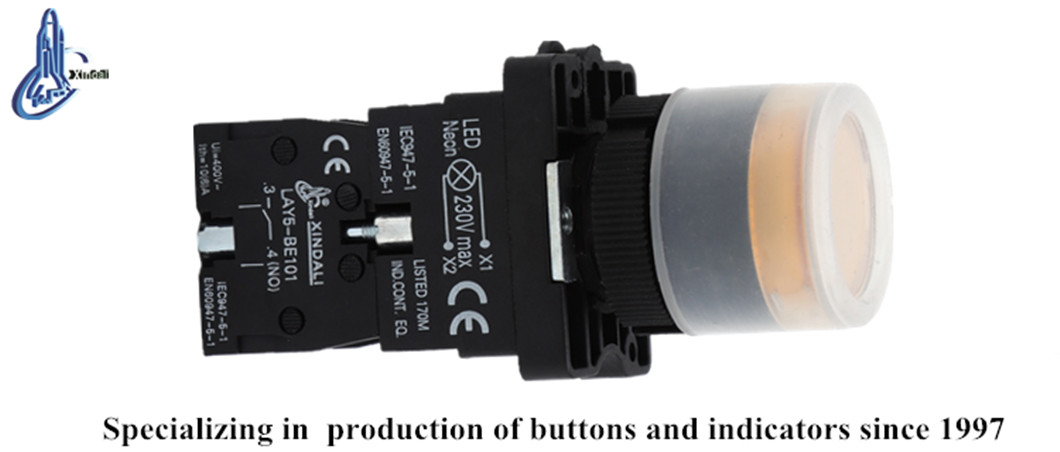

This electric LED indicator light features a robust button design with a protective rubber cap, engineered for reliable performance in demanding industrial environments. Constructed with a high-grade zinc alloy body and anti-flammable plastic, it utilizes special silver alloy contacts to ensure high resistance to electrical erosion. It is ideal for controlling circuits, signaling, and emergency warnings in distribution cabinets, control panels, and power stations.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton Cycles
500,000 cycles
Selector Switch Cycles
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Physical & Installation
Ingress Protection
IP65
- Panel Cutout Diameter
- 29 mm
- Max Panel Thickness
- 4 mm
- Available Colors
- WhiteGreenYellowBlueRed
Compliance & Standards
Standards Compliance
- GB/T14048.1
- IEC60947-5-1
- EN60947-5-1
- Certifications
- CEISO9001RoHSUL
