LED Indicator Double Head Push Button Switch
This double-headed push button switch features an integrated LED indicator. It is designed for controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview

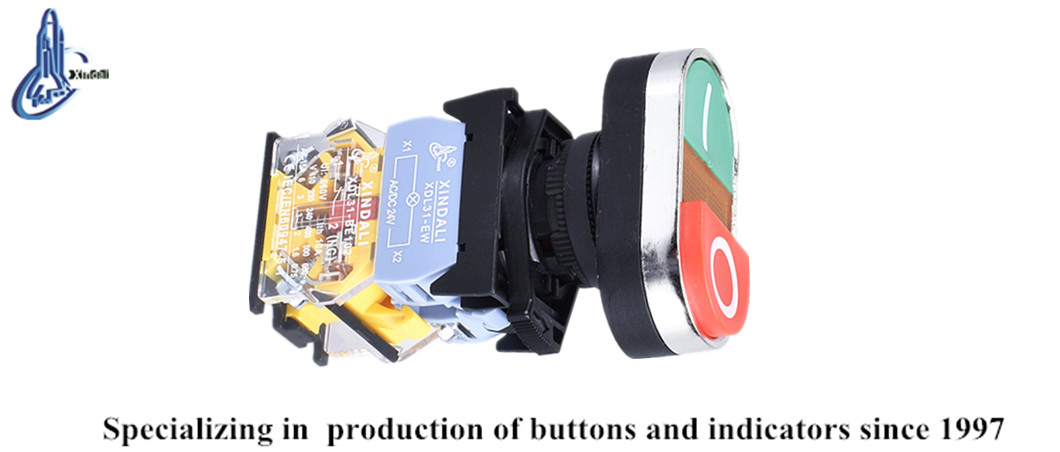

Industrial Double Head Push Button
The XDL31-CBW8465 is a professional-grade double-headed push button switch featuring an integrated LED indicator. Designed for high-performance control panel applications, it combines start and stop functionality within a single compact unit. Built with high-grade anti-flame plastics and zinc alloy, it offers exceptional durability and reliable signaling for circuits up to 660V.

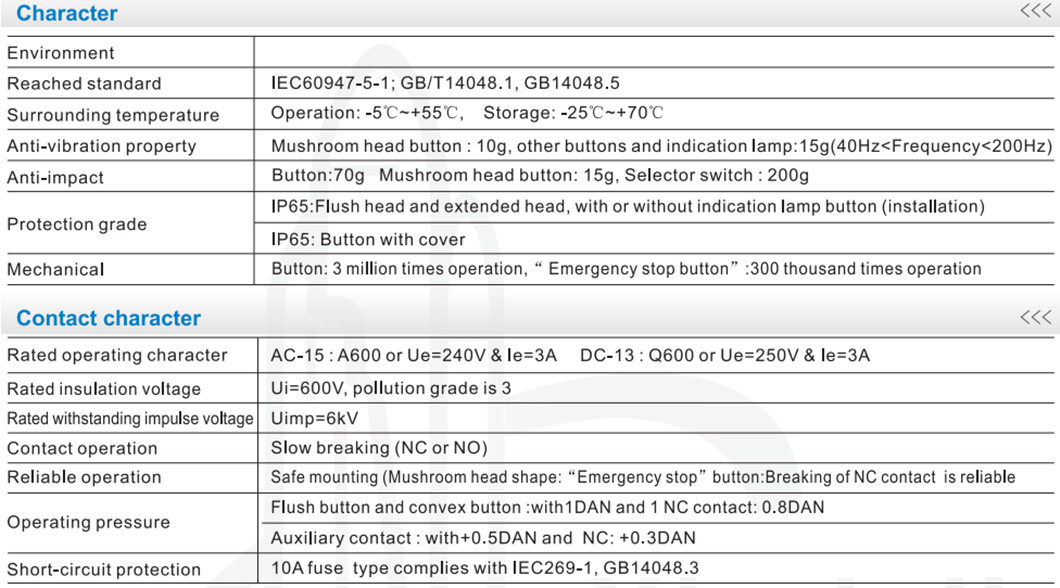

Technical Specifications
- Rated Insulation Voltage (Ui)
- 600 V
- Pollution Grade
- 3
- Installation Class
- Class III
Operating Environment
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35-85% RH
Performance Metrics
Mechanical Life
3,000,000 cycles
Standard Button
300,000 cycles
Emergency Button
- Protection Grade
- IP40IP54IP65IP66IP67IP68
Compliance
Certifications
CEISO9001RoHSUL
International Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- IEC68-2-6 (Vibration)
- IEC68-2-27 (Impact)
