LED Illuminated Push Button Switch
This push button switch features integrated LED lights and a spring return mechanism. It is a 2-position lamp switch designed for use in various electrical power applications.
Technical Specifications
Overview

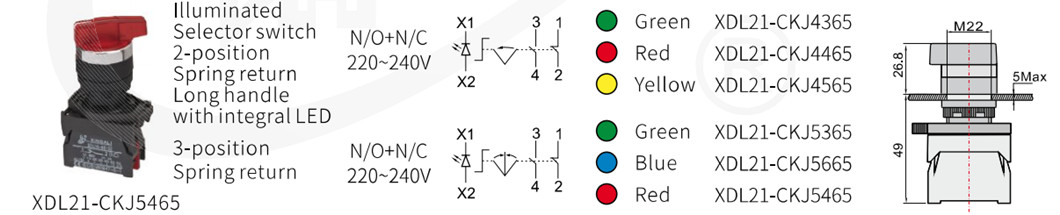

Industrial Illuminated Selector Switch
The XDL21 series selector switch is a high-performance industrial control component designed for demanding environments. Featuring a 2-position spring return mechanism and integrated LED illumination, it provides reliable signal feedback for diverse applications including control cabinets and power stations. Built with robust zinc alloy and high-grade anti-flam plastic, it ensures long-term operational durability and safety compliance.
Technical Specifications
- Mounting Diameter
- 22mm
- Mechanical Endurance
- 500,000 cycles (Selector switch)
- Electrical Endurance
- 250,000 cycles (Selector switch)
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
- Protection Rating
- IP65
- Compliance & Certifications
- CERoHSIEC60947-5-1GB/T14048.1
Operating Environment
Suitable Applications
- Distribution Boxes
- Distribution Cabinets
- Control Cabinets
- Power Stations
- Communication Networks
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
