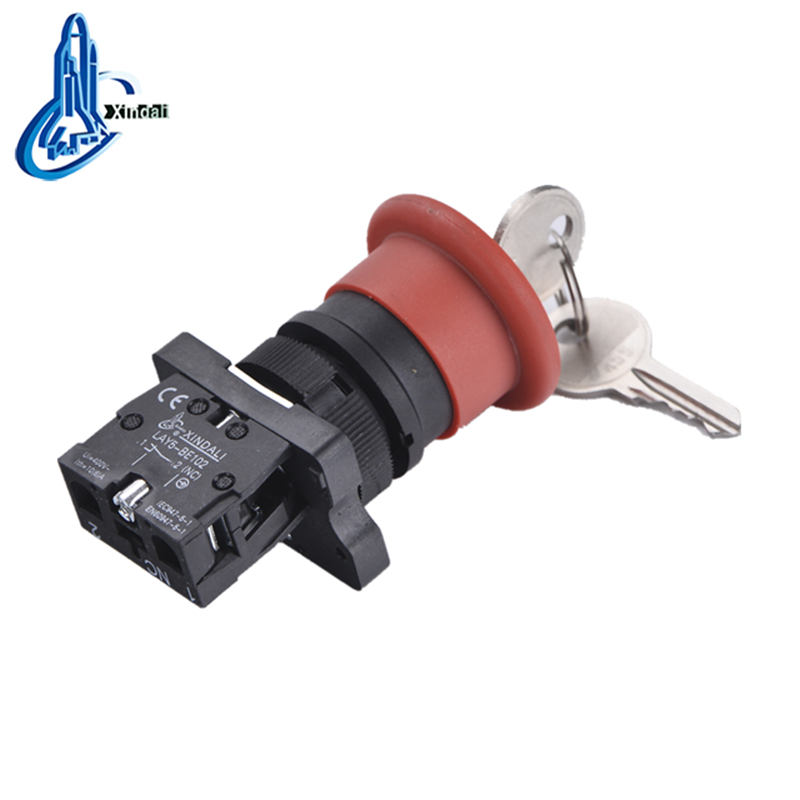

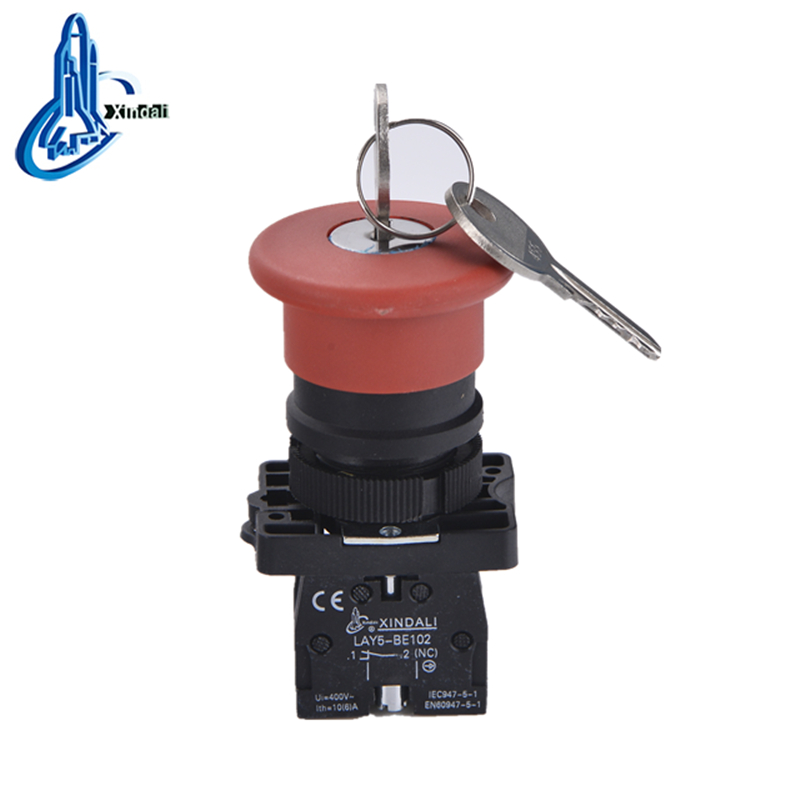

Key-Operated Mushroom Head Push Button Switch
This key-operated mushroom head push button switch is designed for industrial control applications. The switch features a large, easily accessible mushroom head for emergency stop or manual intervention, and the key-operated function adds an extra layer of security.
Technical Specifications
Product Overview
Key-Operated Mushroom Head Push Button Switch
This industrial-grade mushroom head push button switch is designed for reliable control in demanding environments. Featuring a key-operated release mechanism, it ensures secure operation by preventing unauthorized access or accidental activation. The robust construction utilizes high-grade materials, making it suitable for control panels, distribution cabinets, and emergency stop applications.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
- Certifications
- CEISO 9001RoHSUL
- Standards Compliance
- IEC60947-5-1GB/T14048.1

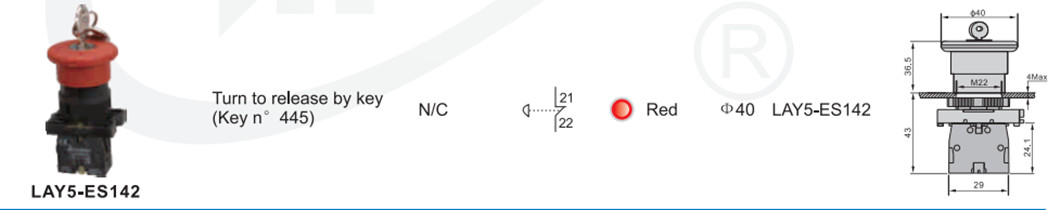

Dimensions & Mounting
Mounting Specifications
| Feature | Value |
|---|---|
| Mounting Hole | M22 |
| Panel Thickness | Max 4mm |
| Base Width | 29mm |
| Base Height | 24.1mm |
