Technical Specifications
Overview
Industrial Emergency Stop Performance

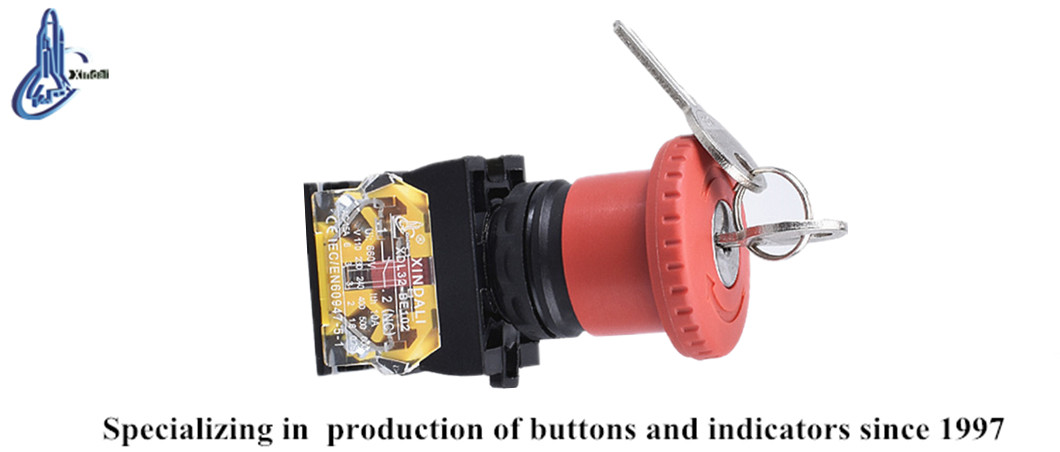

This high-performance industrial emergency stop push button switch is designed for critical safety circuits, including elevator control systems. Engineered with a robust zinc alloy body and high-grade anti-flame materials, it ensures durability and operational integrity in harsh conditions. Featuring a secure key-lock mechanism and an IP68 protection rating, this switch offers exceptional resistance to dust and moisture, providing reliable emergency shutdown capabilities for demanding electrical infrastructures.
Technical Standards
- Certifications & Standards
- CEISO9001RoHSULIEC60947-5-1GB/T14048.1
Electrical Ratings
Rated Operating Voltage
660 V
AC Max Voltage
400 V
DC Max Voltage
Insulation Characteristics
| Metric | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 600V |
| Impulse Withstand Voltage (Uimp) | 6kV |
| Pollution Grade | 3 |
| Short-Circuit Protection | 10A Fuse |
Environmental Conditions
- Temperature Range
- -5°C to +55°C (Operating); -25°C to +70°C (Storage)
- Relative Humidity
- 35% to 85% RH
Mechanical Specifications
Operational Lifespan
300,000 Ops
Emergency Stop Cycles
3,000,000 Ops
Standard Pushbutton Cycles
IP Rating
IP68IP67IP66IP65
- Fastening Torque
- 0.8 Nm
