IP68 Double Head Spring Button LED On/Off Switch
This double-headed spring button switch controls on/off functionality. An integrated LED provides clear status indication, and its IP68 rating ensures protection against dust and water.
Technical Specifications
Product Overview
Industrial Control Solution

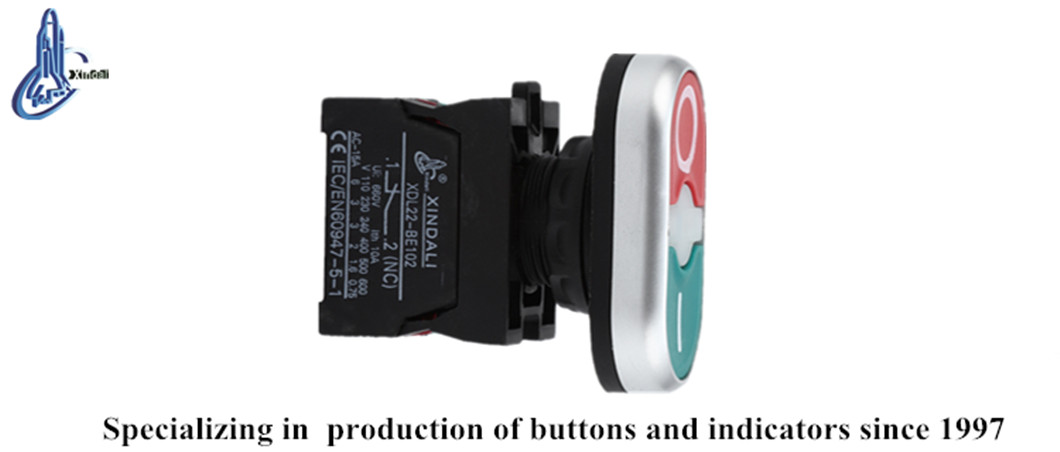

The XDL22-CBW8365 is a high-performance double-headed spring button switch designed for precise control in demanding electrical environments. Combining a robust zinc alloy and high-grade anti-flam plastic construction with an IP68 protection rating, it ensures reliable operation against dust and liquid ingress. The integrated LED pilot light provides clear visual status feedback, making it ideal for signal, warning, or emergency circuit applications.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current
Contact Performance
| Voltage (V) | AC-15A Rating (A) |
|---|---|
| 110 | 6 |
| 230 | 3 |
| 240 | 3 |
| 400 | 2 |
| 500 | 1.6 |
| 600 | 0.75 |
Environmental & Durability
Protection Rating
IP40IP54IP65IP66IP67IP68
Mechanical Life Cycles
- Pushbutton: 3,000,000 cycles
- Emergency button: 300,000 cycles
- Ambient Temperature
- -5°C to +55°C (Operating); -25°C to +70°C (Storage)
Compliance & Installation
- Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048
- Fastening Torque
- 0.8 Nm
