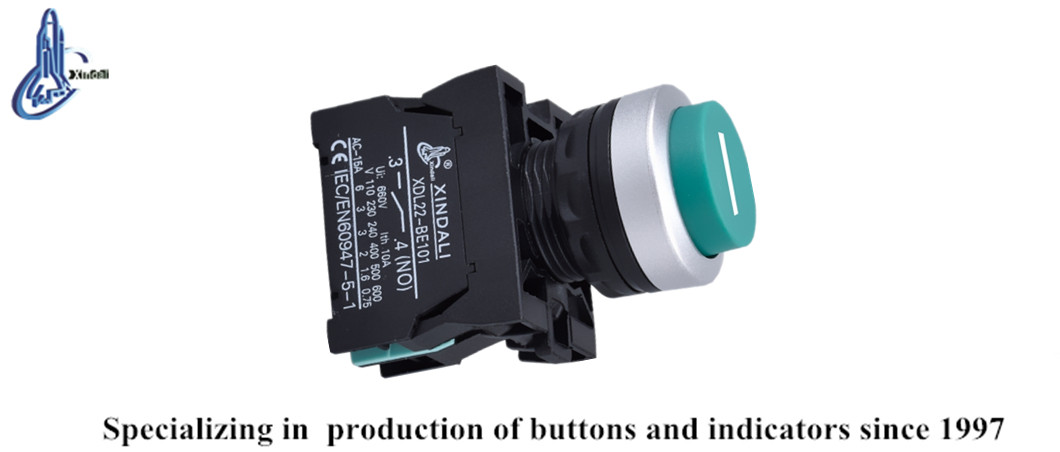

IP67 Waterproof Stay Put Convex Head Push Button Switch
This IP67 waterproof push button switch features a stay-put convex head. It is designed for industrial applications requiring a durable and watertight switching solution.
Technical Specifications
Product Overview
Industrial-Grade Waterproof Switch
This stay-put convex head push button switch is engineered for demanding industrial environments, providing reliable control for AC and DC circuits. Featuring an IP67-rated waterproof construction, it offers robust protection against dust and moisture ingress. Built with high-grade zinc alloy and anti-flammable plastics, it ensures durability and consistent performance in signal and interlocking applications.
Electrical Ratings
Rated Insulation Voltage (Ui)
660 V
AC Voltage Max
400 V
DC Voltage Max
- Conventional Thermal Current (Ith)
- 10 A
Environmental Performance
Protection Grade
IP40IP54IP65IP66IP67IP68
- Ambient Temperature Range
- -25°C to +70°C (Storage), -5°C to +55°C (Operating)
- Relative Humidity
- 35% - 85% RH
Mechanical Specifications
Mechanical Durability
| Component | Cycles |
|---|---|
| Pushbutton | 300,000 |
| Emergency Button | 30,000 |
- Fastening Torque
- 0.8 Nm
Compliance and Standards
Conforming Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- IEC 68-2-6 (Vibration)
- IEC 68-2-27 (Impact)
- Certifications
- CEISO9001ROHSUL
