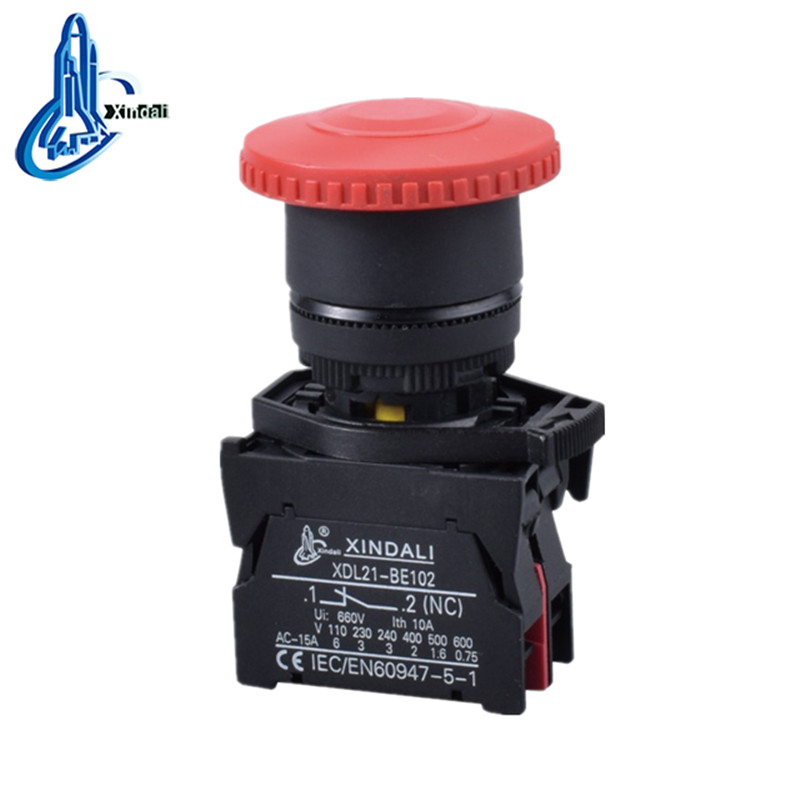

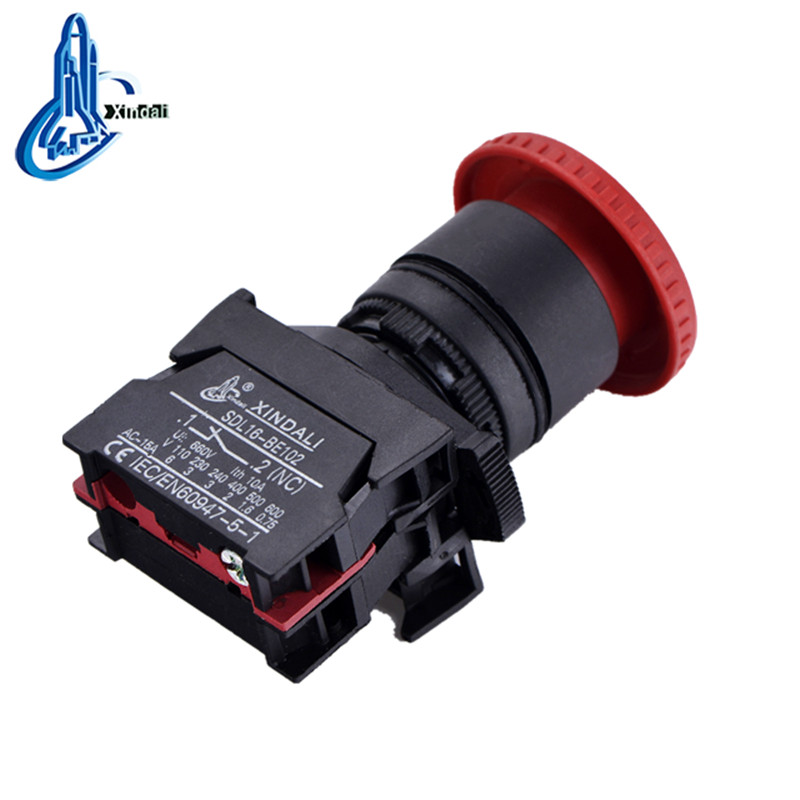

IP67 Waterproof Metal Latching Push Button Switch
This push button switch is IP67 rated for waterproof operation. It features a metal latching mechanism for secure and stable performance.
Technical Specifications
Product Overview
Industrial Latching Push Button
This series of push button switches is engineered for demanding industrial control environments, featuring a robust metal construction with high-grade anti-flam plastic components. Designed for versatility, they support control circuits up to 660V AC or 400V DC and are equipped with a secure latching mechanism. With IP65 and IP67 ingress protection, these switches offer exceptional reliability against water and dust in harsh operational settings.
Technical Parameters
Electrical Specifications
| Parameter | Rating |
|---|---|
| Rated insulation voltage | AC 600V (50/60Hz) |
| Conventional heating current | 10A |
| Insulation resistance | ≥50MΩ |
| Contact resistance | ≤25mΩ |
| Power frequency withstand | AC 2.5KV/min |
Mechanical and Electrical Life
1,000,000 cycles
Mechanical Life (Pushbutton)
5,000,000 cycles
Electrical Life (Pushbutton)
500,000 cycles
Mechanical Life (Selector)
250,000 cycles
Electrical Life (Selector)
Certifications & Standards
- Compliance and Standards
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Environmental Protection
Ingress Protection Rating
IP65IP67
