IP67 Long Position Light 3-Position Push Button Switch
This push button switch is designed with a long position light and three distinct positions. Its IP67 rating ensures protection against dust and water ingress.
Technical Specifications
Product Overview

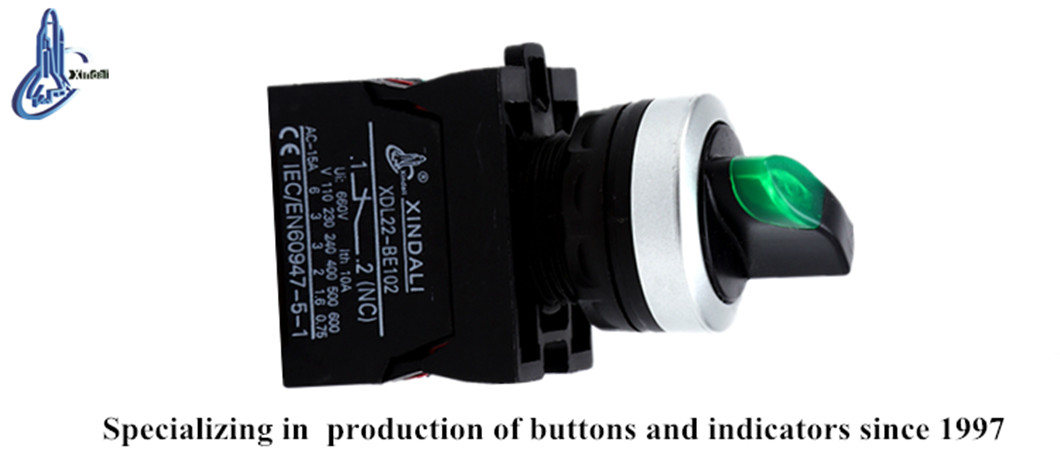

Industrial Grade 3-Position Selector Switch
This versatile 3-position push button switch is engineered for demanding industrial control circuits, supporting AC voltages up to 660V and DC applications. Designed for high reliability, it utilizes a zinc alloy and anti-flame plastic body with silver alloy contacts for excellent anti-electrical erosion properties. Its robust construction provides high protection ratings, making it an ideal choice for signaling and interlock control in harsh environments.
Technical Specifications
Voltage Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
Environmental Protection
IP40IP54IP65IP66IP67IP68
- Ambient Temperature
- Operating: -5°C to +55°C; Storage: -25°C to +70°C
- Fastening Torque
- 0.8 Nm
- Pollution Grade
- 3
Certifications
- Standards & Certifications
- CEISO9001RoHSULIEC60947-5-1GB/T14048.1
Mechanical Performance
Mechanical Life
| Type | Cycles |
|---|---|
| Push-Pull Button | 300,000 |
| Emergency Button | 30,000 |
