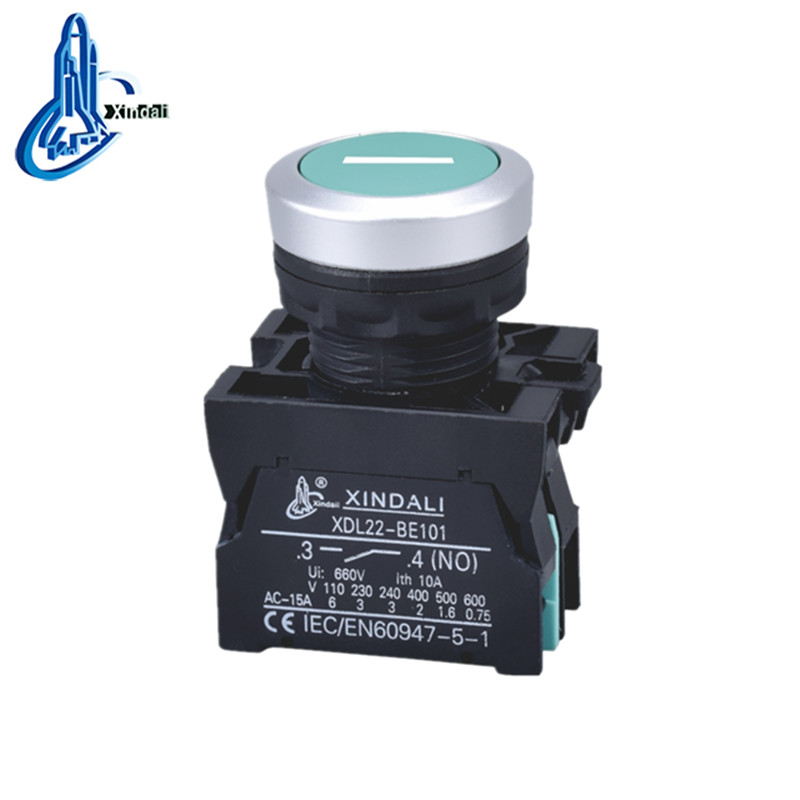

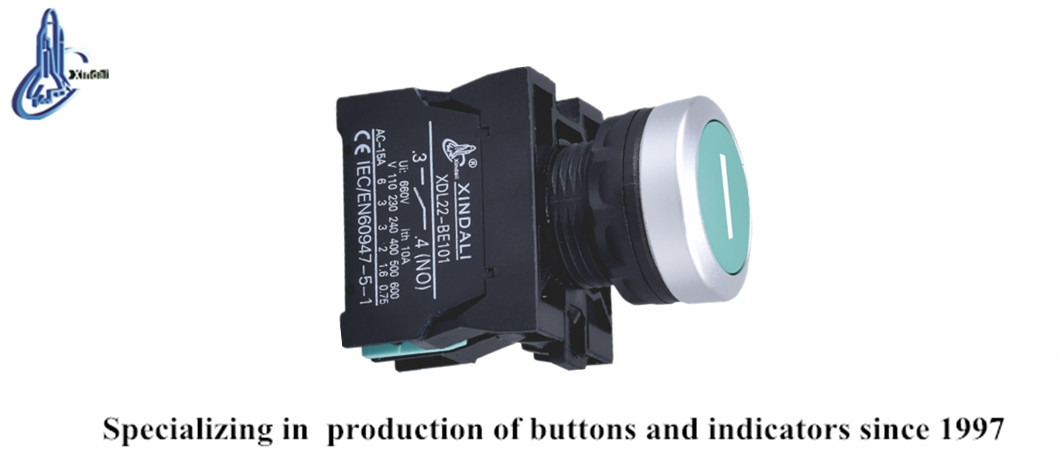

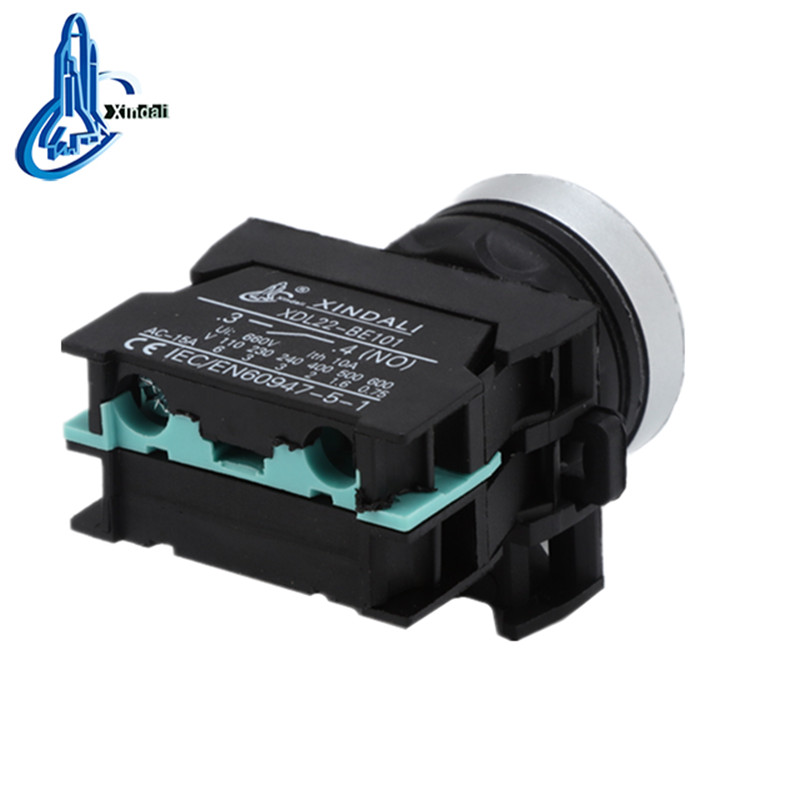

IP67 Green Push Button Switch with Electrical Symbol
This industrial push button switch features a green actuator with an electrical symbol. Its IP67 rating ensures protection against dust and water, making it suitable for demanding environments.
Technical Specifications
Product Overview
Industrial-Grade Push Button Switch
This high-performance push button switch is engineered for demanding industrial environments, supporting control circuits up to 660V AC or 400V DC. It features a rugged construction combining zinc alloy and high-grade anti-flam plastic, ensuring reliability for signal and interlocking applications. With a focus on durability, the switch utilizes specialized silver alloy contacts for superior resistance to electrical erosion.
Technical Specifications
IP Rating
IP67
- AC Voltage Rating
- 660 V
- Thermal Current (Ith)
- 10 A
- Pollution Grade
- 3
Environmental & Mechanical
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Compliance & Standards
Conforming Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- Certifications
- CEISO 9001RoHSUL
