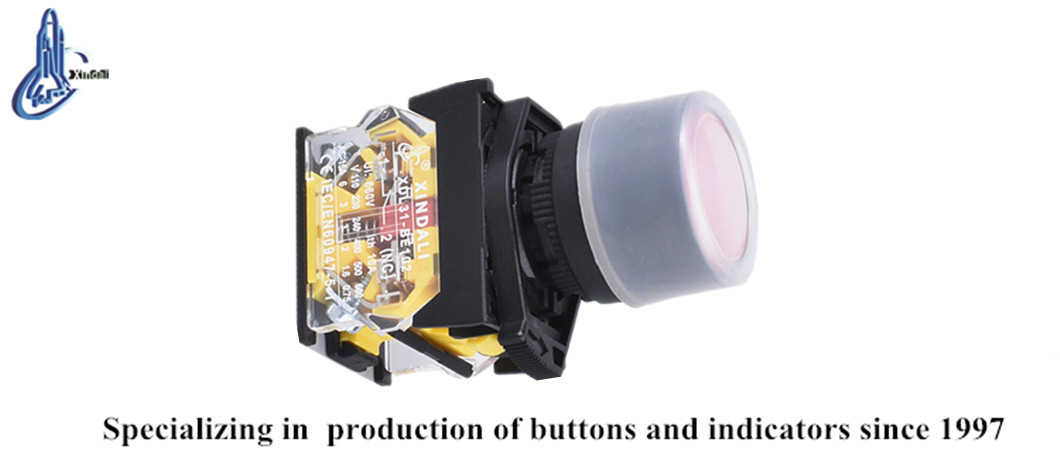

IP65 Waterproof Push Button Switch with Rubber Cap
This push button switch is designed for controlling circuits with AC voltage up to 660V and DC voltage below 400V. Featuring a rubber cap, it has an IP65 rating, making it waterproof and suitable for demanding environments.
Technical Specifications
Product Overview
Industrial Waterproof Push Button Switch
This high-performance push button switch is designed for reliable operation in demanding industrial environments. Featuring a protective rubber cap, the unit provides an IP65 rating against dust and water ingress. Engineered with a durable zinc alloy and high-grade anti-flame plastic body, it is suitable for controlling circuits with high insulation standards and long mechanical lifespans.
Electrical Ratings
Compatible Voltage
- AC up to 660V
- DC below 400V
- Rated Insulation Voltage (Ui)
- 600 V
- Rated Thermal Current (Ith)
- 10 A
Performance
Mechanical Life
3,000,000 ops
Standard Button
300,000 ops
Emergency Stop
Ingress Protection
IP65IP66IP67IP68
Environment
- Operating Temperature
- -5°C to +55°C
- Pollution Grade
- 3
Compliance
- Standards Compliance
- IEC60947-5-1GB/T14048.1GB14048.5CEULRoHS

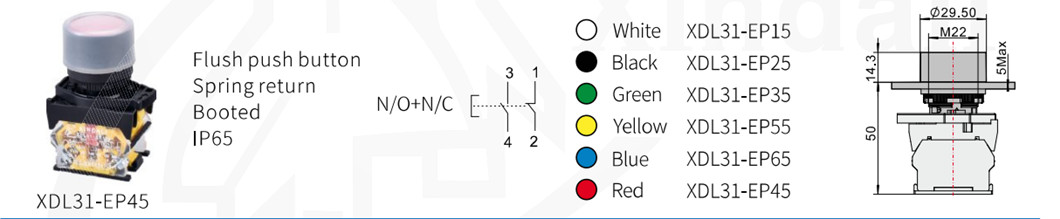

Physical Dimensions
- Mounting Diameter
- 22 mm
