Technical Specifications
Overview

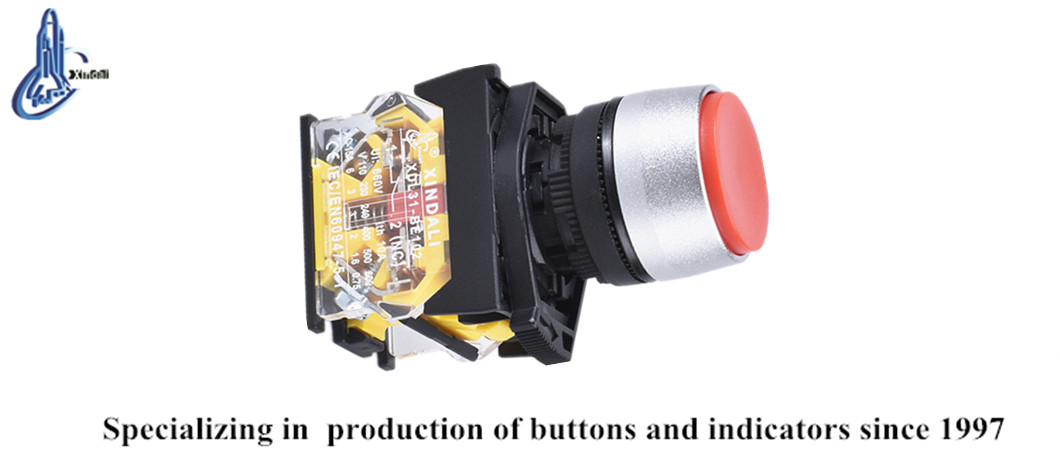

Professional Convex Push Button Switch
This high-quality convex push button switch is engineered for demanding industrial control environments, featuring an IP65 ingress protection rating for reliable dust and water resistance. Designed for signal and interlocking applications, the switch utilizes durable zinc alloy and anti-flame materials with silver alloy contacts for excellent electrical erosion resistance. It complies with major international standards, ensuring consistent performance in both AC and DC control circuits.
Technical Specifications
Rated Insulation Voltage
600 V
Rated Insulation
6 kV
Impulse Withstanding
Mechanical Life
| Type | Operations |
|---|---|
| Standard Pushbutton | 3,000,000 |
| Emergency Button | 300,000 |
Compliance Standards
IEC60947-5-1GB/T14048.1GB14048.5CEULROSHISO9001
- Operating Temperature Range
- -5°C to +55°C
- Protection Grade
- IP65IP66IP67IP68
- Fastening Torque
- 0.8 Nm

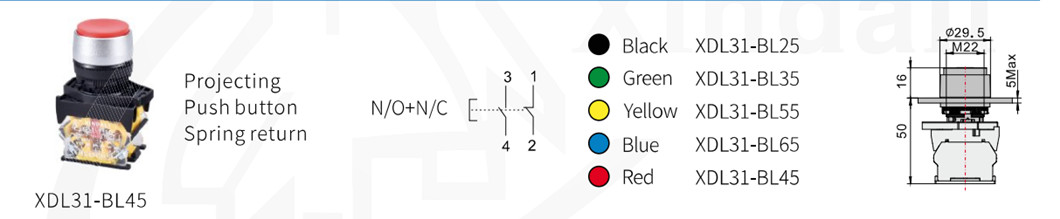

Physical Dimensions
Mounting Dimensions
- Thread: M22
- Diameter: 29.5mm
- Total Height: 50mm
- Max Panel Thickness: 5mm
