Technical Specifications

Product Overview

Industrial Control Solution

This 3-position metal selector switch is designed for demanding industrial control environments requiring reliable performance. Rated at IP65, it provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor machinery applications. The modular design, featuring a durable zinc alloy body, ensures longevity and flexibility for various control circuit configurations.

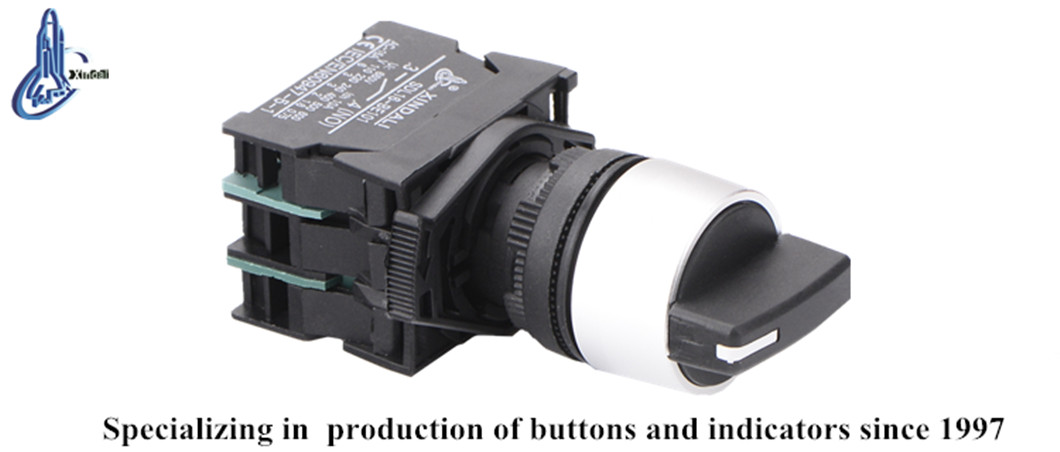

Industrial 3-position selector switch — Durable metal-body selector switch suitable for harsh industrial environments.

Technical Specifications

Electrical Ratings

660 V

Rated Insulation Voltage (Ui)

10 A

Conventional Heating Current (Ith)

2.5 KV

Withstand Voltage

Performance Parameters

Parameter	Value
Insulation Resistance	≥50MΩ
Contact Resistance	≤25mΩ
Voltage Wave Tolerance	±20%
Lamp Brightness	60cd/m²

Mechanical Details

Dimensions & Mounting

Mounting Hole Diameter: 22mm
Total Product Diameter: 29.8mm
Total Height: 49mm
Main Body Material: Zinc Alloy

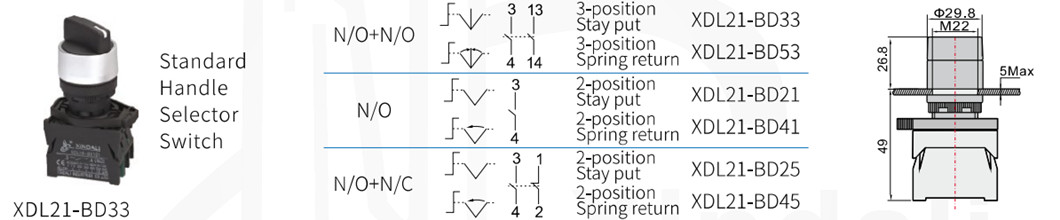

Selector switch mechanical dimensions and configuration diagram — Technical dimensions and contact arrangement options for the 3-position selector switch.

Certifications & Compliance

Compliance Standards

GB/T14048.1IEC60947-5-1

Industry Certifications: CEISO 9001RoHSUL
