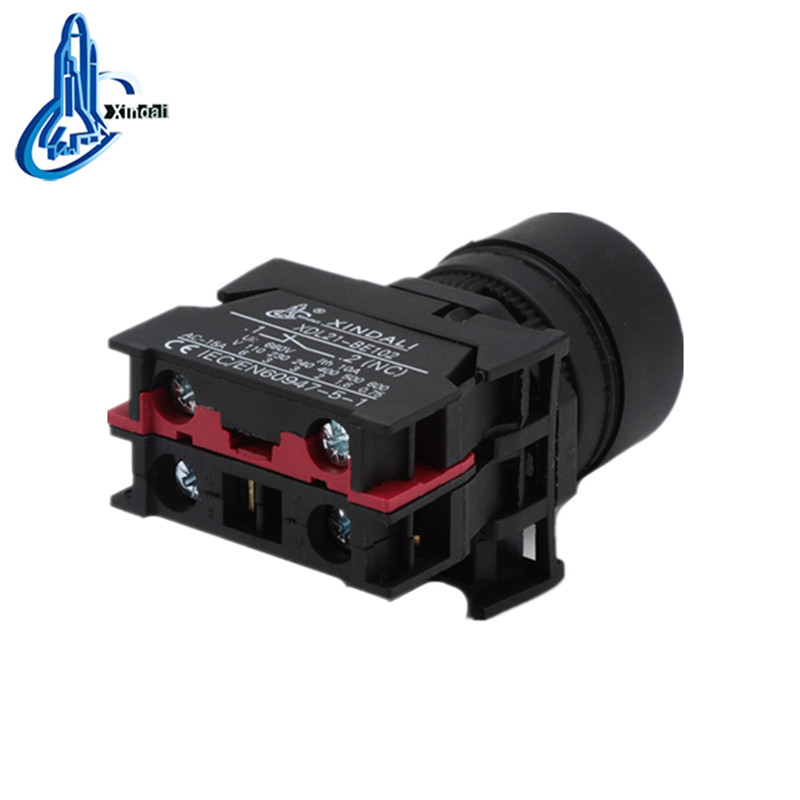

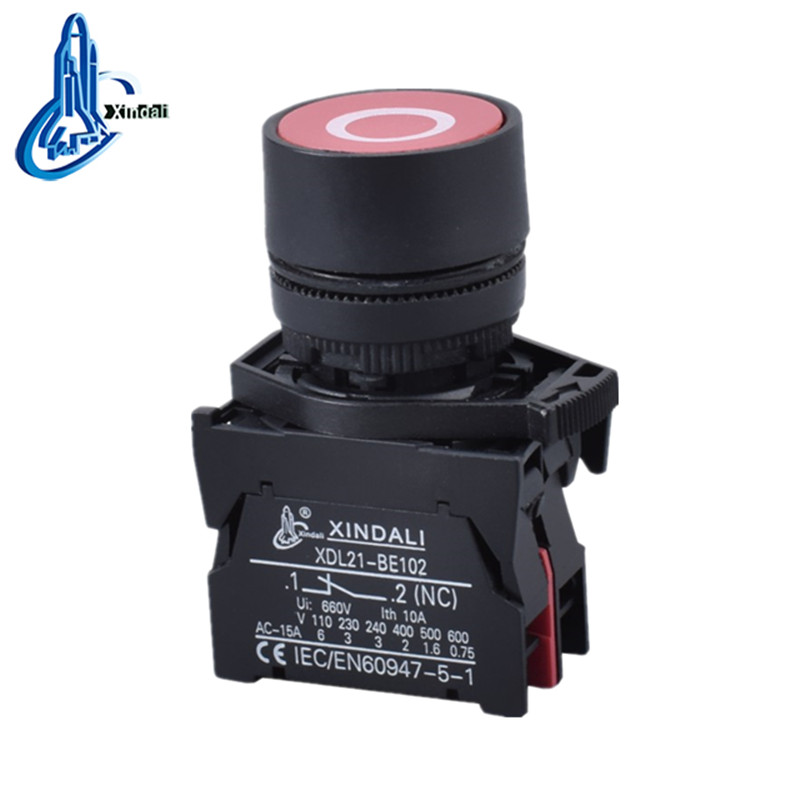

IP65 Spring Return Marked Push Button Switch with Red Actuator
This IP65-rated spring return push button switch features a red button with clear markings. It is designed for reliable performance in electrical power applications.
Technical Specifications
Overview
Industrial Push Button Switch
This IP65-rated spring return push button switch is designed for high-performance control circuits. Constructed with high-grade anti-flame plastic and silver alloy contacts, it offers excellent durability and electrical erosion resistance. Suitable for diverse industrial environments, it supports both AC and DC operation in control systems.
Technical Specifications
Electrical Ratings
660 V
Rated Insulation Voltage
10 A
Conventional Heating Current
Operating Conditions
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Power Frequency Withstand Voltage | AC 2.5KV/min |
Service Life
- Mechanical Life: 1,000,000 operations
- Electrical Life: 500,000 operations
- Continuous working life: 100,000 hours
Certifications & Standards
- Compliance & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T14048.1
Physical Attributes

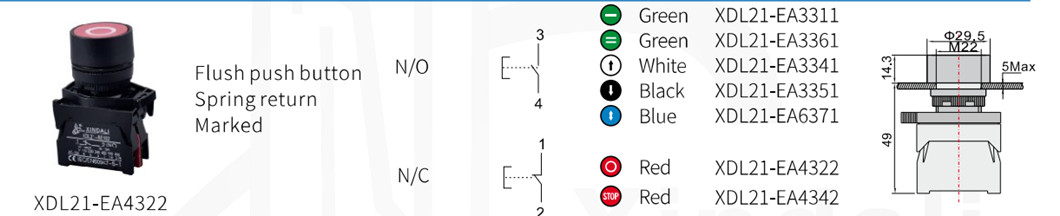

Dimensions & Build
IP65 RatedSpring ReturnRed ActuatorMounting Diameter: 22mm
