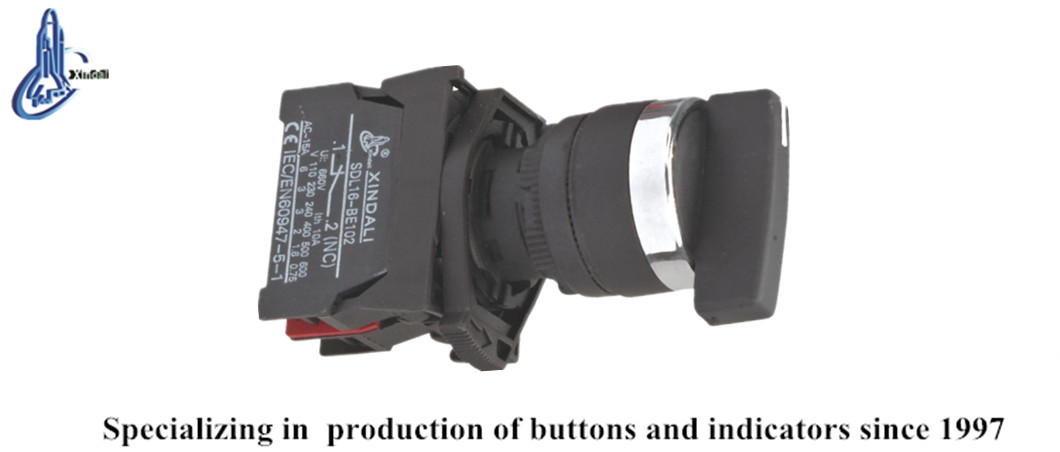

IP65 Long Pushbutton Switch
This IP65 long pushbutton switch is designed for on/off control. It is suitable for use in distribution boxes, control cabinets, power stations, and communication networks.
Technical Specifications
Overview
Industrial Pushbutton Control
The XDL21-CJ series provides a robust switching solution for demanding industrial control environments. Designed with high-grade anti-flame plastics and durable zinc alloy bodies, these switches offer excellent resistance to electrical erosion using specialized silver alloy contacts. Featuring an IP65 protection rating, they are engineered to withstand dust and moisture in diverse applications including power stations and control cabinets.
Electrical Ratings
- Rated Insulation Voltage (Ui)
- 600 V
- Conventional Heating Current (Ith)
- 10 A
- Rated Withstanding Impulse Voltage (Uimp)
- 6 kV
Performance
Mechanical Endurance
- Standard Button: 3,000,000 operations
- Emergency Stop Button: 300,000 operations
Operating Environment
-5 °C
Min Operating Temp
55 °C
Max Operating Temp
Compliance
- Standards & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Physical Properties
Ingress Protection
IP65

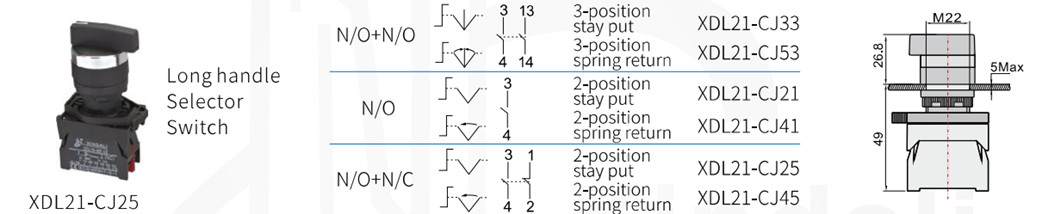

Dimensions & Mounting
| Parameter | Value |
|---|---|
| Mounting Hole | 22mm |
| Max Panel Thickness | 5mm |
| Overall Length | 49mm |
| Body Height | 26.8mm |
