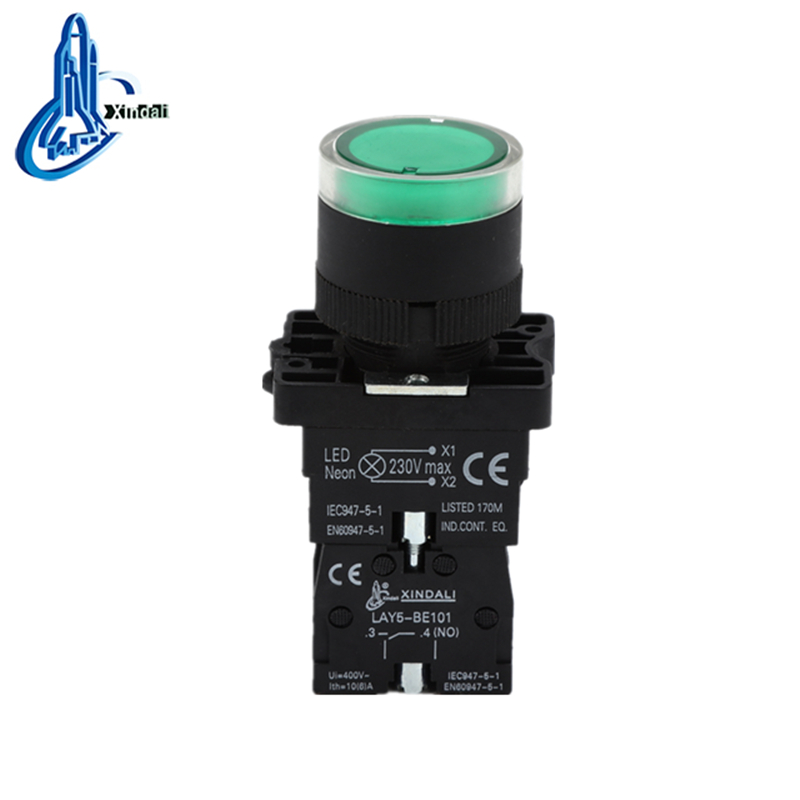

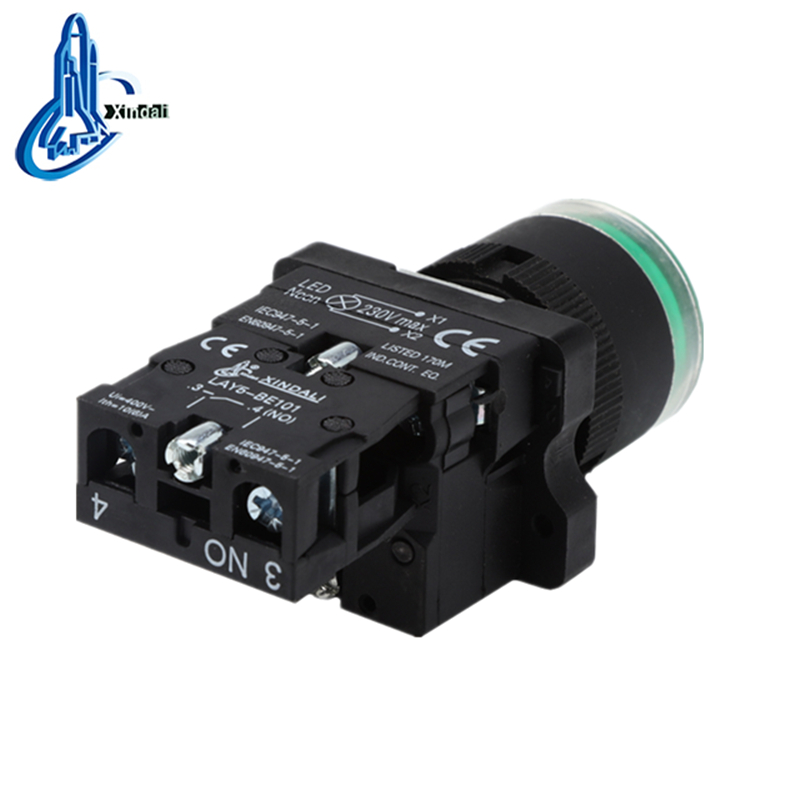

IP40 LED Indicator Light Push Button Switch
This IP40 LED indicator light combines visual indication with push-button functionality. It is designed for use in electrical power applications, providing clear status indication.
Technical Specifications
Overview
Industrial LED Indicator Push Button
The LAY5-EW3361 is a reliable LED indicator light and push button switch designed for demanding industrial control applications. Featuring an IP40 ingress protection rating, it is built for indoor environments such as distribution cabinets, power stations, and communication networks. This versatile component supports both AC and DC circuits, ensuring robust signal and control performance with high-grade silver alloy contacts for enhanced durability.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Push Button
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Push Button
250,000 cycles
Selector Switch
Lamp Performance
60 cd/m²
Brightness
100,000 h
Continuous Working Life
Compliance & Standards
Standards Compliance
- GB/T14048.1
- IEC60947-5-1
- EN60947-5-1
- Certifications
- CEISO 9001RoHSUL
Technical Details
Ingress Protection
IP40

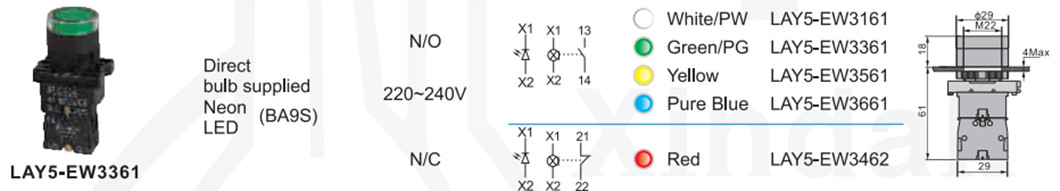

Contact Configuration
| Code | Configuration |
|---|---|
| 1 | 1NO |
| 2 | 1NC |
| 3 | 2NO |
| 4 | 2NC |
| 5 | 1NO+1NC |
| 6 | 3NO |
| 7 | 2NC+1NO |
| 8 | 2NO+1NC |
