Industrial Waterproof Push Button Switch
This industrial push button switch is designed for demanding applications. The flush-mounted switch features IP67 waterproof protection, ensuring reliable operation in harsh environments.
Technical Specifications
Product Overview
Industrial-Grade Flush Switch

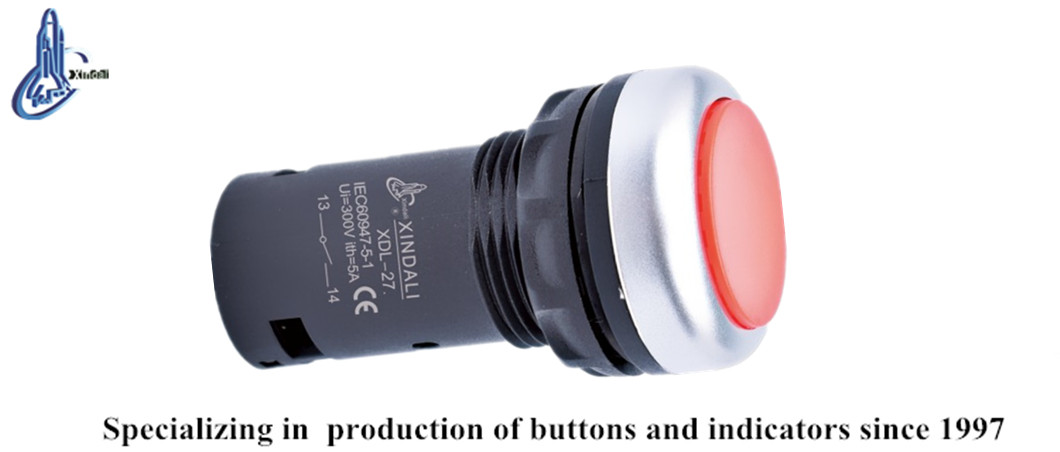

The XDL27-CA45 is a high-performance industrial push button switch engineered for reliability in demanding control environments. Featuring an IP67 waterproof rating, this flush-mounted switch is built to withstand dust and moisture ingress while maintaining operational safety. Constructed with advanced silver alloy contacts and durable anti-flam plastic, it ensures long-term electrical stability for complex control circuit applications.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
10 A
Heating Current
50 MΩ
Insulation Resistance
Mechanical Durability
1,000,000 cycles
Pushbutton Life
500,000 cycles
Electrical Life
- Compliance
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1

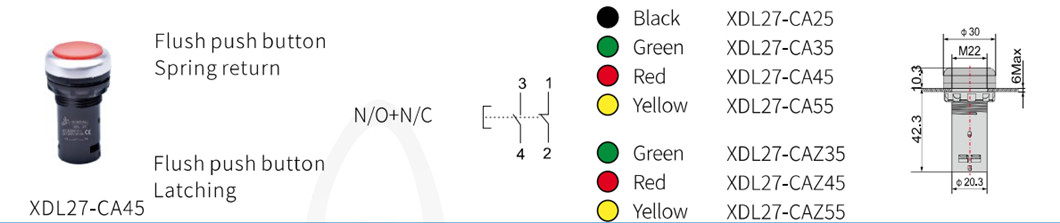

Installation Data
Dimensions & Mounting
| Parameter | Value |
|---|---|
| Mounting Hole Diameter | 22mm |
| Panel Thickness Max | 6mm |
| Head Diameter | 30mm |
| Body Length | 42.3mm |
