Industrial Hoist Flush Push Button Switch
This industrial push button switch is designed for hoist applications. It features a flush mount and push-to-start functionality.

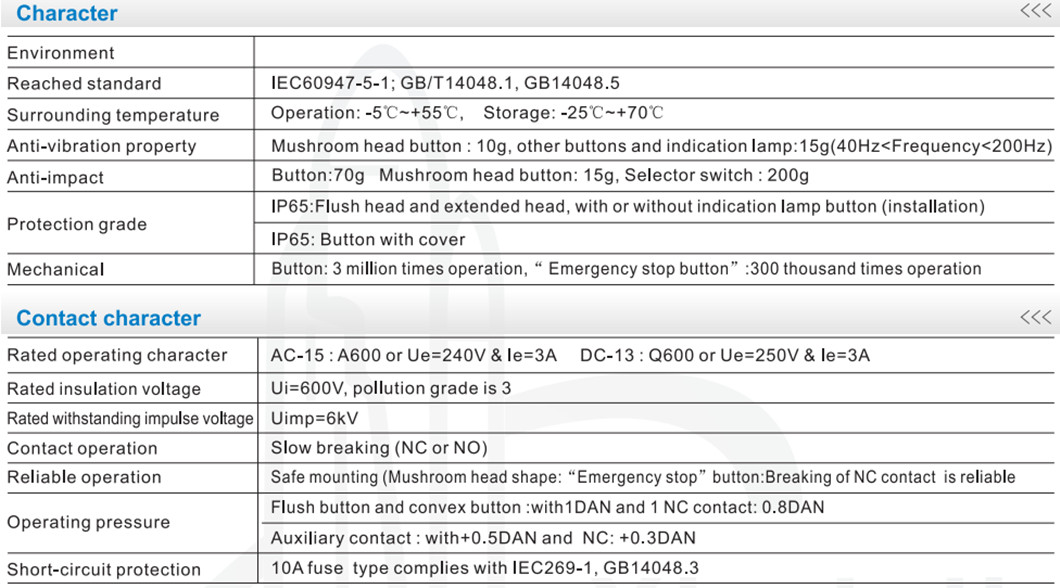

Technical Specifications
Product Overview
Industrial-Grade Flush Push Button
This industrial push button switch is engineered for demanding hoist and control systems. Featuring a robust zinc alloy and high-grade anti-flame plastic construction, it ensures reliable operation in complex electrical circuits. Designed for safety and durability, it includes specialized silver alloy contacts that provide superior resistance to electrical erosion.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Contact Configurations
- Normally Open (NO)Normally Closed (NC)
- Short-Circuit Protection
- 10A Fuse (IEC269-1 compliant)
Environmental Performance
Protection Grade
- IP40
- IP54
- IP65
- IP66
- IP67
- IP68
- Operating Temperature
- -5°C to +55°C
- Relative Humidity
- 35% - 85% RH
Mechanical Characteristics
Mechanical Durability
3,000,000 Cycles
Standard Push Button
300,000 Cycles
Emergency Stop Button

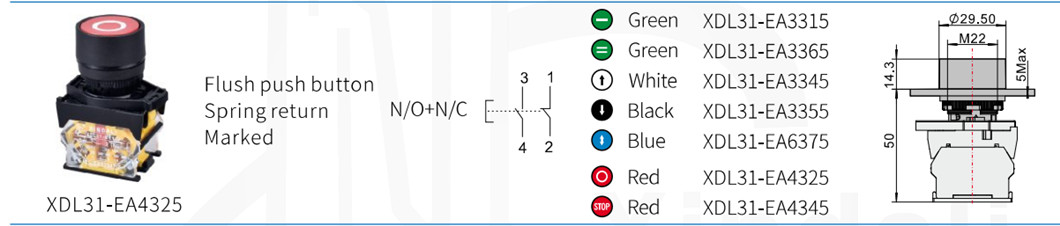

Dimensions
| Parameter | Value |
|---|---|
| Mounting Hole | M22 |
| Overall Diameter | 29.5 mm |
| Height | 50 mm |
| Max Thickness | 5 mm |
Standards and Certification
Approvals
CEISO 9001RoHSULIEC60947-5-1
