Technical Specifications
Product Overview
Industrial Emergency Control

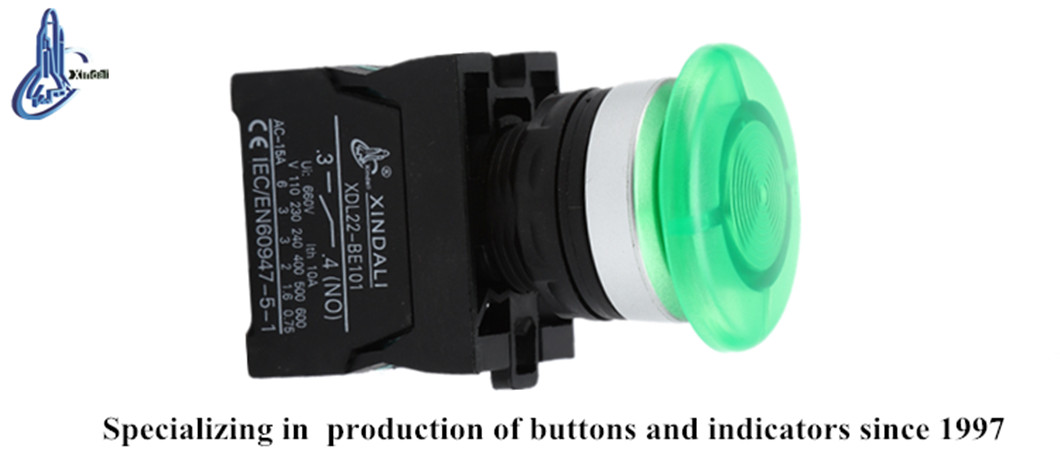

This illuminated emergency stop push button switch is designed for reliable operation in demanding industrial environments. Built with a combination of high-grade anti-flame plastic and zinc alloy, the unit offers excellent impact and vibration resistance. It features an integrated LED indicator for quick status identification and is rated for high-voltage applications up to 660V, ensuring robust performance in safety circuits.
Electrical Ratings
Electrical Characteristics
| Metric | Value |
|---|---|
| Max AC Voltage | 660V |
| Max DC Voltage | 400V |
| Thermal Current (Ith) | 10A |
| Fastening Torque | 0.8Nm (Max 1.2Nm) |
Environmental Performance
Operating Conditions
55 °C
Max Operating Temp
-25 °C
Min Storage Temp
85 %RH
Max Relative Humidity
Certifications & Compliance
- Standards and Certifications
- CEISO 9001ROHSULIEC60947-5-1
Protection & Durability
IP Protection Level
IP65IP66IP67IP68
