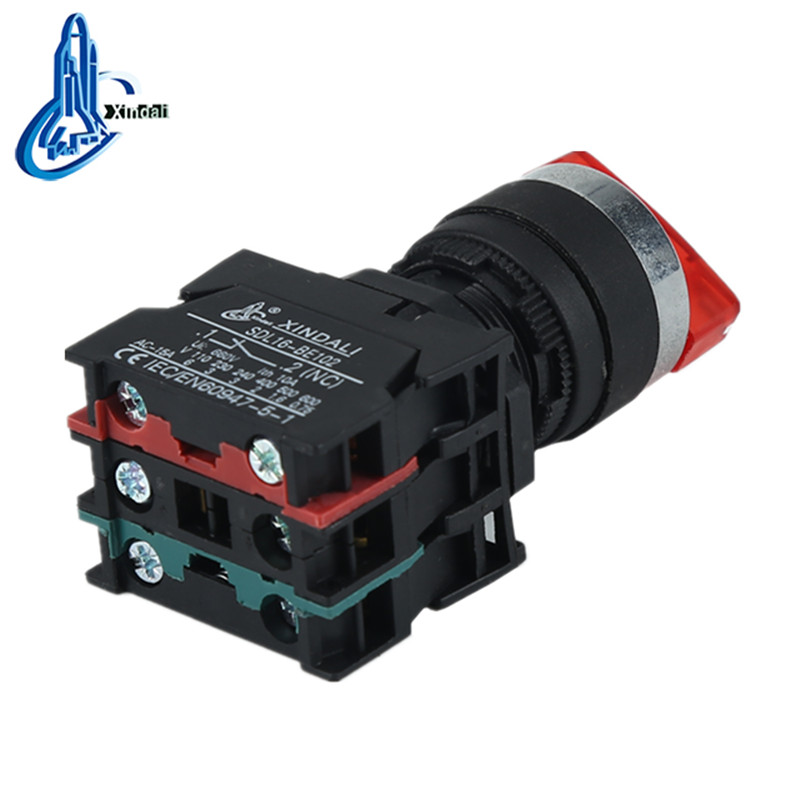

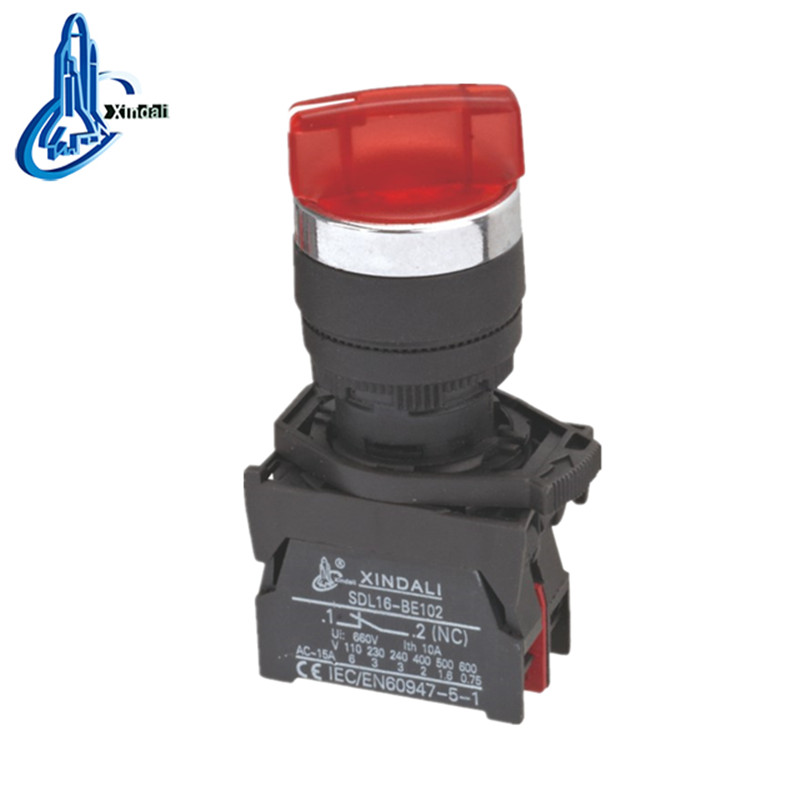

Illuminated Push Button Switch with Spring Return
This push button switch features integrated LED lights for clear indication and a spring return mechanism for reliable operation. The 2-position functionality makes it suitable as a selector or standard on/off switch.
Technical Specifications
Overview
Industrial Illuminated Push Button Switch
This high-performance illuminated push button switch is engineered for demanding industrial environments. It features a reliable spring return mechanism and versatile 2-position functionality, making it ideal for signal control, emergency signaling, and interlocking applications. Built with high-grade anti-flame plastics and silver alloy contacts, this unit ensures high electrical conductivity and long-lasting durability for control cabinets, power stations, and communication networks.
Technical Parameters
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- >=50MΩ
- Contact Resistance
- <=25mΩ
Performance Metrics
Mechanical Durability
3,000,000 ops
Standard Button
300,000 ops
Emergency Stop
Environmental Specifications
Protection Class
IP65
- Operating Temperature
- -5°C to +55°C
Compliance
- Certifications & Standards
- CERoHSISO9001IEC60947-5-1GB/T14048.1

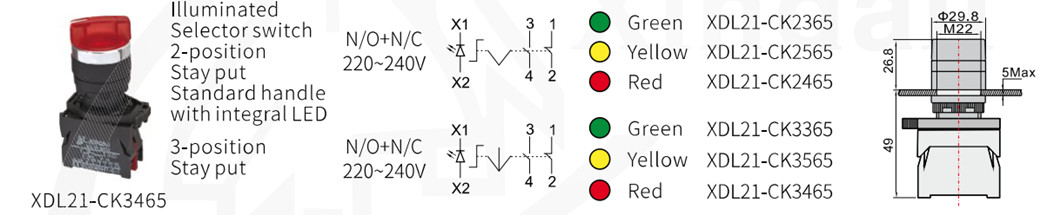

Dimensions
Mounting and Dimensions
| Feature | Value |
|---|---|
| Mounting Diameter | 22mm |
| Thread Type | M22 |
| Overall Height | 49mm |
| Button Diameter | 29.8mm |
