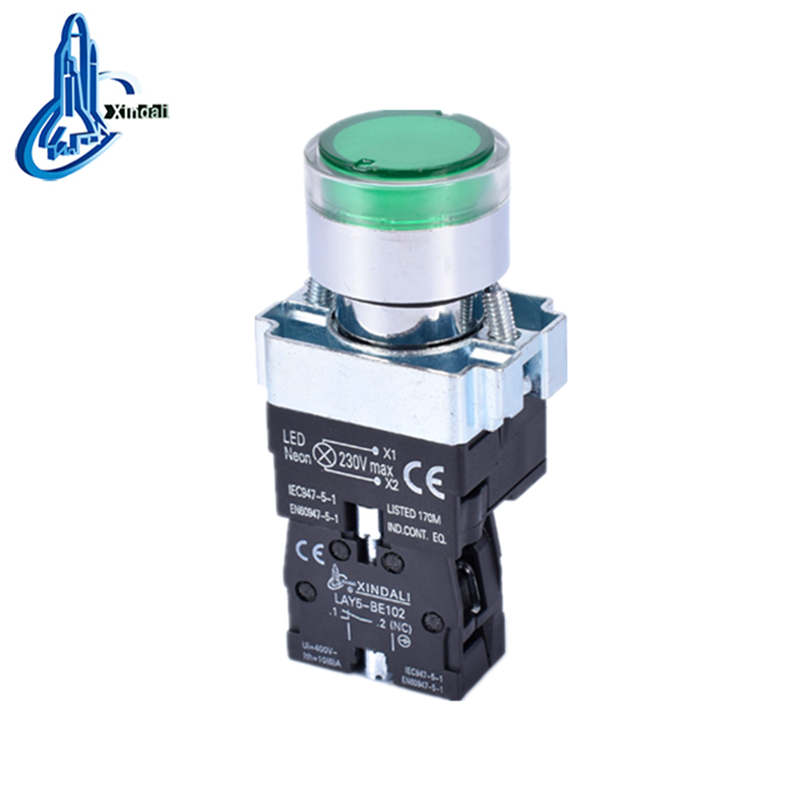

Illuminated Push Button Switch with LED Indicator
This illuminated push button switch provides clear visual signaling with its integrated LED indicator. It is suitable for use in control panels and machinery requiring reliable switching.
Technical Specifications
Overview

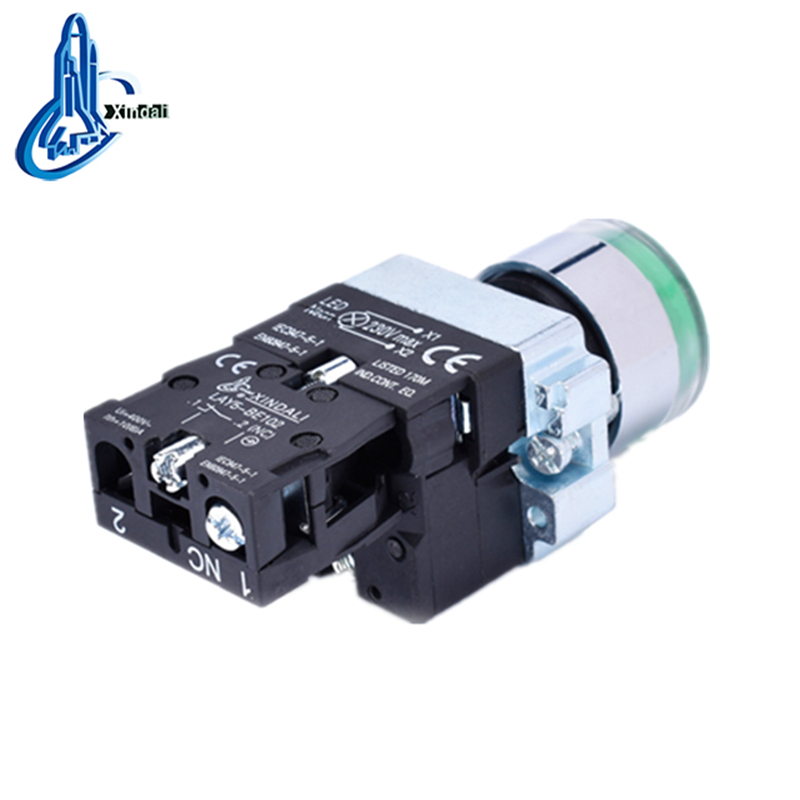

Industrial Illuminated Push Button
This illuminated push button switch is designed for reliable control in industrial environments, suitable for circuits up to 660V AC or 400V DC. Constructed with a durable zinc alloy and anti-flame plastic body, it features high-grade silver alloy contacts for superior electrical erosion resistance. The integrated LED indicator provides clear visual status signaling, making it an ideal choice for control panels, machinery, and warning systems.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- LED Brightness
- 60 cd/m²
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Certifications
CEISO 9001RoHSUL Listed
- Compliance Standards
- GB/T14048.1IEC60947-5-1EN60947-5-1

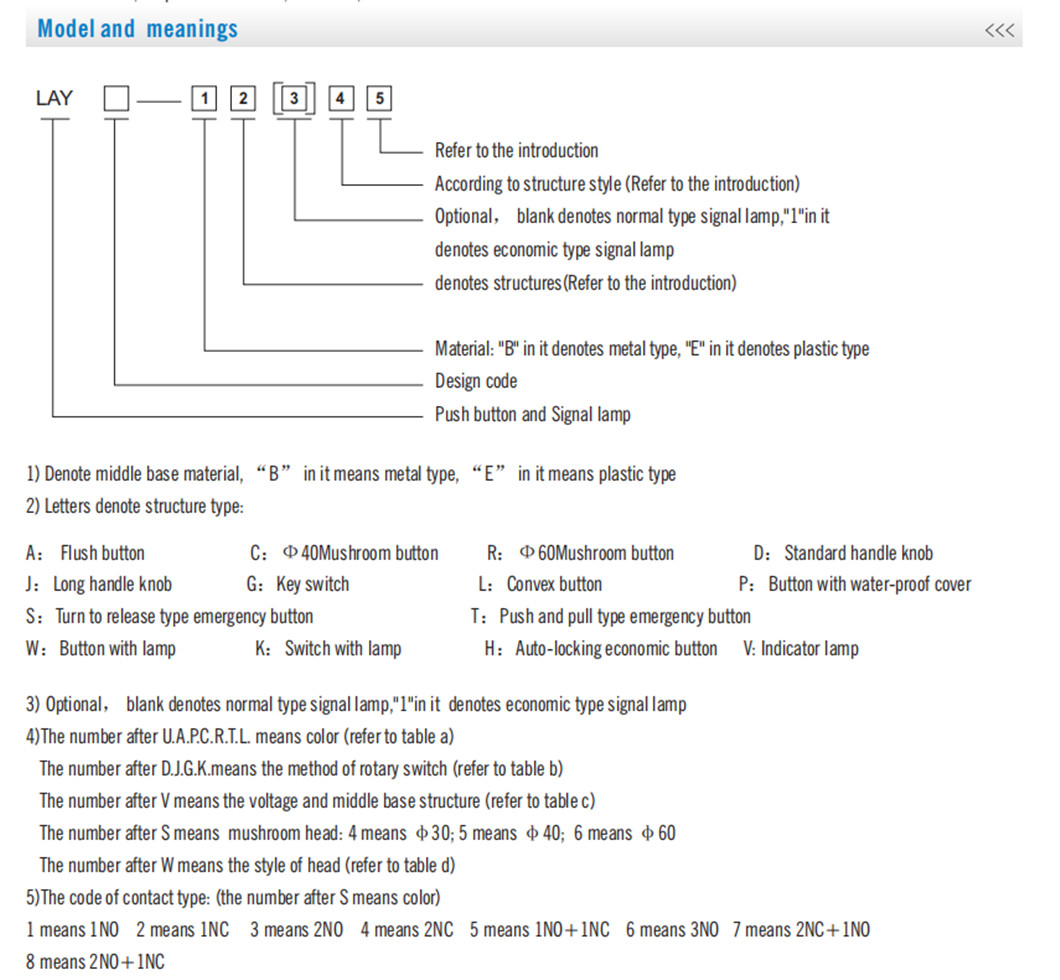

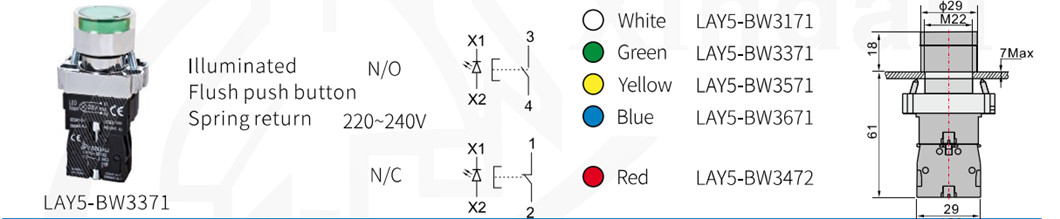

Physical Dimensions
Mounting Dimensions
| Parameter | Value |
|---|---|
| Mounting Thread | M22 |
| Diameter | 29mm |
| Max Panel Thickness | 7mm |
| Total Height | 61mm |
