Illuminated Push Button Switch IP67
This illuminated push button switch is designed for use in circuits up to 660V AC. It features an LED indicator and IP67-rated waterproof protection.
Technical Specifications
Overview

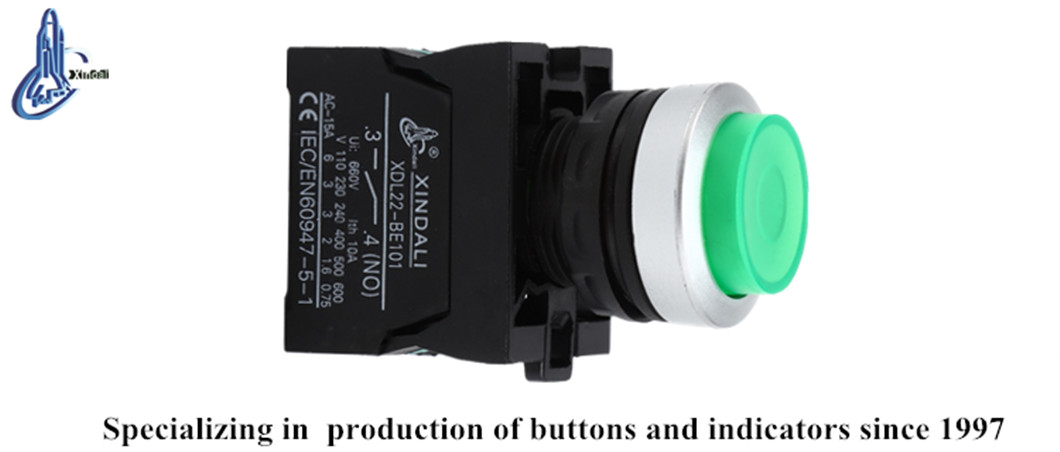

Industrial Illuminated Push Button Switch
This high-performance illuminated push button switch is designed for demanding industrial control circuits, supporting AC voltages up to 660V and DC applications. Engineered with zinc alloy and high-grade anti-flammable plastic, it features silver alloy contacts for superior electrical erosion resistance. With an IP67 rating, this switch ensures reliable operation in environments exposed to dust and moisture.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current (Ith)
Environmental Resilience
| Parameter | Value/Standard |
|---|---|
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |
| Vibration Resistance | IEC 68-2-6 |
IP Protection Level
IP65IP66IP67IP68
Mechanical Details
- Mounting Torque
- 0.8 Nm
- Mechanical Life
- 300,000 cycles for push/pull; 30,000 cycles for emergency
Certifications
- Standards & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
