Illuminated Mushroom Head Push Button Switch IP67
This illuminated mushroom head push button switch is designed for elevator control panels and industrial applications. It features an IP67 rating, ensuring protection against dust and water ingress.
Technical Specifications
Overview
Professional Mushroom Head Push Button Switch

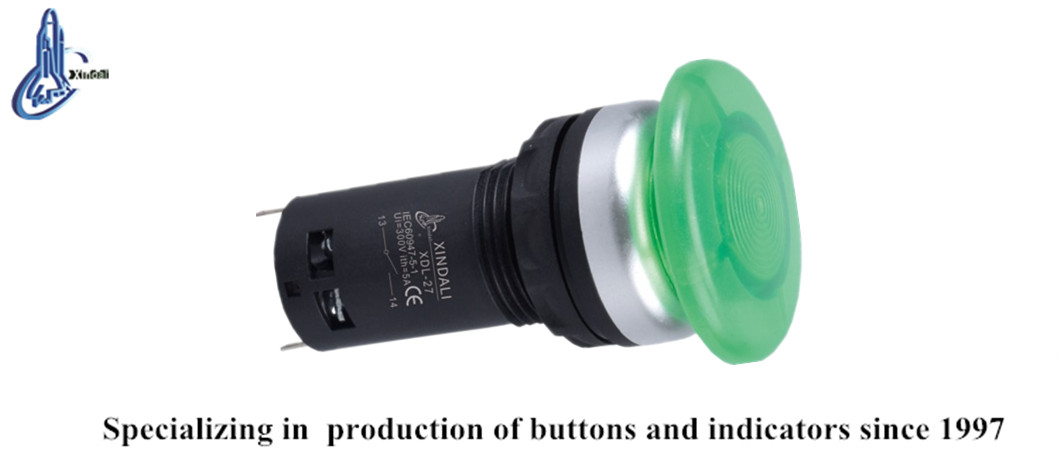

This XDL27-CWM31 illuminated push button switch is engineered for demanding elevator control panels and industrial signaling applications. Featuring a robust IP67-rated construction, it ensures reliable operation against dust and liquid ingress in harsh environments. Designed with high-grade zinc alloy and anti-flame plastics, it provides excellent durability for long-term electrical circuit control.
Certifications
- Certifications & Standards
- CEISO 9001ROHSULIEC60947-5-1GB/T14048.1
Electrical Ratings
Key Electrical Performance
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
Technical Specifications
Operational Parameters
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | AC 2.5KV/min |
| Signal Brightness | 60cd/m2 |
| Operating Temperature | Continuous 10x10000h |
Mechanical Data
Service Life
- Pushbutton Mechanical Life: 1,000,000 cycles
- Selector Switch Mechanical Life: 500,000 cycles
- Pushbutton Electrical Life: 5,000,000 cycles
- Selector Switch Electrical Life: 250,000 cycles
Environmental Protection
IP67
