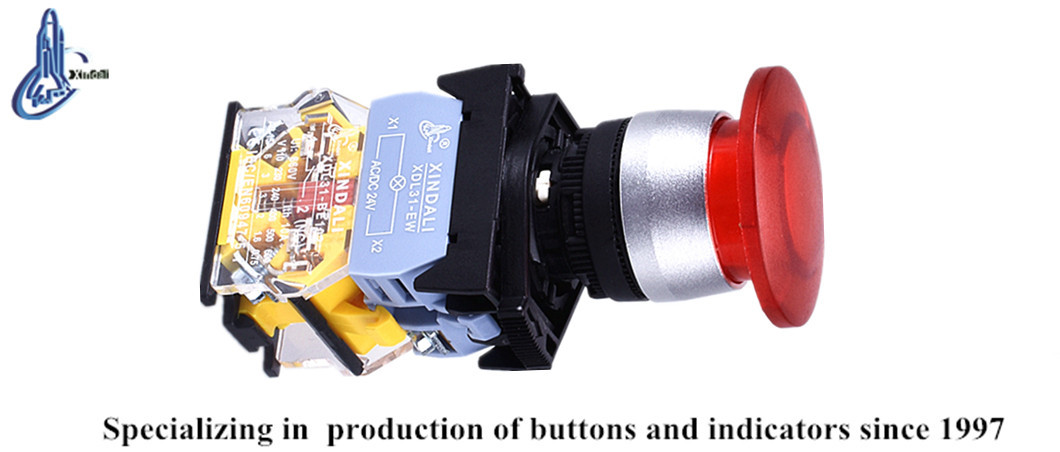

Illuminated Mushroom Head Push Button Switch
This mushroom head push button switch is designed with a metal spring return and an integrated light. It is suitable for use in control panels, machinery, and other equipment where a robust and easily accessible emergency stop or control button is required.
Technical Specifications
Product Overview
Industrial Illuminated Mushroom Push Button

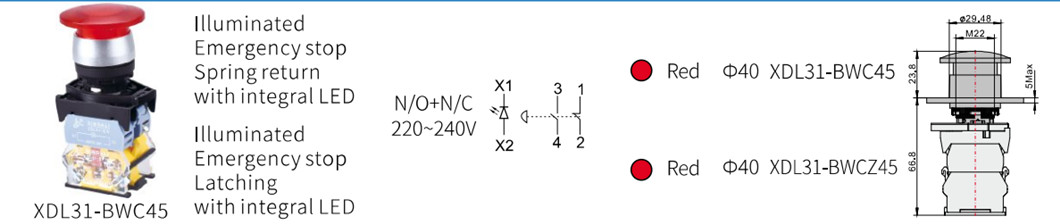

The XDL31-BWC45 is a robust mushroom-head push button switch engineered for industrial control and emergency stop applications. Featuring a durable metal construction and spring return mechanism, it ensures reliable operation in demanding environments. Integrated LED illumination allows for instant status identification, while its modular design facilitates quick integration into control circuits.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Contact Operation
- Slow breaking (NC or NO)
- Short-circuit Protection
- 10A fuse (IEC269-1 / GB14048.3)
Operating Environment
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35-85% RH
Mechanical Characteristics
Protection Grade
IP40IP54IP65IP66IP67IP68
Mechanical Life
3,000,000 operations
Standard Button
300,000 operations
Emergency Button
Compliance
- Certified Standards
- CEISO 9001RoHSULIEC60947-5-1
