Illuminated Emergency Stop Push Button Switch with Spring Return
This emergency stop push button switch features a spring return mechanism and integrated illumination. Designed for safety-critical applications, the switch ensures reliable operation and clear visual indication.
Technical Specifications
Product Overview
Industrial Emergency Stop Switch

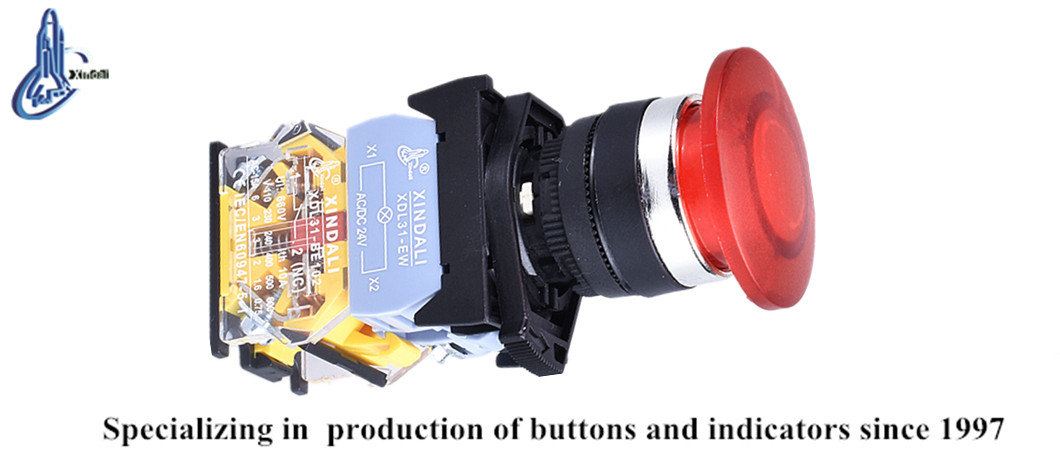

The XDL31-CWC45 emergency stop push button switch is a high-performance control component engineered for critical safety circuits in industrial environments. Featuring a robust spring return mechanism and integrated illumination, this switch provides immediate machinery shutdown with clear visual status indication. Constructed with high-grade anti-flame materials and silver alloy contacts, it ensures long-term reliability and excellent electrical erosion resistance.
Technical Specifications
Rated Operating Capacity
600 V
Insulation Voltage
6 kV
Impulse Voltage
3 A
Operating Current (AC-15)
Environmental Resilience
| Metric | Specification |
|---|---|
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |
Certifications & Standards
- Industry Standards
- IEC60947-5-1GB/T14048.1GB14048.5CEULRoHSISO9001

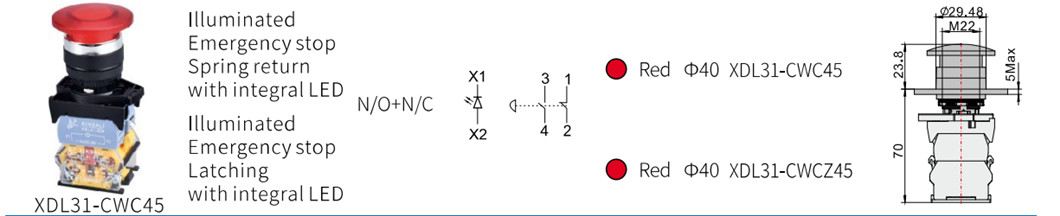

Mechanical Performance
Ingress Protection Rating
IP65IP66IP67IP68
Mechanical Lifespan
- Standard Button: 3,000,000 cycles
- Emergency Stop Button: 300,000 cycles
