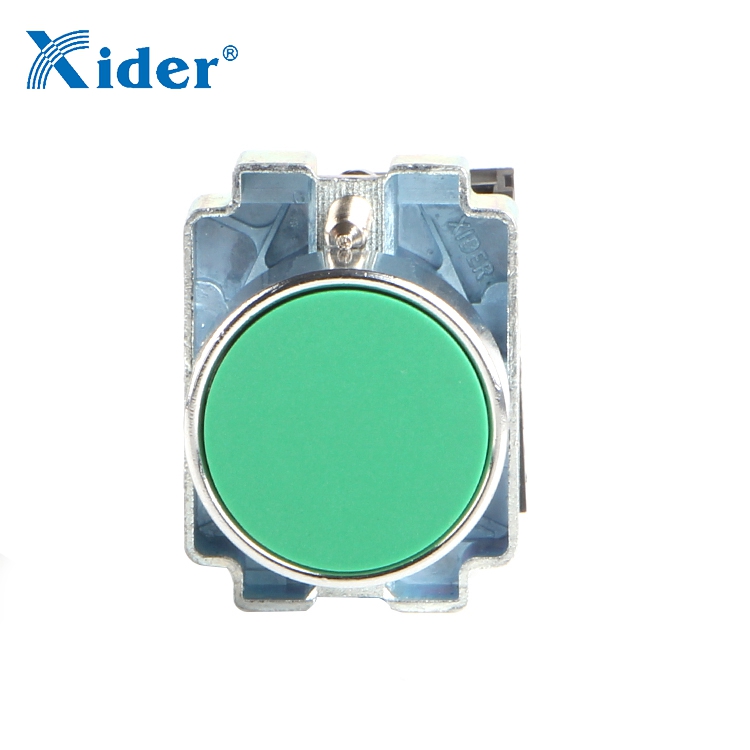

Green Push Button Switch for Industrial Control

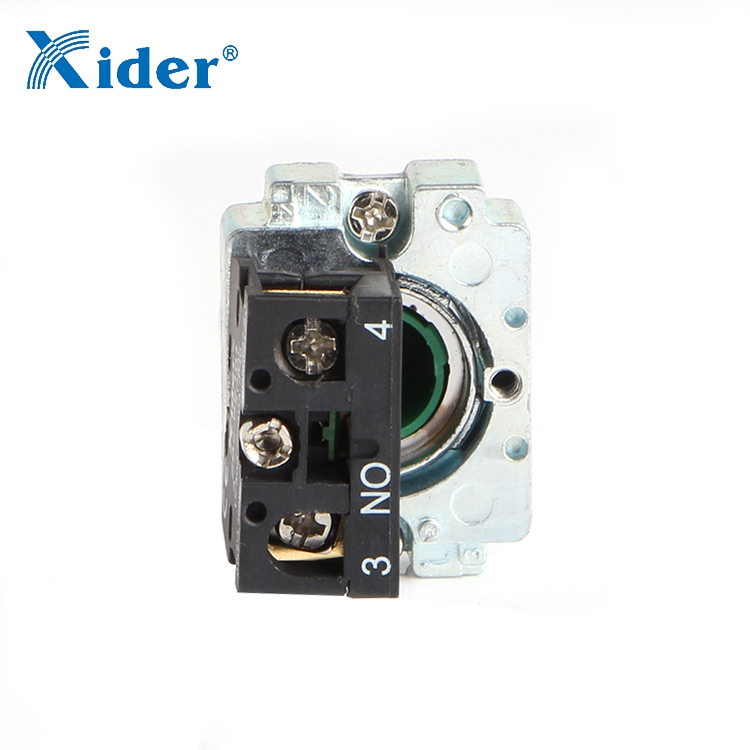

This push button switch is designed for control and signal devices within electric power transmission and distribution systems. The switch features robust construction with clearly marked terminals for easy wiring and integration.
Technical Specifications
Product Overview
Industrial-Grade Push Button Switch
This robust green push button switch is engineered for reliable control and signaling in industrial power transmission and distribution systems. Designed with ergonomic operation in mind, it provides clear visual status and consistent performance in demanding environments. The unit features a standard normally open (NO) contact configuration, ensuring seamless integration into existing control architectures.
Technical Specifications
Electrical Performance
500 V
Rated Insulation Voltage (Ui)
10 A
Rated Thermal Current (Ith)
400 V
Operating Voltage
- Contact Type
- Normally Open (NO)
- IP Protection
- IP40
Compliance and Standards
Standards Compliance
- IEC60947-5-1
- EN60947-1
- Certifications
- CE
