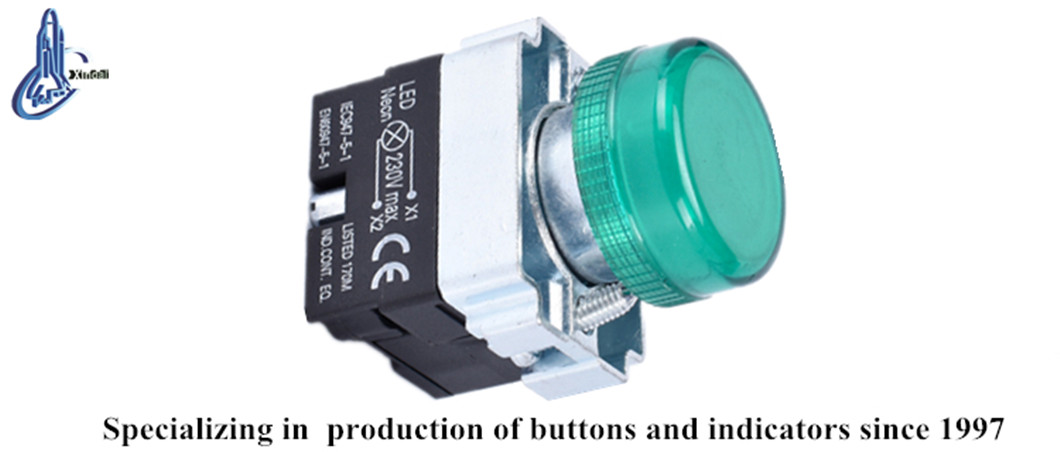

Green Neon Illuminated Push Button Switch
This green neon push button switch is designed for circuit control in industrial applications. It features an illuminated button for clear visual indication.
Technical Specifications
Overview
Industrial Illuminated Control Switch
The LAY5-BV63 series is a high-performance green neon illuminated push button switch designed for demanding industrial environments. Constructed with a durable zinc alloy body and high-grade anti-flame materials, it ensures reliability in controlling circuits up to 660V AC or 400V DC. Featuring specialized silver alloy contacts for superior electrical erosion resistance, this switch is an ideal solution for signal indication, warning systems, and interlocking control applications in distribution cabinets and control panels.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Withstand Voltage
- AC 2.5KV/min
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Voltage Wave Tolerance
- ±20%
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
- Certifications
- CEISO9001RoHSULIEC60947-5-1

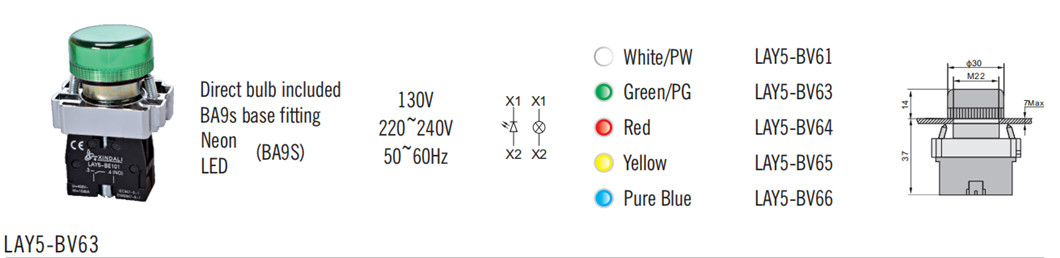

Design & Construction
Physical Characteristics
| Feature | Specification |
|---|---|
| Mounting Hole Diameter | 22mm |
| Button Diameter | 30mm |
| Main Body Material | Zinc Alloy / Anti-flam Plastic |
| Illumination Type | Neon / LED |
| Bulb Base | BA9s |
