Green LED Mushroom Push Button Switch
This mushroom push button switch features a green LED indicator for clear visual signaling. It is designed for use in controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial LED Mushroom Switch

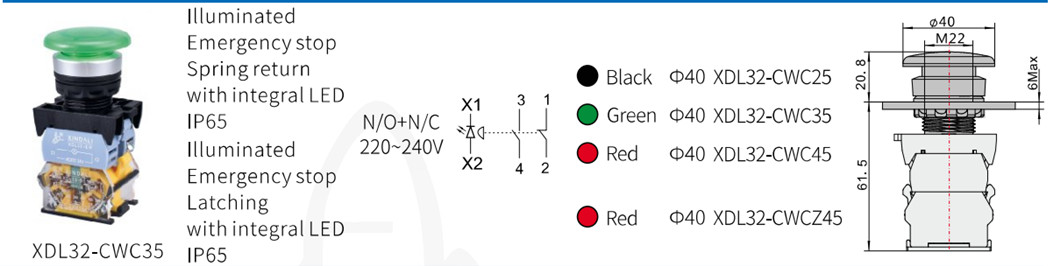

The XDL32-CWC35 is a high-performance mushroom push button switch integrated with a green LED indicator. Engineered for reliability in industrial control circuits, it supports AC voltages up to 660V and DC voltages up to 400V. Featuring a durable construction with zinc alloy and high-grade anti-flam plastics, this switch is designed to withstand harsh operating conditions while providing clear visual signal indication.
Key Features
Protection Grade
IP65IP66IP67IP68
- Certifications
- CEISO 9001RoHSULIEC60947-5-1
Electrical Specifications
Rated Insulation Voltage
600 V
Ui
6 kV
Uimp
- Rated Thermal Current (Ith)
- 10 A
Environmental Conditions
- Operating Temperature Range
- -5°C to +55°C
- Relative Humidity
- 35-85% RH
Mechanical Specifications
Mechanical Endurance
| Component | Cycles |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Stop Button | 300,000 |
Installation Parameters
- M22 Mounting Standard
- Fastening Torque: 0.8Nm (Max: 1.2Nm)
- Pollution Grade 3
- Installation Category III
