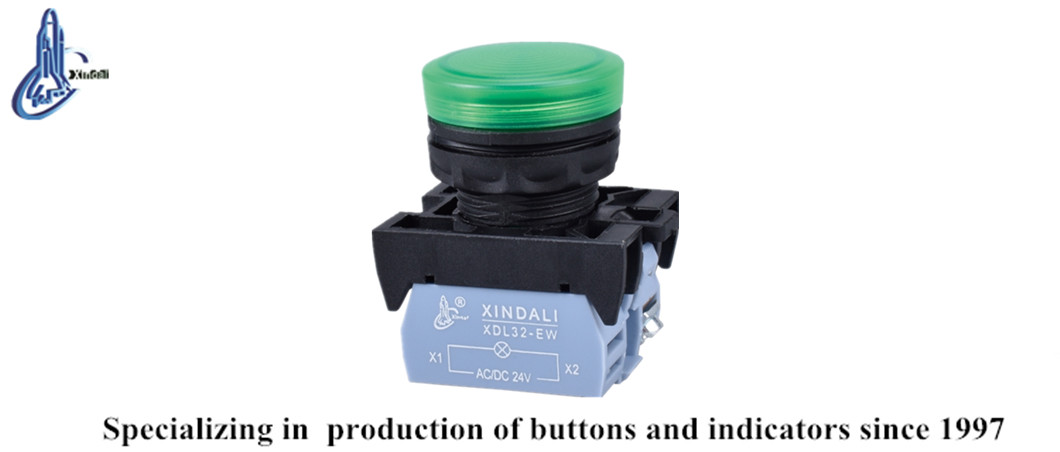

Green LED Indicator Pushbutton Switch
This is a combination device featuring a green LED indicator lamp integrated with a pushbutton switch. It is designed for use in electrical control panels and industrial automation applications.
Technical Specifications
Overview
Industrial Illuminated Control Switch
This high-performance illuminated pushbutton switch features an integrated green LED indicator, specifically designed for industrial control panels and automation applications. Built with a combination of durable zinc alloy and high-grade anti-flam plastic, it ensures long-term reliability in demanding electrical environments. The unit supports versatile signal control functions and complies with international safety standards, making it an ideal choice for machinery and signaling systems.
Electrical Specifications
Voltage Rating
660 V
Max AC Voltage
400 V
Max DC Voltage
- Rated Insulation Voltage
- 600 V
- Rated Impulse Withstanding
- 6 kV
- Short-Circuit Protection
- 10A fuse (IEC269-1 / GB14048.3)
Mechanical Characteristics
Mechanical Life
| Type | Operations |
|---|---|
| Pushbutton | 3,000,000 |
| Emergency Stop | 300,000 |
- Fastening Torque
- 0.8Nm (Max 1.2Nm)
- Mounting Diameter
- 22 mm
Environmental Ratings
IP Rating Options
IP40IP54IP65IP66IP67IP68
- Temperature Range
- Operating: -5°C to +55°C | Storage: -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Compliance
- Certifications
- CEISO 9001RoHSULIEC60947-5-1
