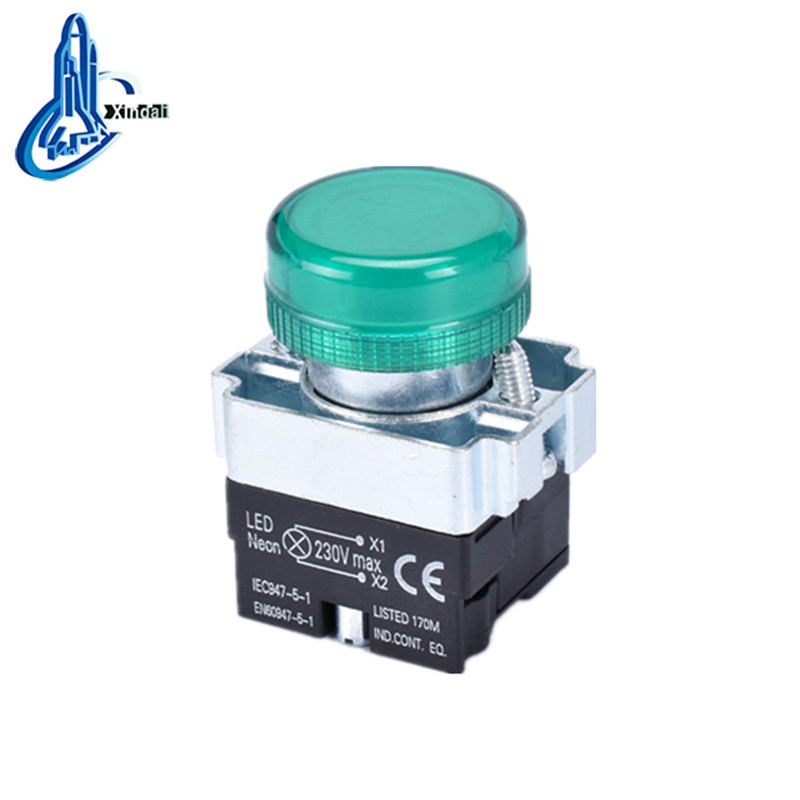

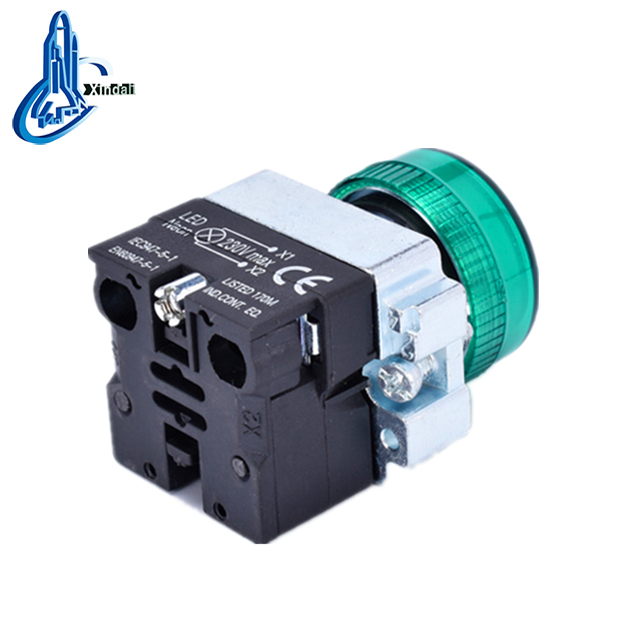

Green Illuminated Push Button Switch
This green illuminated push button switch is designed for industrial control applications. It features an LED or neon indicator for clear signaling.
Technical Specifications
Overview
Industrial Illuminated Push Button
The LAY5-BV63 is a high-performance green illuminated push button switch designed for demanding industrial control environments. Constructed with a durable zinc alloy base and high-grade anti-flame plastic, it ensures long-term reliability in circuits up to 660V AC. This versatile component is ideal for signal, warning, and emergency indication, featuring specialized silver alloy contacts for superior resistance to electrical erosion.
Certifications
CEISO 9001RoHSUL
Electrical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Continuous Working Life
- 100000 h
Physical Specifications

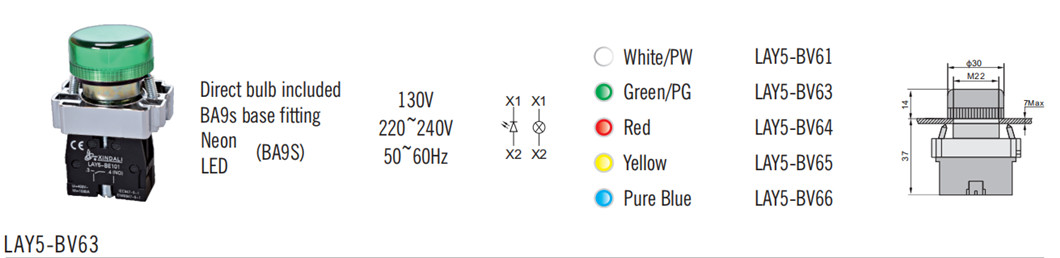

Mounting Dimensions
| Parameter | Value |
|---|---|
| Mounting Size | M22 |
| Diameter | 30mm |
| Max Panel Thickness | 7mm |
| Height | 37mm |
- Construction Materials
- Zinc AlloyAnti-flam PlasticSilver Alloy Contacts
