Four-Stroke Diesel Engine
This four-stroke diesel engine features a vertical, water-cooled design. It utilizes direct injection for efficient combustion and is designed for easy installation.
Technical Specifications
Overview
High-Performance Four-Stroke Diesel Engine
The QC380D is a robust, vertical in-line diesel engine specifically engineered for generator applications. Featuring a four-stroke, water-cooled design with direct injection, it delivers reliable power with high thermal efficiency. This CE and ISO-approved engine is built for durability in demanding industrial environments, offering a compact footprint without compromising on performance.
Certifications
CE ApprovedISO Approved
Performance Metrics
Power Ratings
10 kW
Rated Output @ 1500rpm
12 kW
Rated Output @ 1800rpm
- Fuel Consumption Rate
- 265 g/kw.h
- Smooth Speed Rate
- <=5%
Engine Configuration
- Design Features
- VerticalIn-lineWater-cooledFour-strokeNaturally Aspirated
- Chamber Type
- Direct Injection
- Cylinder Liner Type
- Wet
Technical Interface
Flywheel & Housing Specifications
| Component | Specification |
|---|---|
| Flywheel Ring Gear Teeth | 115 |
| Flywheel Cover Type | SAE 4# |
| Flywheel Type | SAE 7.5# |
Cooling System

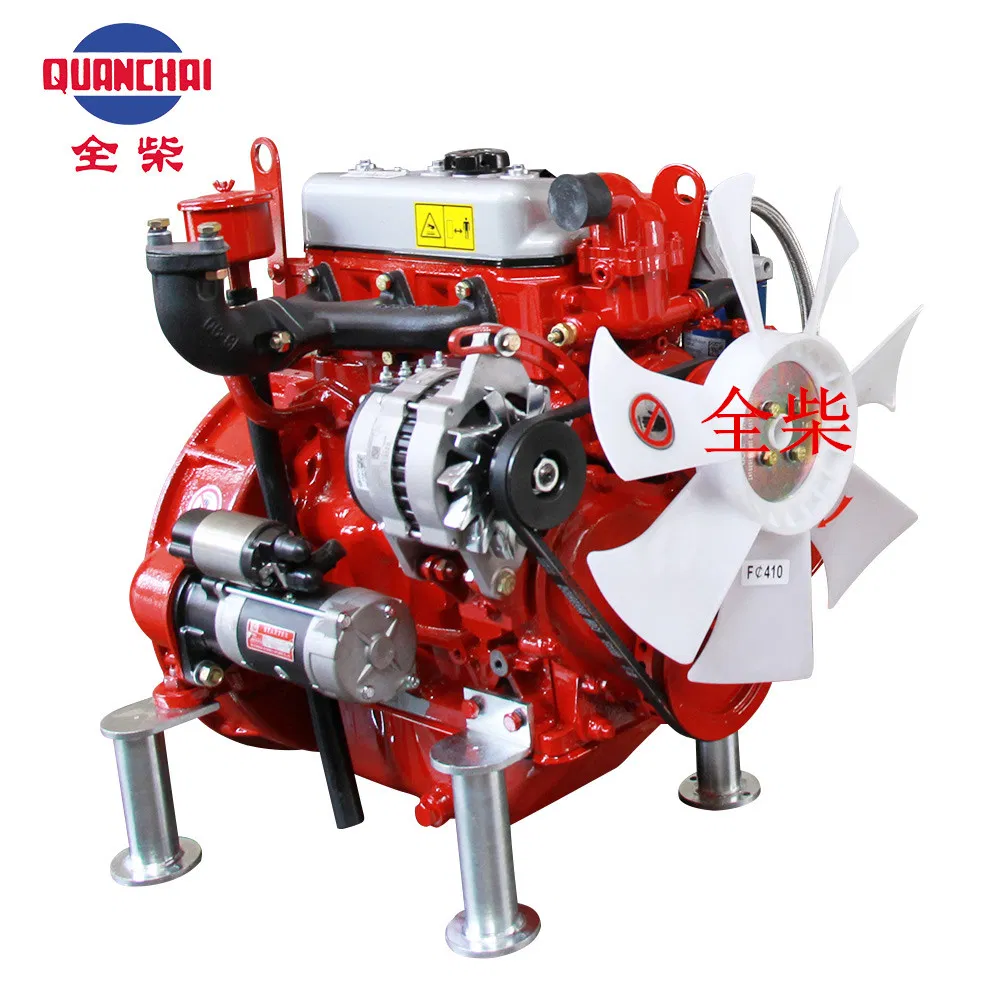

- Cooling Fan Diameter
- 410 mm
Maintenance
Service Guidelines
- Drain and replace fuel filter every 300 hours
- Regular inspection of water-cooling system
- Monitor belt tension for alternator and fan
