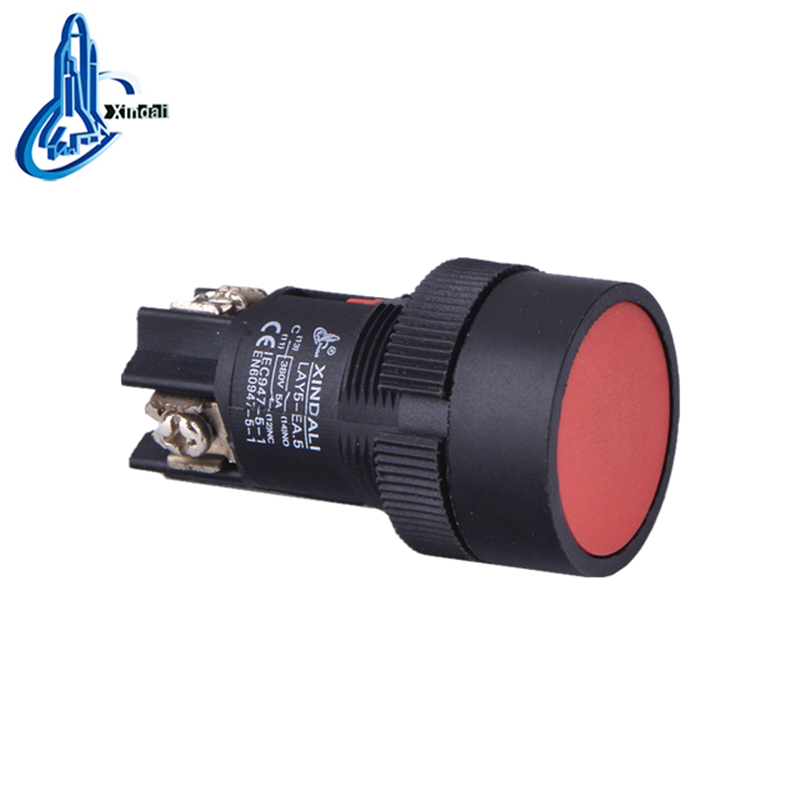

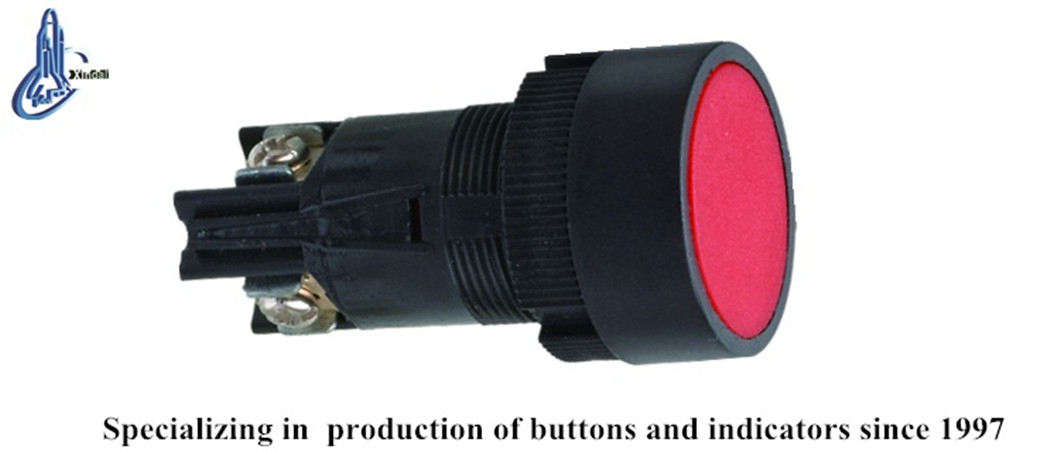

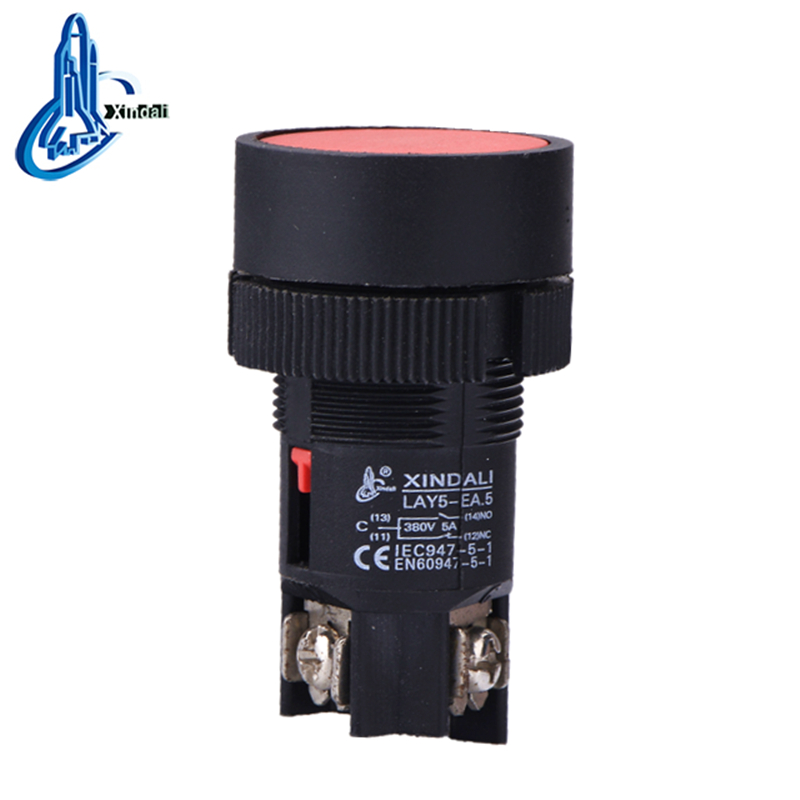

Flush Mount Spring Return Push Button Switch
This flush-mounted push button switch is designed with a spring return mechanism for reliable start/stop control. Its compact design is suitable for various industrial control panels and equipment.
Technical Specifications
Overview
Professional Control Solution
This flush-mounted spring return push button switch is engineered for reliable start/stop control in demanding electrical environments. Featuring a robust construction with high-grade anti-flame plastic and zinc alloy, it offers durability and safety for industrial control panels. The unit is fully compliant with international standards, ensuring seamless integration into AC circuits up to 660V and DC circuits below 400V.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Mechanical Performance
- Mechanical Life (Pushbutton)
- 1000000
- Electrical Life (Pushbutton)
- 5000000
- Mounting Hole Diameter
- 22 mm
- Maximum Panel Thickness
- 6 mm
Certifications
- Standards & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
