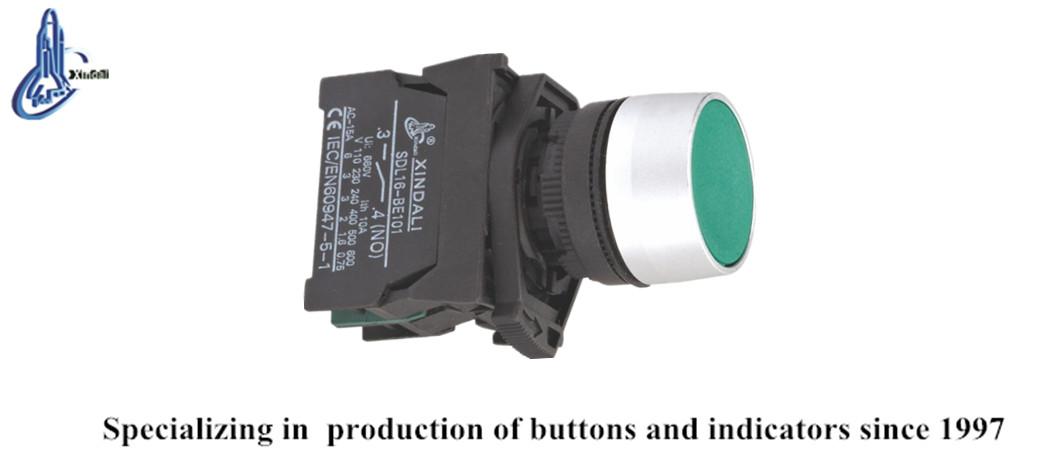

Flush Green IP65 Waterproof Metal Push Button Switch
This flush green push button switch is constructed with metal and has an IP65 waterproof rating. It is designed for use in electrical power applications, such as distribution boxes and control cabinets.
Technical Specifications
Product Overview
Industrial Flush Push Button Switch
This flush-mounted push button switch is engineered for high-performance industrial control circuits. Constructed with a zinc alloy body and high-grade anti-flame plastic, it offers excellent durability and reliability. Designed to operate under harsh conditions, it features an IP65 waterproof rating, making it suitable for demanding electrical environments including control cabinets and power stations.
Technical Specifications

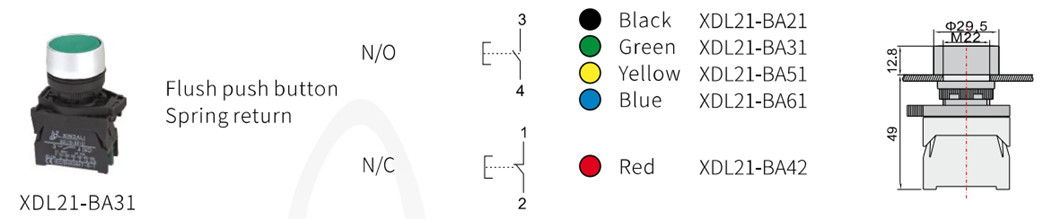

Mounting Dimensions
- Mounting hole diameter: 29.5mm (M22 thread)
- Panel thickness: 12.8mm
- Overall height: 49mm
- Rated Insulation Voltage
- 660 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Mechanical Life
- 1,000,000 cycles
Certifications and Compliance
- Standards & Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Applications
Typical Industrial Use Cases
- Distribution boxes
- Distribution cabinets
- Control cabinets
- Power stations
- Communication networks
