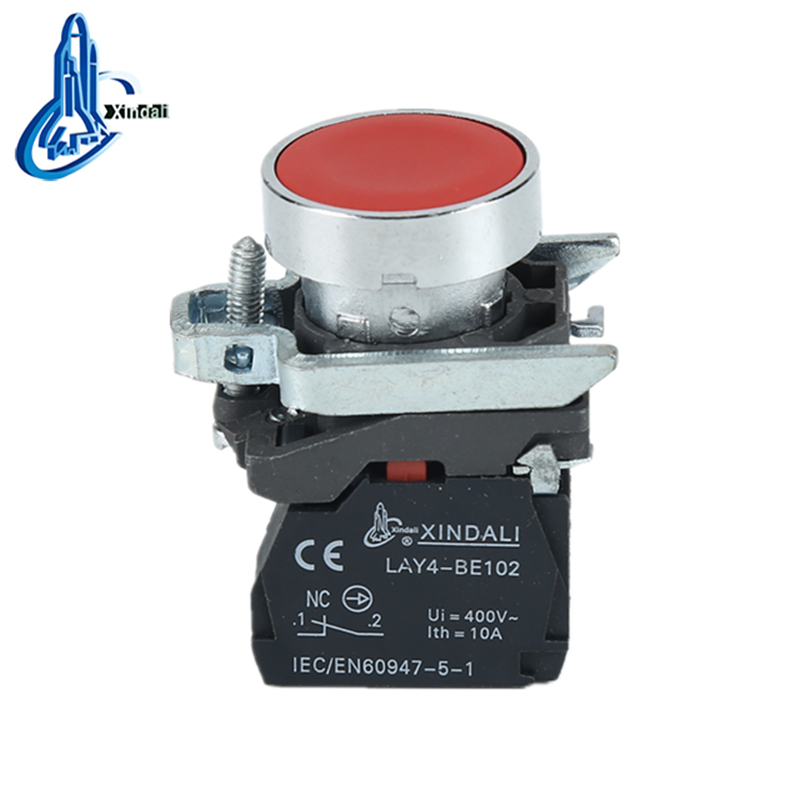

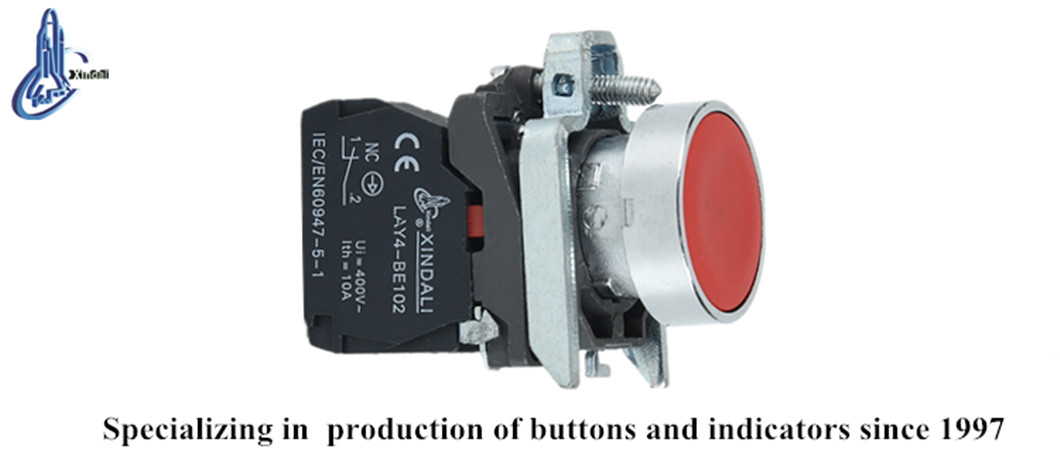

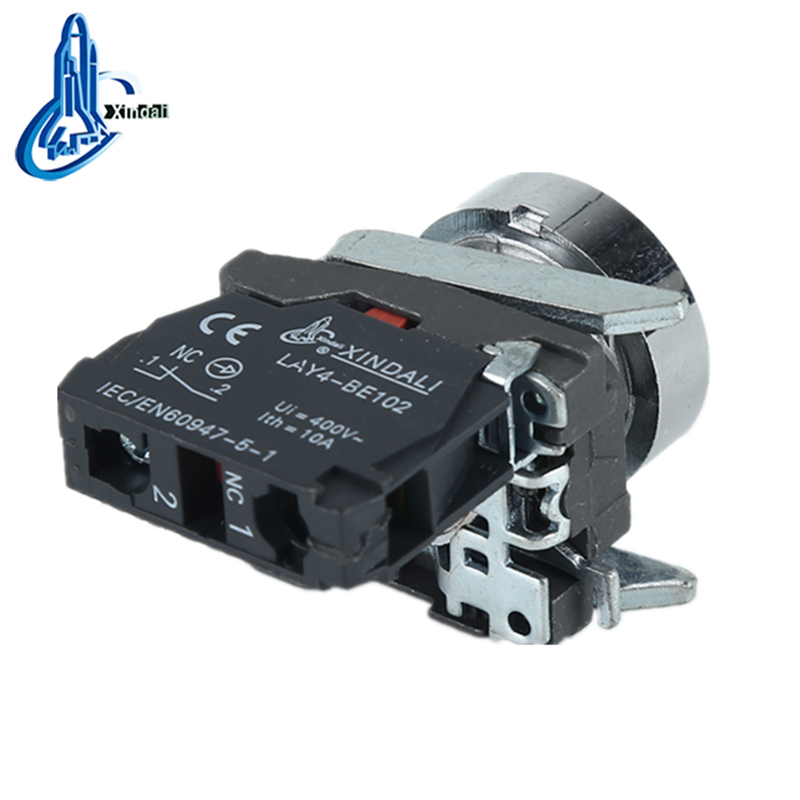

Flush Button Control Box Switch
This flush button switch is designed for use in control boxes, particularly for lifting applications. It features a spring return mechanism and is available in multiple colors.
Technical Specifications
Overview
Industrial Control Flush Button
This flush button control box switch is designed for demanding industrial control circuits, including lifting mechanisms and signal interlocking. Constructed with a zinc alloy body and high-grade anti-flam plastic, it ensures durability and safety in operation. The contacts utilize a special silver alloy to minimize electrical erosion, providing reliable performance for AC circuits up to 660V and DC circuits below 400V.
Technical Ratings
- Conventional Heating Current
- 10 A
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance
- Certifications & Standards
- CEISO 9001ROHSULIEC 60947-5-1GB/T 14048.1
Physical Specifications

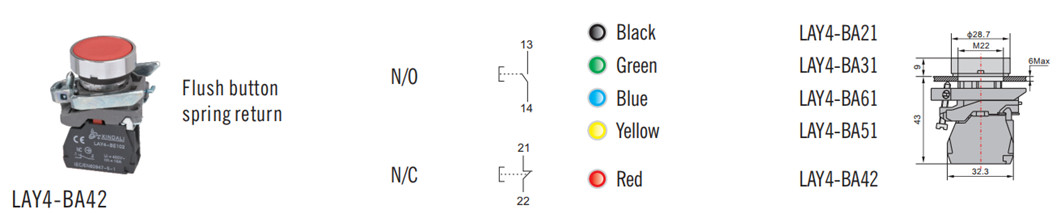

Mounting Dimensions
| Parameter | Value |
|---|---|
| Mounting Diameter | 28.7 mm |
| Thread Type | M22 |
| Base Width | 32.3 mm |
| Height Above Surface | 6 mm |
