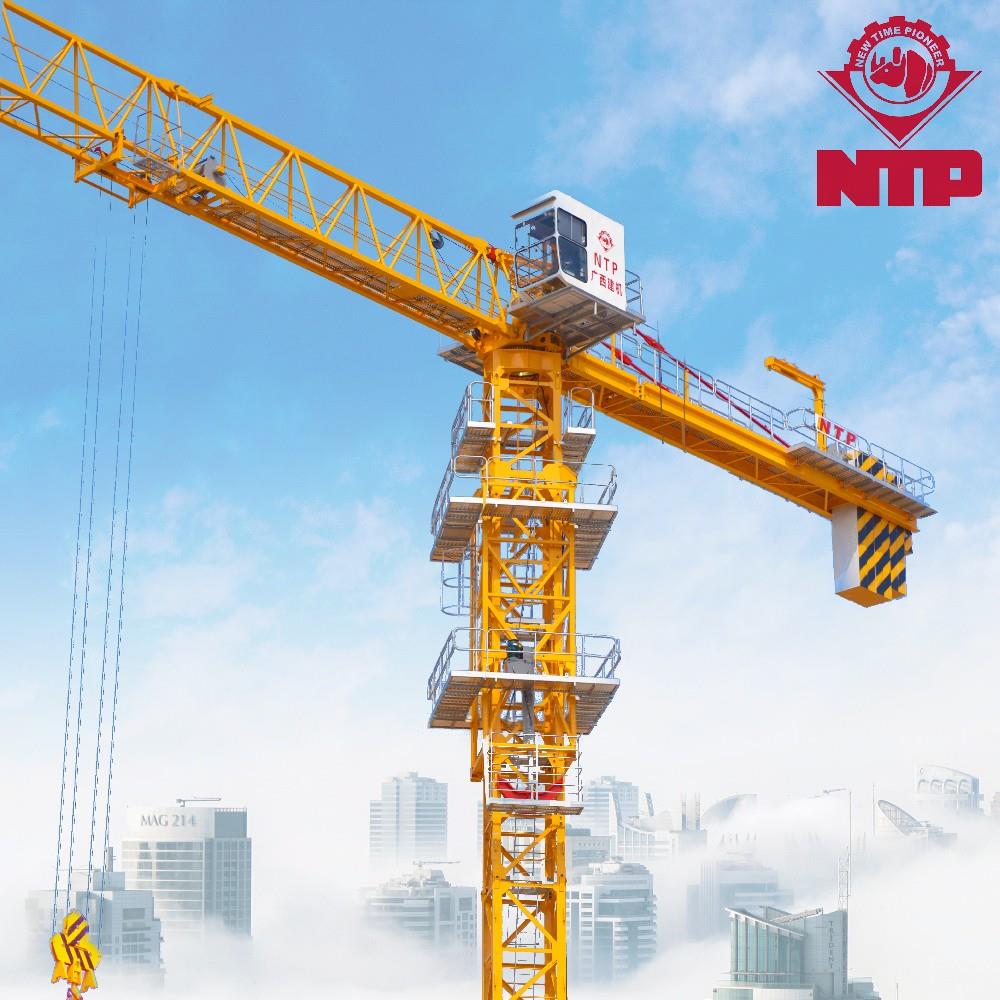

Flat Top Tower Crane
This flat top tower crane features an integrated electrical system and intelligent control for accurate positioning. Its modular structure and quick-assembling design allow for efficient disassembly and safe operation.
Technical Specifications
Overview

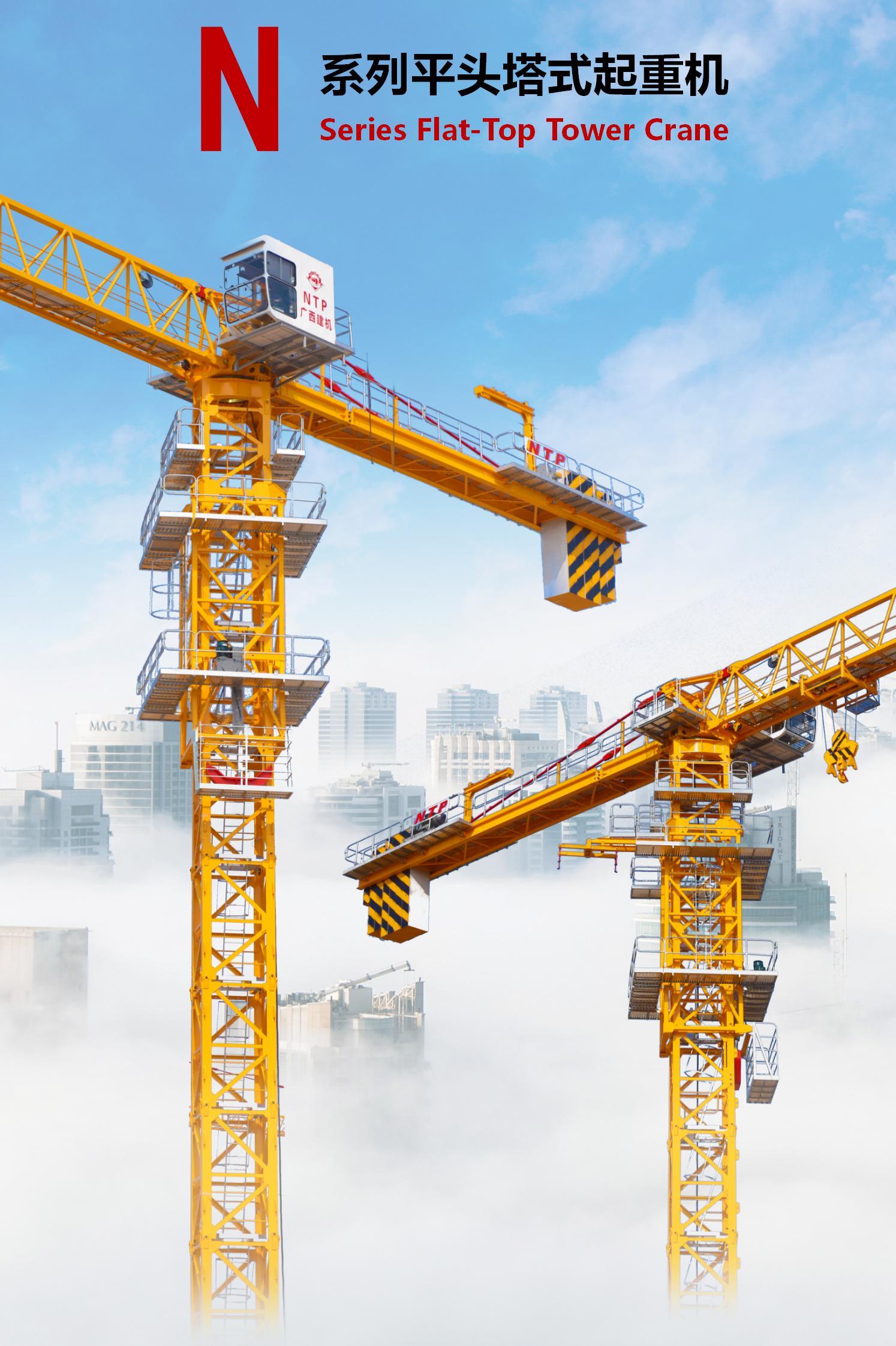

High-Performance Flat Top Tower Crane
This series of flat top tower cranes is engineered for high-performance lifting in demanding construction environments, including high-rise buildings and infrastructure projects. Featuring a modular design with an 80% component interchangeability rate, the system ensures efficient assembly, maintenance, and operational flexibility. Advanced intelligent control systems provide precise, millimeter-level positioning and comprehensive safety monitoring, making it a reliable choice for professional construction sites.

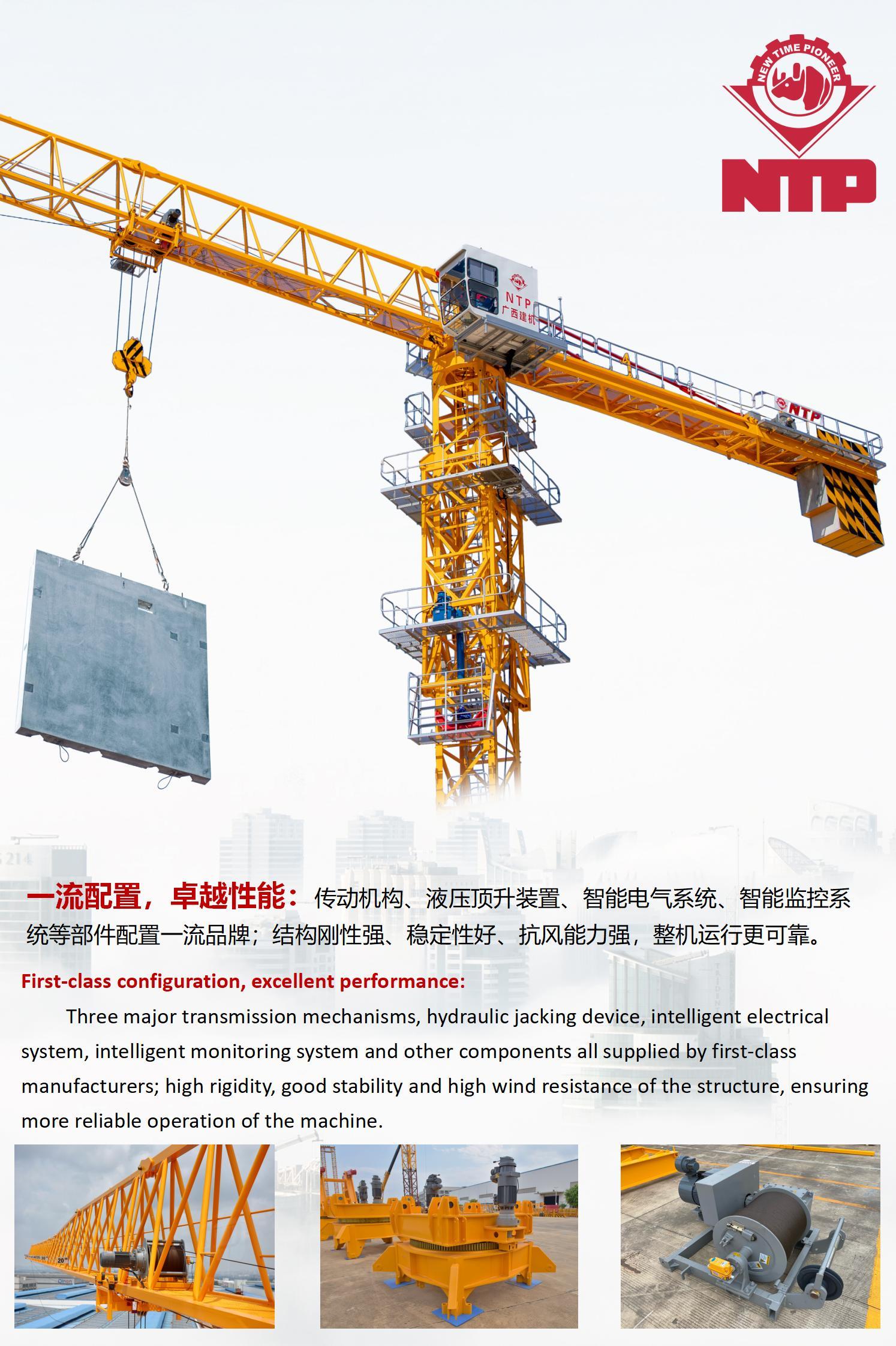

Performance & Control
Control Capabilities
- Zero-speed brake with variable load and speed control
- Millimeter-level accurate low-speed positioning

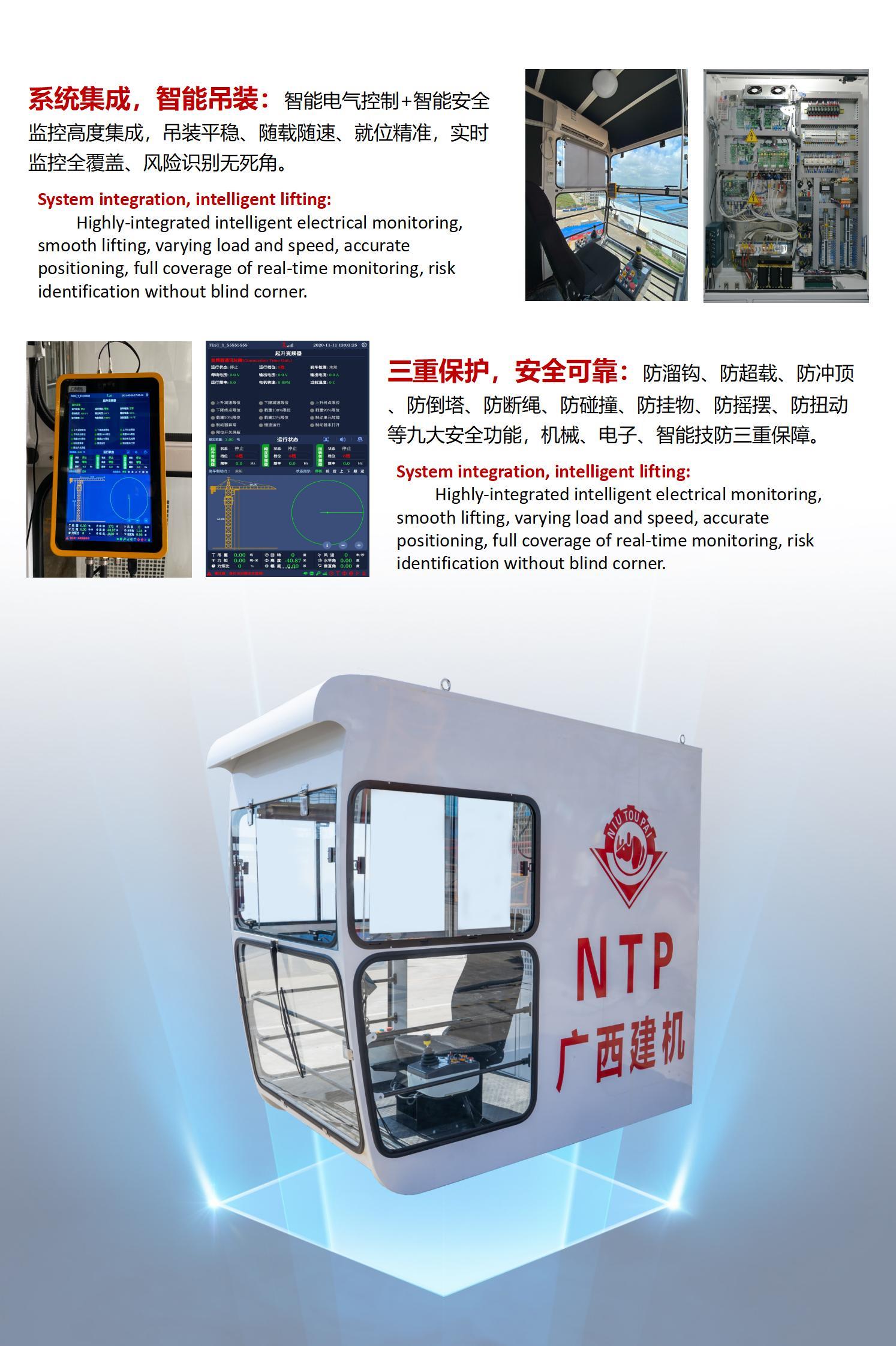

- Integrated electrical control and monitoring in cab
- Real-time risk identification without blind corners
- Safety Protection Systems
- Anti-shakingAnti-overloadAnti-toppingAnti-hook slippageAnti-collisionAnti-rope breakageAnti-swayingAnti-torsion
Design & Assembly
Design Highlights

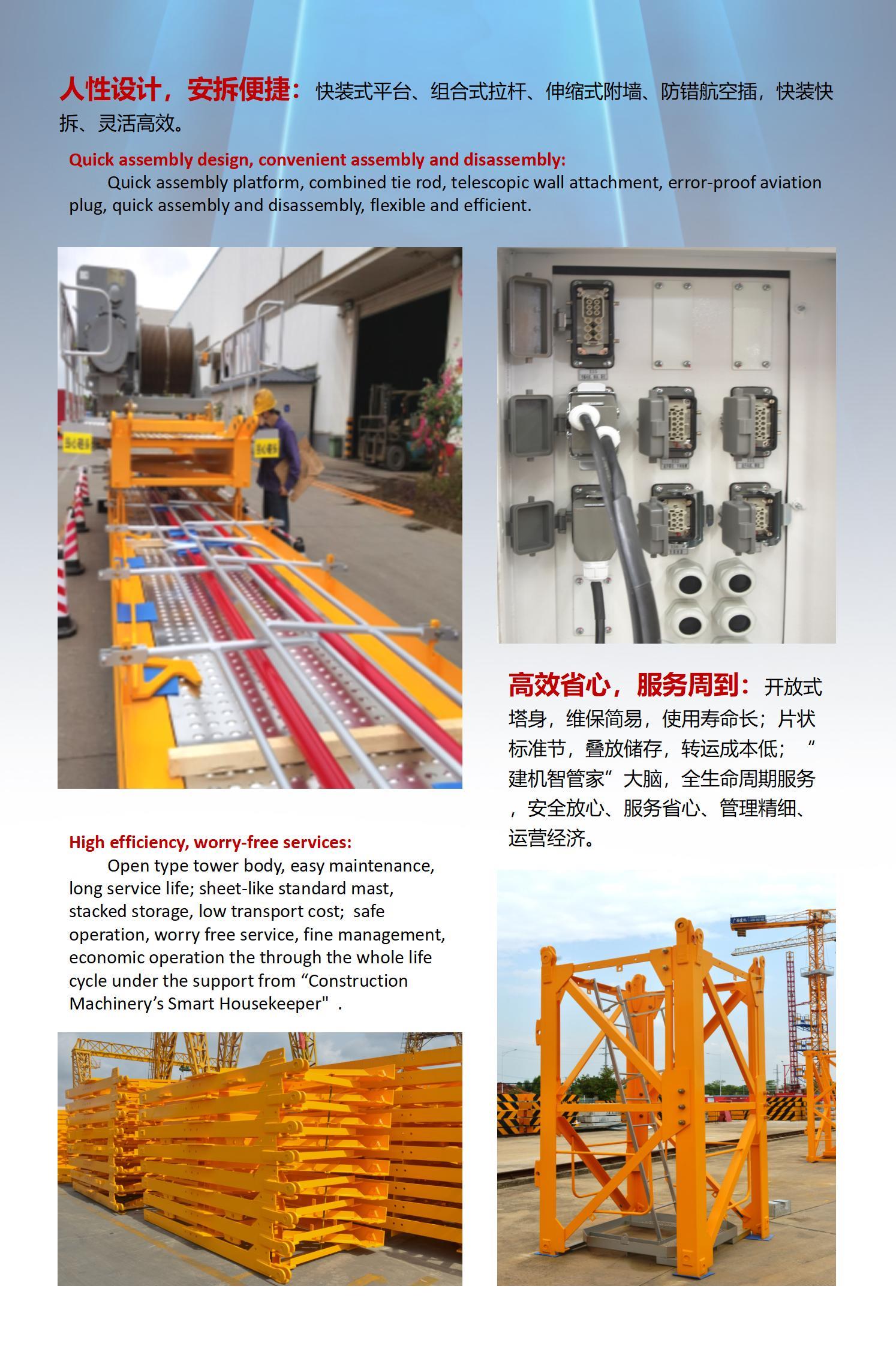

Modular StructureQuick-AssemblingPlug and Play HarnessCoastal Wind Resistant
Structural Standards
1.5 x
Static Load Coefficient
1.3 x
Dynamic Load Coefficient
Technical Specifications
Model Specifications
| Model | Max Load | Max Radius | Rated Moment |
|---|---|---|---|
| N6012 | 6 t | 60 | 800 kNm |
| N6015 | 6/8 t | 60 | 1250 kNm |
| N6018 | 8 t | 60 | 1250 kNm |
| N6515 | 8/10 t | 65 | 1600 kNm |
| N6518 | 10 t | 65 | 1600 kNm |
| N7017 | 10 t | 70 | 2000 kNm |
| N7027 | 10/12 t | 70 | 2500 kNm |
| N7527 | 18/20 t | 75 | 3150 kNm |
| N7535 | 20 t | 75 | 3150 kNm |
| N8050 | 32 t | 80 | 6300 kNm |
