Flat Top Tower Crane
This flat top tower crane is designed for efficient and safe lifting operations at construction sites. Its modular design allows for easy assembly and disassembly.
Technical Specifications
Overview

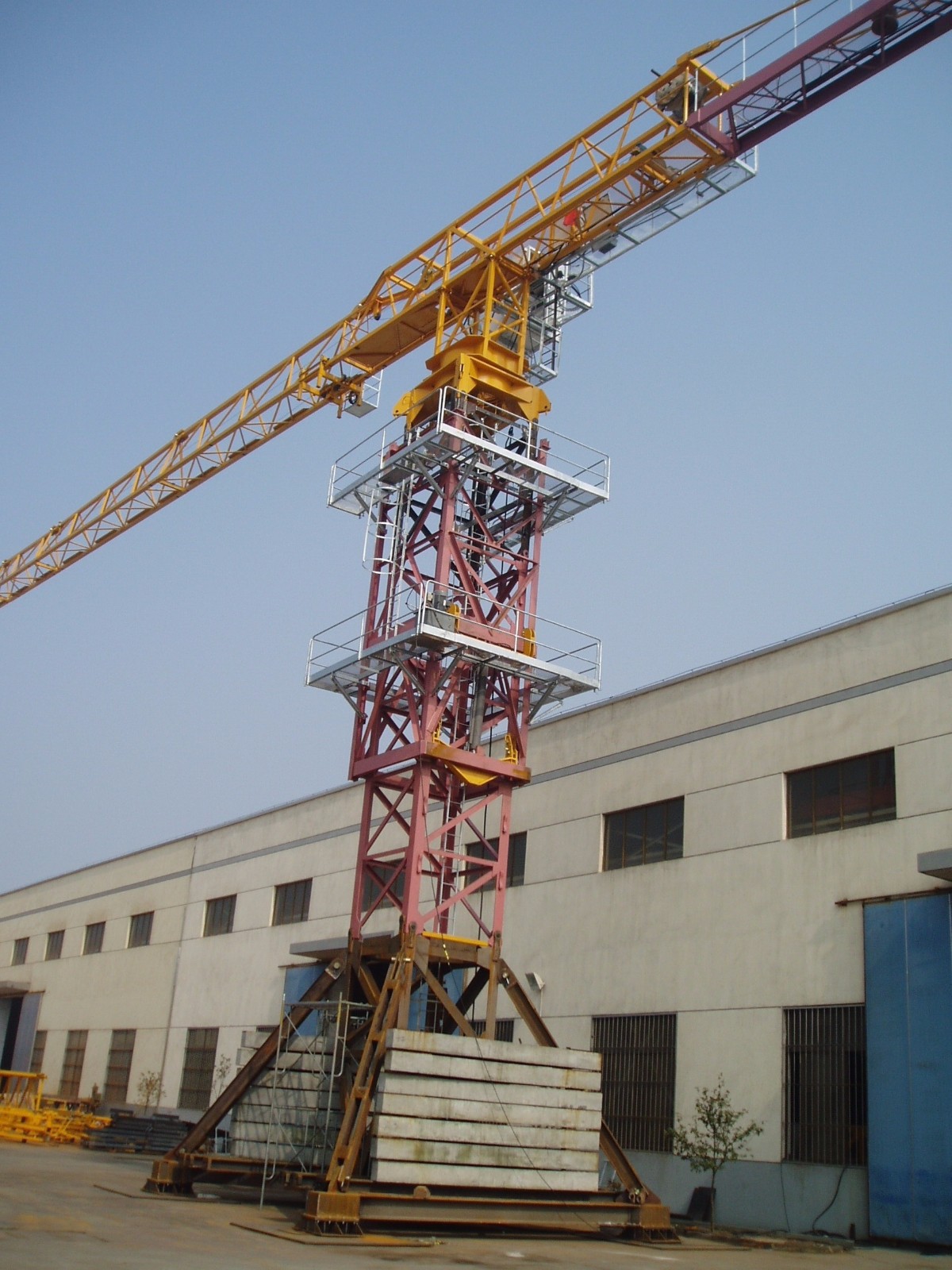

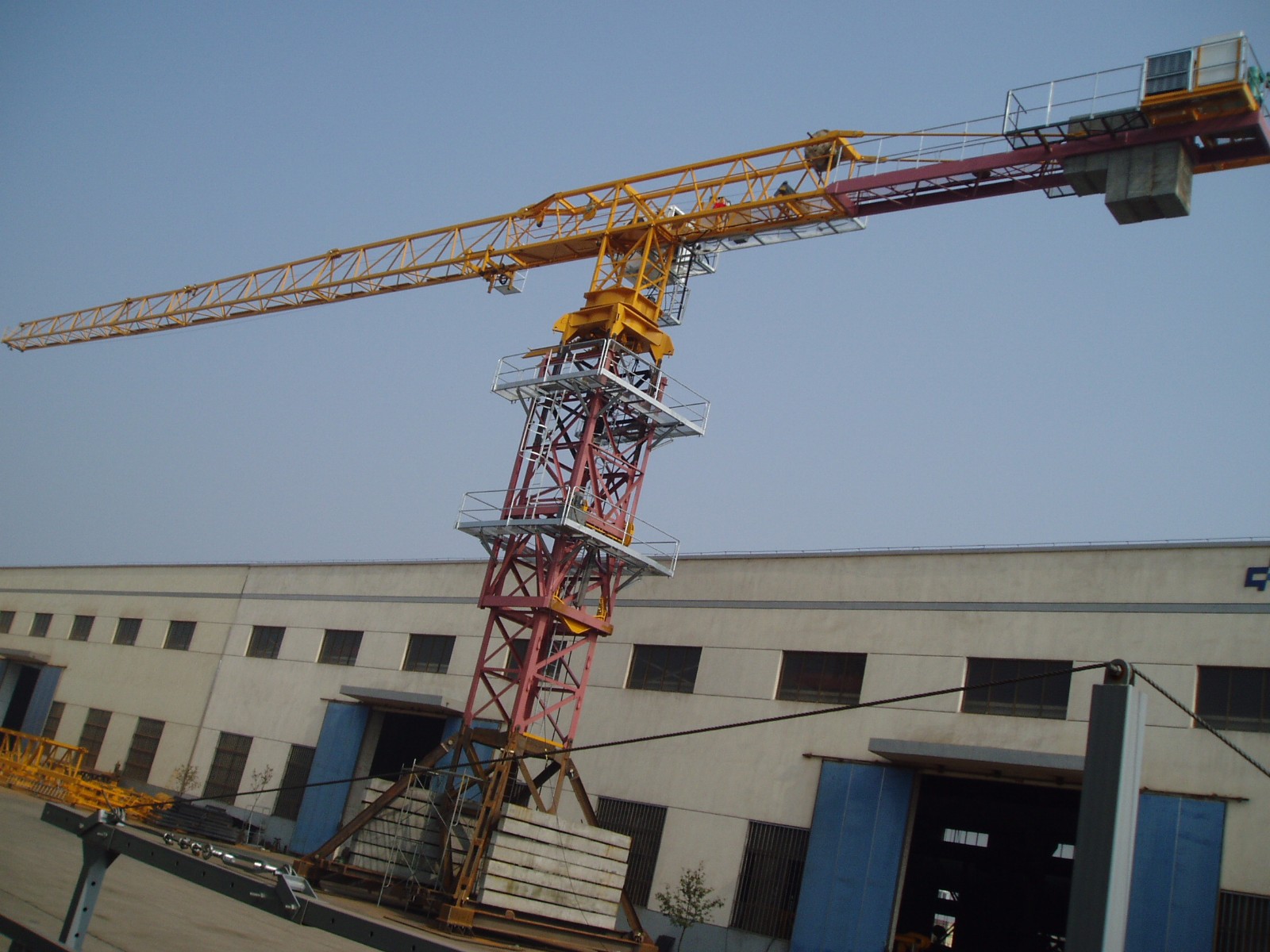

TCP7021 Flat Top Tower Crane
The TCP7021 is a high-performance flat top tower crane engineered for efficient material handling on demanding construction sites. Featuring a modular design that facilitates easy assembly and disassembly, this crane minimizes downtime and transportation costs. Its robust steel structure and advanced control systems ensure stability, precision, and safety during heavy lifting operations, making it an ideal choice for high-rise buildings and large-scale infrastructure projects.
Performance Metrics
Max Lifting Capacity
12 t
Max Capacity
2.1 t
Tip Load at 70m
Working Range
- 30
- 40
- 45
- 50
- 55
- 60
- 65
- 70
Dimensions and Height
Height Specifications
50 m
Independent Height
200 m
Max Height with Attachment
- Mast Section Size (L×W×H)
- 2×2×3 m
Technical Mechanisms
Hoist Mechanism Performance
| Falls | Lifting Capacity (t) | Speed (m/min) |
|---|---|---|
| 2 | 0-3 / 0-6 | 0-85 / 0-42.5 |
| 4 | 0-6 / 0-12 | 0-42.5 / 0-21.2 |
Drive Motors
| Mechanism | Model | Power |
|---|---|---|
| Hoist | YZPBF250M1-4 | 45 KW |
| Trolleying | YPBE132S-4 | 5.5 KW |
| Slewing | YTW132M-4 | 7.5 KW |
Electrical and Environment
Power Supply Requirements
220KVA (Generator)235KVA (Transformer Booster)
- Working Temperature
- -40 to +60 °C
- Electrical Parameters
- 380V Rated Voltage150A Rated Current50mm2 Cable
