Technical Specifications
Product Overview

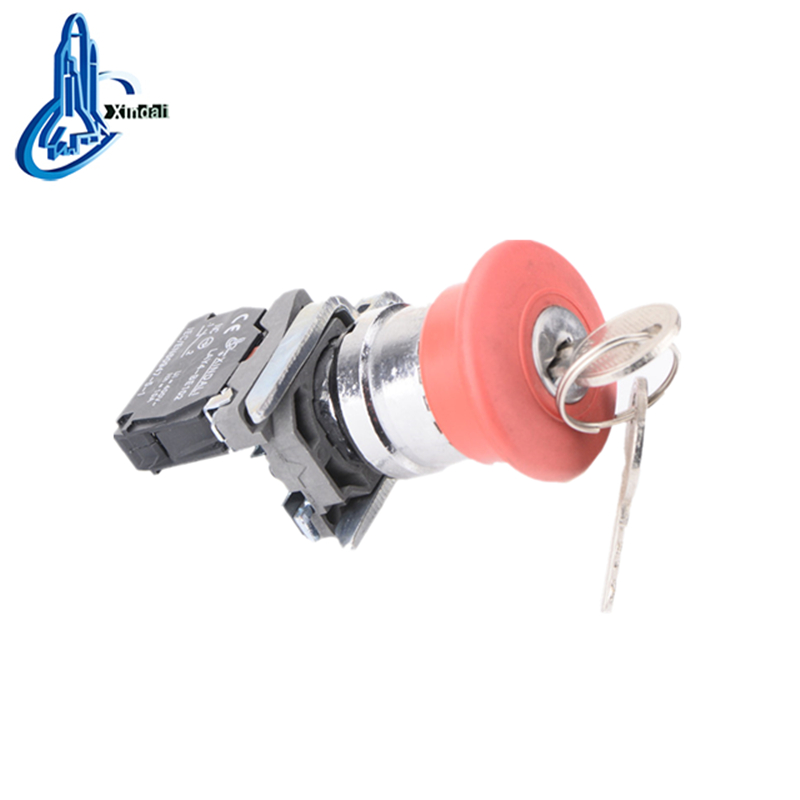

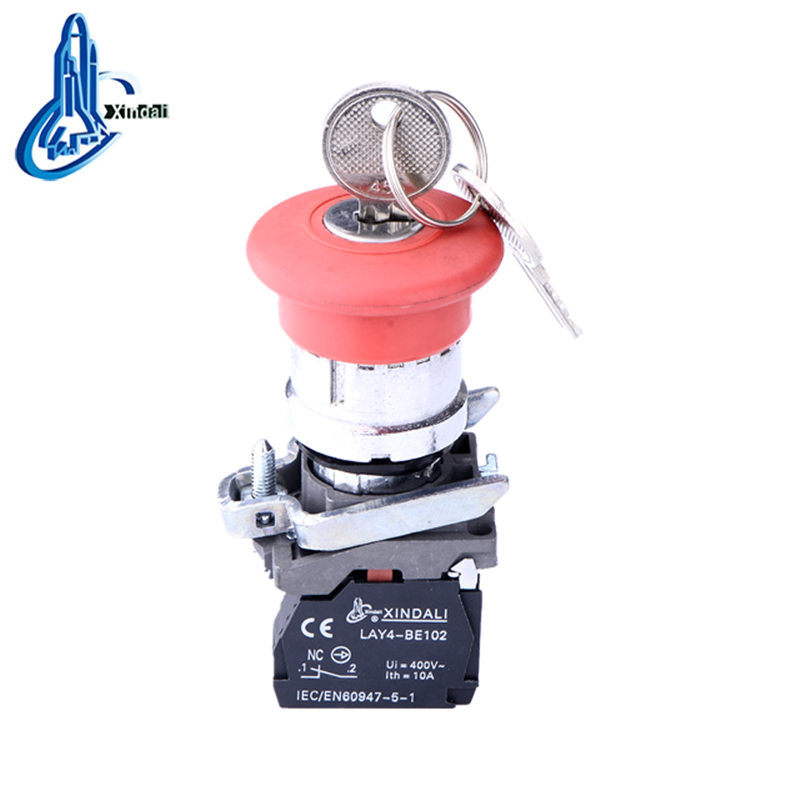

Emergency Stop Push Button Switch
This emergency stop mushroom push button switch is engineered for critical safety applications in industrial control circuits. Featuring a robust key-release mechanism, it ensures that once an emergency stop is activated, the system cannot be restarted without authorized key access. Built with high-grade materials and compliant with international electrical standards, it provides reliable interruption of AC and DC circuits.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- PF Withstand Voltage
- AC 2.5KV/min
- Voltage Wave
- ±20%
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
500,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Design & Compliance
Compliance Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001RoHSUL

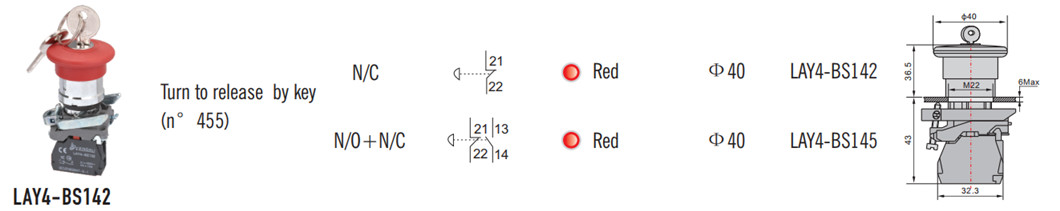

- Mounting Hole Diameter
- 22 mm
- Mushroom Head Diameter
- 40 mm
