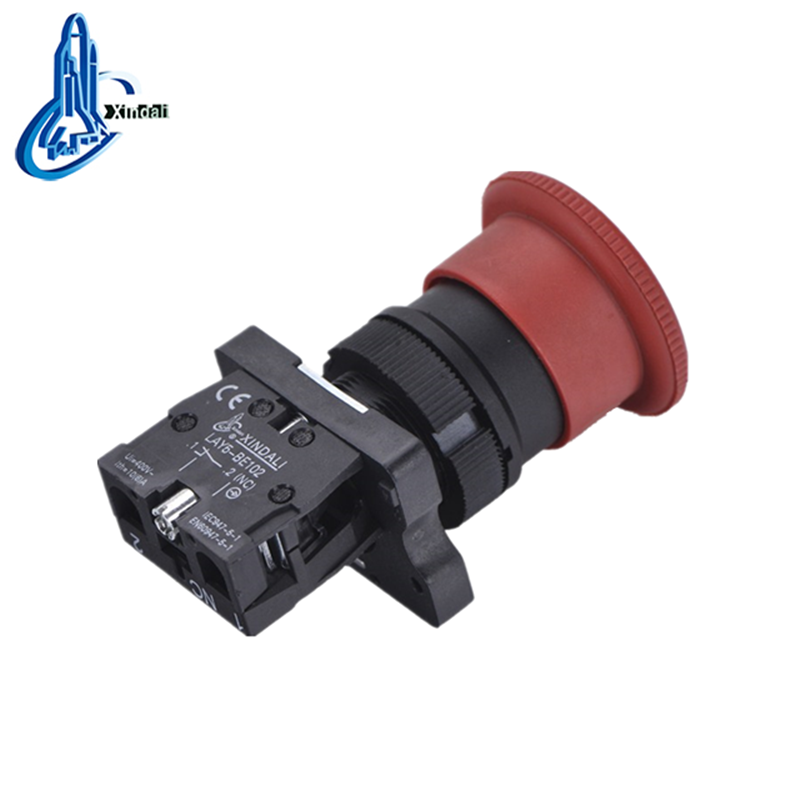

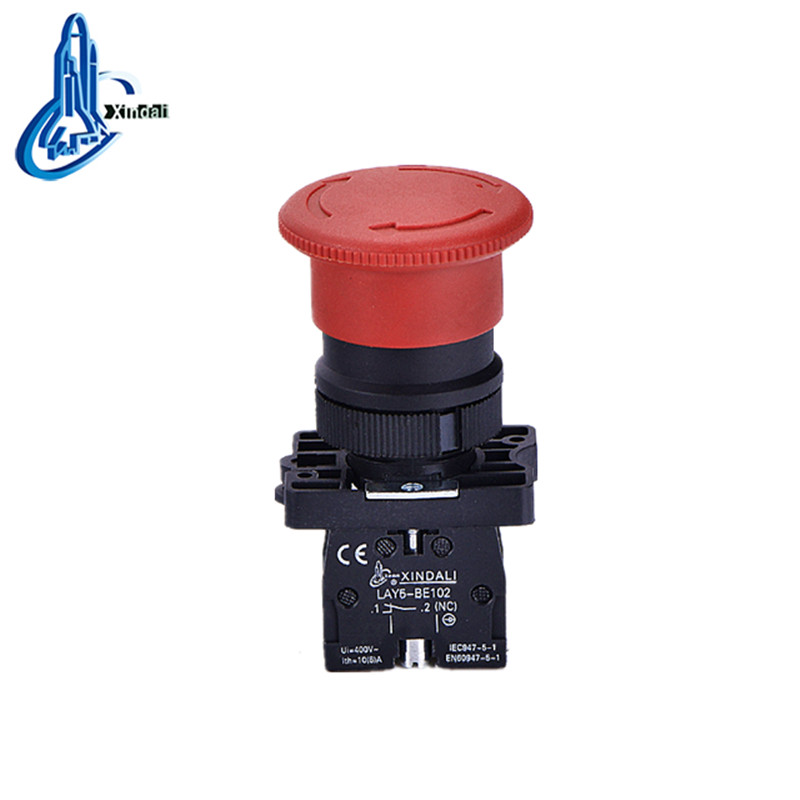

Emergency Stop Push Button Switch with 40mm Mushroom Head
This emergency stop push button features a 40mm mushroom head and a turn-to-release mechanism. It is designed for use in industrial control panels and machinery to provide a reliable emergency stop function.
Technical Specifications
Overview
Industrial Emergency Stop Solution
The LAY5-ES542 is a robust emergency stop push button switch designed for critical safety applications in industrial control systems. Featuring a highly visible 40mm red mushroom-shaped head, it ensures immediate and reliable shutdown of machinery or processes. The device utilizes a secure turn-to-release mechanism, preventing accidental resets and ensuring a deliberate safety action.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Mechanical Life
- 1,000,000 operations
- Electrical Life
- 500,000 operations

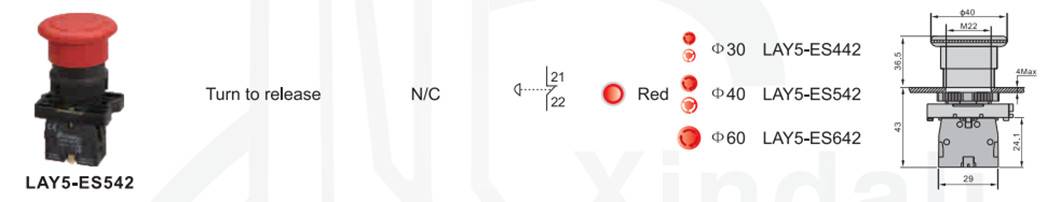

Design & Construction
- Mushroom Head Diameter
- 40 mm
- Reset Method
- Turn-to-release
- Mounting Hole Diameter
- 22mm
Certifications & Compliance
- Certifications
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Performance Metrics
Operational Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Current Rating
